RRP
Regular price £65.09inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

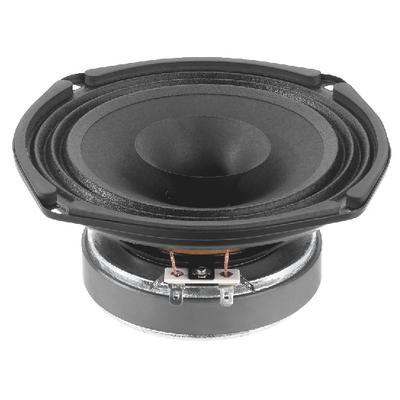

Full range speaker, 25 W, 8 Ω
Dual cone
Very wide bandwidth and linear reproduction
High efficiency
For any PA application up to hi-fi
Technical specifications SP-155X
SP-155X
Impedance (Z) 8 Ω
Frequency range f3-20,000 Hz
Resonant frequency (fs) 70 Hz
Power rating (RMS) 25 W
Peak music power output (MAX) 50 W
SPL 93 dB/W/m
Suspension compl. (Cms) 0.75 mm/N
Moving mass (Mms) 6.5 g
Mech. Q factor (Qms) 2.87
Electr. Q factor (Qes) 0.88
Total Q factor (Qts) 0.67
Equivalent volume (Vas) 14 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 4.60 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1 mm
Eff. cone area (Sd) 117 cm2
Magnet weight 380 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 146 mm
Mounting depth 69 mm
Mounting hole diameter Ø 158 mm
Hole spacing X-axis 111 mm
Hole spacing Y-axis 111 mm
Dimensions Ø 155 mm x 75 mm
Outside diameter Ø 170 mm
Width Ø 155 mm
Depth 75 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.14 kg
Packing unit 1
Type of speaker 6"
Packing dimensions (W x H x L) 0.16 x 0.08 x 0.16 m
Gross weight 1.203 kg
Net weight 1.141 kg
