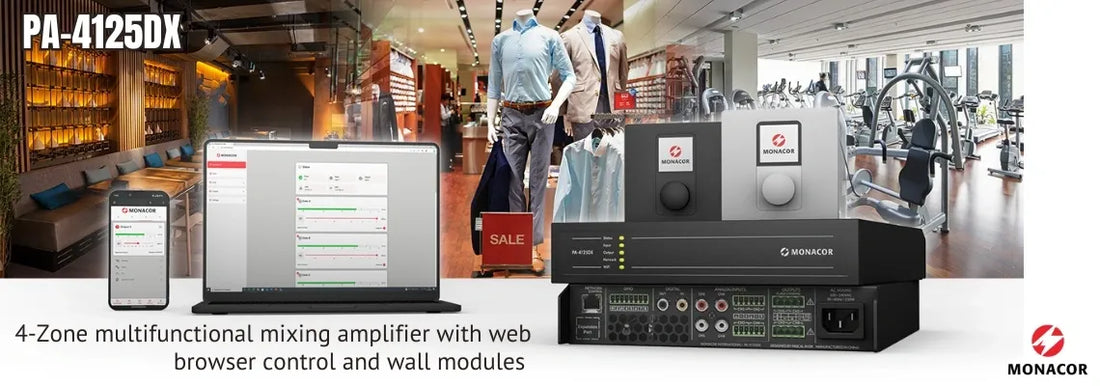

Introducing the new PA-4125DX from Monacor, a 4-zone multifunctional mixing amplifier with additional functions powered by PASCAL.

For your multi-room projects, you can now rely on the versatile PA-4125DX mixing amplifier (powered by PASCAL) - including Class D technology with DSP and a graphical HTML5 user interface for convenient operation via web browser. The amplifier provides sufficient power with an output power of either 4 x 125 W (4 or 8 ohms) or 2 x 250 W (100 volts).

PA-4125DX is a mixing amplifier for versatile sound reproduction applications. It offers four outputs for low-impedance speakers. Alternatively, two of these outputs can be combined to one output for 70 V/100 V speakers (bridge mode). The integrated signal processor is controlled via an HTML5 user interface that can be accessed by means of a standard web browser Network connection is possible via Wi-Fi or cable.

4-zone multifunctional mixing amplifier, class D technology with DSP and professional features for general multi-room PA applications. Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

The amplifier comes with a graphical HTML5 user interface for configuring and controlling the signal processor, which can be accessed using a standard web browser on a computer or mobile device: For each output, corrections for adaptation to the sound reproduction area (e.g. equalizer, signal delay) can be made separately. In addition, speaker-specific settings (e.g. level limiting, correction filter, signal delay) can be made for each output. These settings can be saved as “Speaker Presets” and managed in “Speaker Libraries” for later use.
