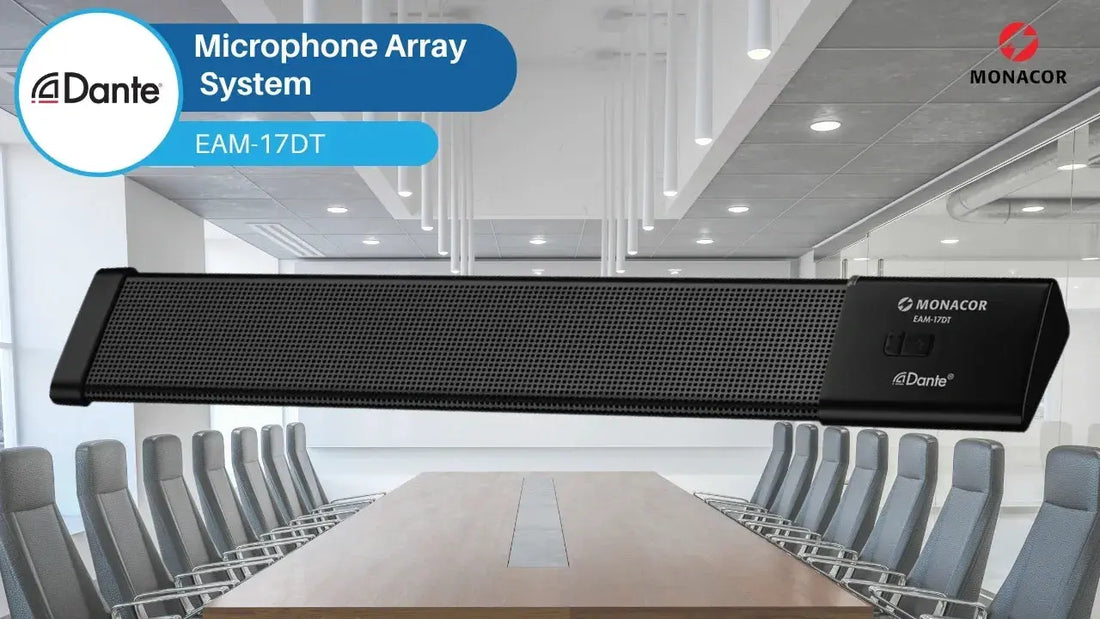

The EAM-17DT Microphone Array System from Monacor adopts a metal streamlined desktop design, which is both stylish and excels in performance. It features a unique microphone array technology and an integrated microphone module, which improves the range and quality of the array microphone and ensures that the speaker is clear and defined.
Key Features:
Thanks to the unique microphone module circuit design the EAM-17DT has a pickup distance of 80cm and the pointing characteristics are significantly improved compared with a general cardioid microphone.
The EAM-17DT also features radio frequency (RF) shielding technology that provides outstanding protection against radio and mobile phone interference.
With Dante protocol and PoE power supply the EAM-17DT can be combined with other Dante devices and is ideal for conferences, lectures and recordings
- Back electret (array with 17 cartridges)
- Supercardioid polar pattern
- Silent electronic push-button
- Selectable operating modes: PTM, PTT, ON, OFF
- Frequency response: 20-20000Hz
- Input impedance: 2.2KΩ
- Sensitivity: -11dB at 1KHz@1Pa
- Signal to noise ratio: 65dB at 1KHz
- Maximum input level: -14dBA at 1KHz@1Pa
- Pickup distance: 80CM
- Port: RJ45
- Power supply mode: POE IEEE802.3
- Power consumption: 2.3W
- Weight: 350g
- Dimensions: 320mm x 60mm x 31mm
- DANTE network: RJ45 connector, CAT5 or CAT6 network above 100Mbps .
