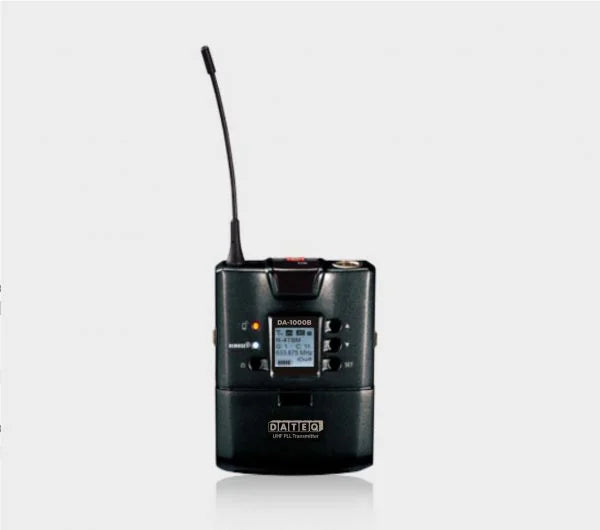

The DATEQ DA-1000B/6 is a professional UHF PLL diversity beltpack transmitter from the 1000 Series wireless microphone system. It is designed to offer maximum flexibility and reliability for various professional audio applications, especially when combined with headset, lavalier, or musical instrument microphones.
Wide Frequency Range & Selectability: Offers 2400 to 3000 selectable frequencies within the UHF 614–650 MHz band, giving installers immense flexibility in frequency coordination.
PLL Synthesized Tuning: Utilizes Phase-Locked Loop (PLL) synthesized control for stable and precise frequency tuning.
Remoset ID Pairing: Allows for quick and easy synchronization between the transmitter and the receiver unit.
High Channel Density: Pre-sets include 15 groups, each with up to 63 compatible channels, simplifying setup for multi-microphone systems.
Adjustable RF Output: The transmission power can be adjusted between "Low" and "High" settings, allowing users to optimize battery life or increase range as needed.
Durable Design: Constructed with a rugged aluminum alloy chassis.
Security Feature: Includes a Lock-On function to prevent tampering or accidental changes during use.

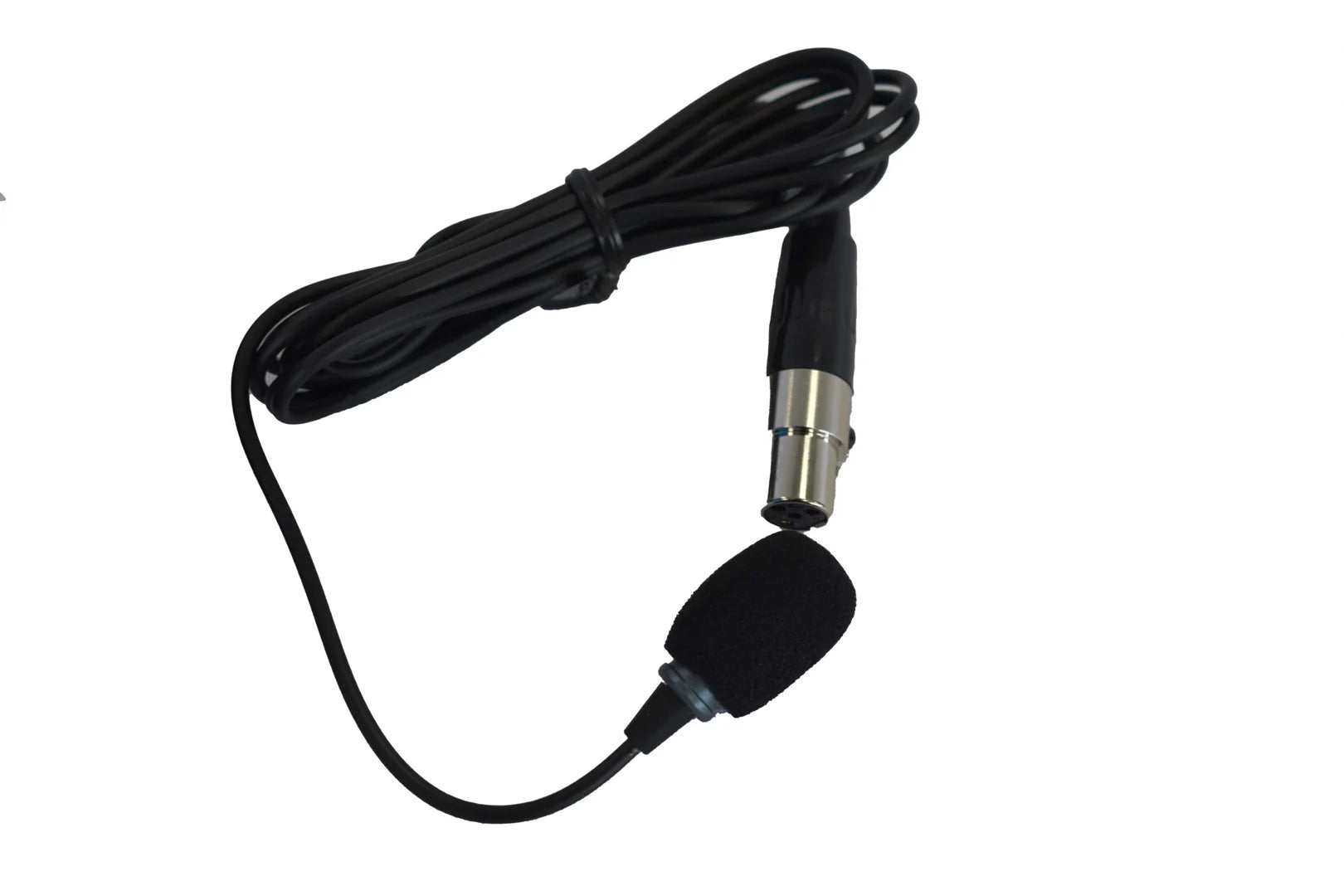

Versatile Compatibility: Can be used with various music instrument mics, headset mics, and tie-clip mics (connected via the 4-pin Mini XLR output connector).
| Feature | Specification |
| Model | DA-1000B/6 Beltpack Transmitter |
| Frequency Range | UHF 614–650 MHz |
| Bandwidth | 108 MHz Wideband |
| Selectable Frequencies | 2400 to 3000 |
| Frequency Preparation | PLL Synthesized Control |
| RF Outputs | Low / High (Adjustable Transmission Power) |
| Frequency Deviation | ± 48 KHz (Peak) |
| Audio Frequency Response | 50 Hz ~ 18 kHz |
| Spurious Emissions | < -50 dBC |
| Chassis | Aluminum alloy |

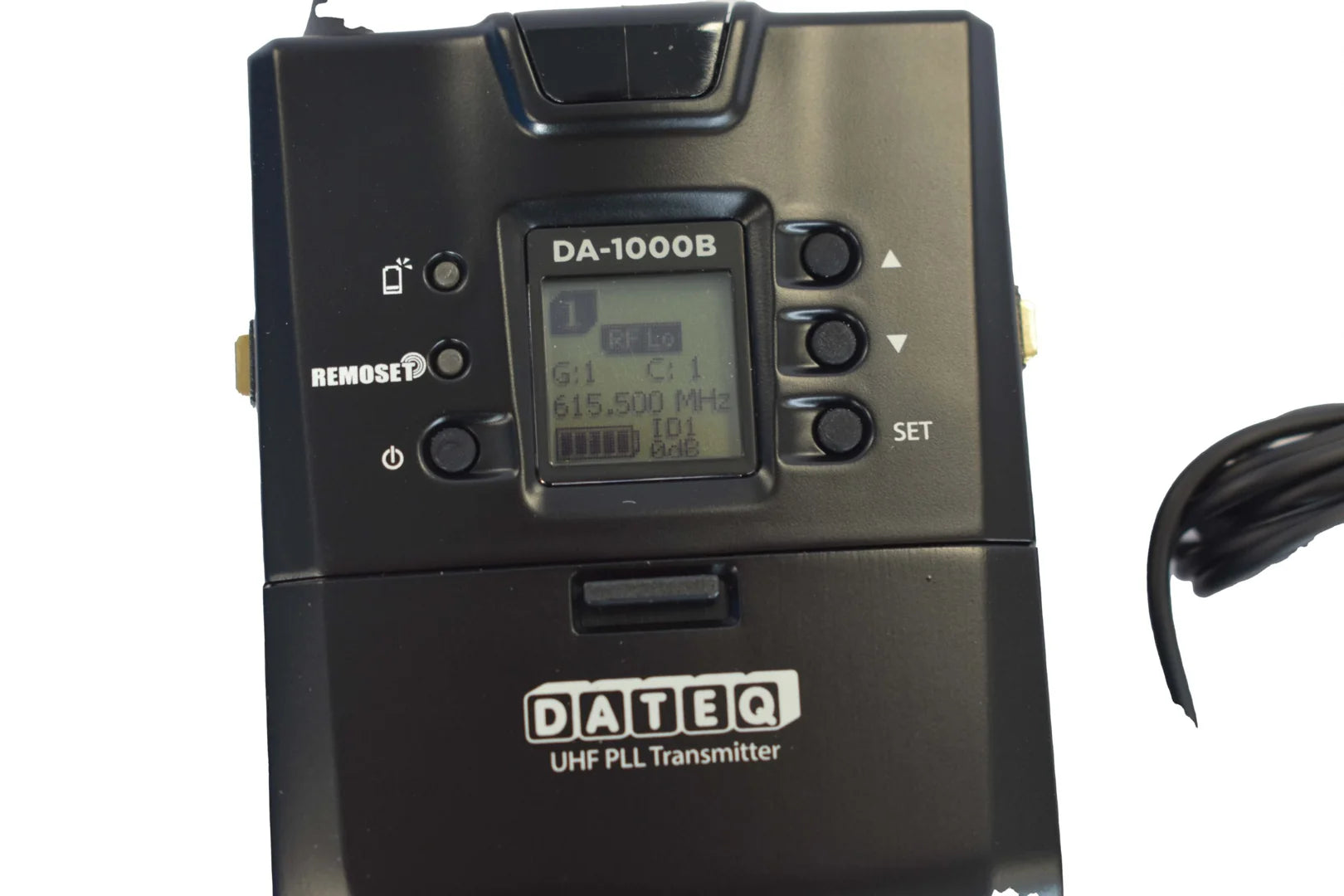

| Display | LCD (Shows Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust) |
| Controls | Power ON/OFF, AF Level, Frequency (Up/Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust |
| Output Connector | 4-Pin Mini XLR |
| Power Supply | 2 x AA (UM3) batteries |
| Dimensions | 62 mm (W) x 80.3 mm (H) x 22.6 mm (D) |
| Weight | 93 g |
