The DATEQ DA-240 is a single-channel, high-efficiency Class-D power amplifier, designed for commercial audio installations where a single, powerful output is required for Public Address (PA) or Hi-Fi systems. It is housed in a compact 1U (1 standard unit) 19-inch rack format.
Amplifier Type: Class-D with a switching power supply, providing high efficiency (up to 85%), lower power consumption, reduced heat, and an extended lifespan.
Channels & Power: 1 channel, delivering a rated power output of 240 W RMS.
Speaker Output Versatility: Offers flexible output for both high-impedance 100 V line speaker systems and low-impedance 8 Ω systems.
Standby Mode: Features an automatic standby function, which engages after one minute of no signal detection and instantly wakes up when audio is detected at the input.

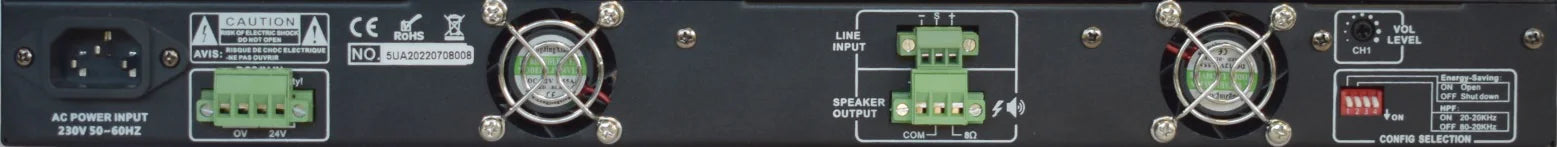

Control: Balanced input via Phoenix connectors and dedicated gain control.
Filtering: Includes built-in high-pass filters that can be enabled or disabled via dip switches.
Protection: Comprehensive protection features, including safeguards against peak, short-circuit, overload, high temperature, and DC faults.
Power Supply: Supports dual power inputs: AC (110–230 V) or DC (24 V).
| Feature | Detail |
| Product Type | 1-Channel Power Amplifier |
| Channels | 1 |
| RMS Power | 1 x 240 W |
| Speaker Output | 100 V / 8 Ω |
| Frequency Response | L/H Cut OFF: 20 Hz – 20 kHz (+1 / -2 dB) |
| Frequency Response | L/H Cut ON: 70 Hz – 10 kHz (+1 / -3 dB) |
| Input Sensitivity | 775 mV / 0 dB (10 kΩ) |
| S/N Ratio | > 80 dB |
| THD | < 0.1 % (1 kHz / -3 dBv, 100 W) |
| Power Consumption | 300 W |
| Dimensions (H x W x D) | 44 mm x 482 mm x 420 mm (1U, 19" Rack) |
| Weight | 4.2 kg |
| Cooling | Two internal fans |
| Power Supply | 110 ~ 230 V AC (50 ~ 60 Hz) or DC 24V |
