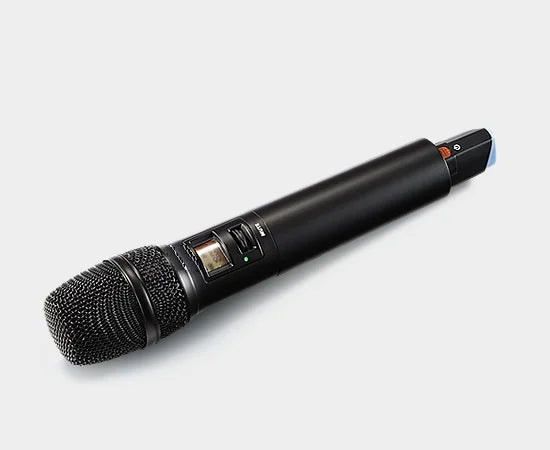

DATEQ DA-800H/6 Wireless Handheld Microphone (800 Series)
Description:
The DATEQ DA-800H/6 is an innovative wireless dynamic handheld microphone that is part of the 800 Series diversity UHF PLL system. It is designed for professional audio applications and features the advanced REMOSET U technology, allowing for quick and complete synchronization and configuration directly from the receiver unit. This combination of robust design and smart features makes it an excellent choice for presentations, performances, and public speaking.
Key Features:
Diversity UHF PLL System: Utilizes PLL Synthesized Control for stable, clear signal transmission within the 614~650MHz carrier frequency range.
REMOSET U Synchronization: Features REMOSET U (Ultrasonic) technology, allowing the user to transfer all settings—including Frequency, Group/Channel, Sensitivity, and RF Power—to the transmitter simply by pushing a button on the receiver.
Full Function Setting: While REMOSET U simplifies setup, the microphone also allows for manual setting adjustments directly on the transmitter.
Intelligent Power Management: Includes an Auto Power Off feature that can be set to 10, 30, or 60 minutes, which helps save battery life and prevent over-discharge.
Battery Saving Features: Built-in recharging circuit and connector (for system upgrades). Operates on two standard AA (UM3) batteries.
User Controls & Display: Features Mute, Key Lock, and dedicated controls for all settings. Information is clearly displayed via an LCD and LED.
Adjustable RF Output: Offers Low and High RF power settings for optimized range and battery usage.
Technical Specifications:
| Parameter | Specification |
| Model | DA-800H/6 |
| Series | 800 Series (Diversity UHF PLL) |
| Frequency Preparation | PLL Synthesized Control2 |
| Carrier Frequency Range | 614~650MHz4 |
| Frequency Setting | REMOSET U (Receive)6 |
| RF Output | Low / High8 |
| Stability | <±10KHz@Fc10 |
| Frequency Deviation | ±48KHz12 |
| Spurious Emissions | <-50dBc14 |
| Functions | Mute, Auto Power Off, Sensitivity Adjust, Low Battery |
| Display | LCD + LED |
| Controls | Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock |
| Battery | UM3, AA x2 |
| Type | Handheld Dynamic Microphone |
