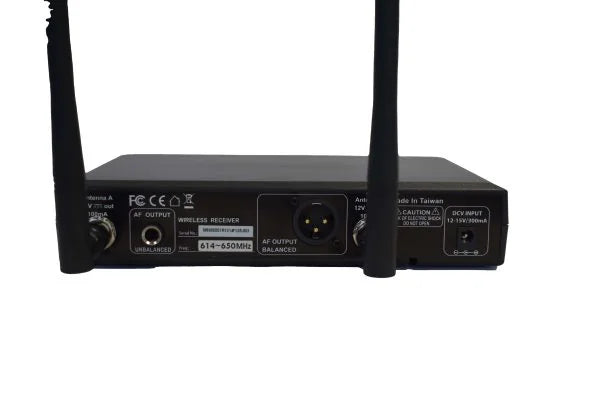

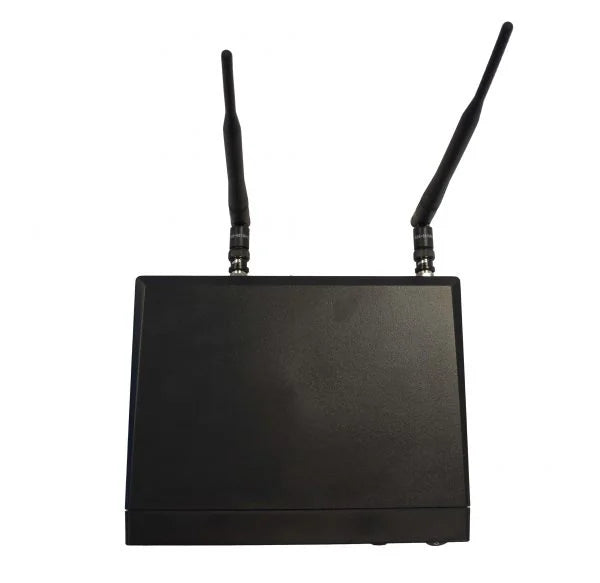

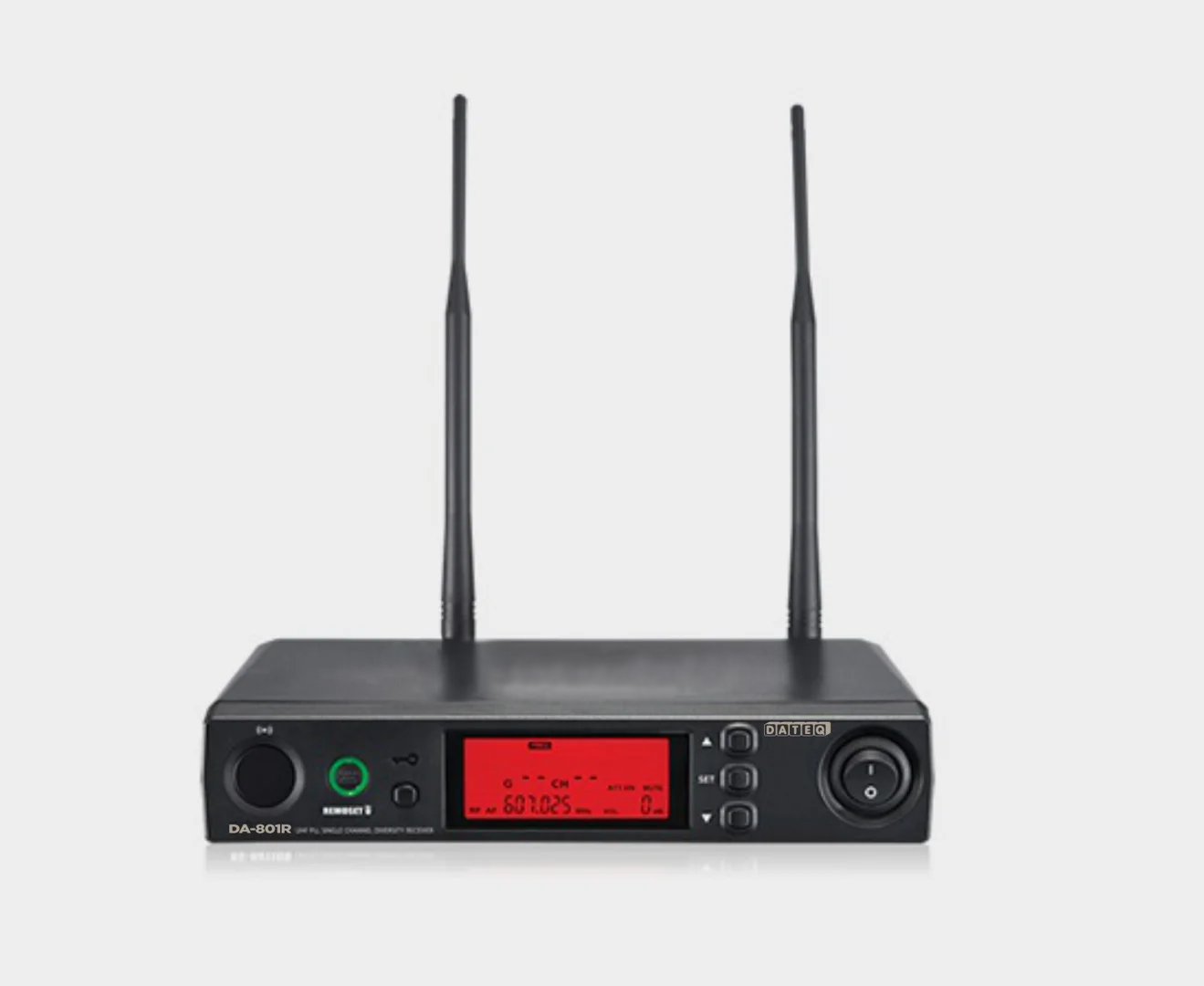

The DATEQ DA-801R/6 is a professional single diversity UHF PLL receiver from the 800 Series, designed for reliable wireless microphone performance in installations facing a limited radio spectrum. This receiver offers advanced features, exceptional audio quality, and the convenience of ultrasonic frequency synchronization.
Diversity Reception: Employs Antenna Diversity mode for improved signal stability and resistance to dropouts.
REMOSET Ultrasonic Synchronization: Features the patent-pending REMOSET U technology, allowing the receiver to send scanned channel data to a compatible transmitter with a single button push, simplifying setup.
Optimized Spectrum Use: Part of the next-generation wireless technology developed to provide more compatible channels within limited bandwidths.
Low Noise Floor: Engineered to meet critical audio demands by reducing general noise and hiss to an extremely low level.
Wide Operating Range: Capable of a 100-meter (approx. 328 ft) operation range, suitable for most applications.
| Feature | Detail |
| Frequency Range | 614–650 MHz |
| Bandwidth | 36 MHz |
| Receiving Mode | Antenna Diversity |
| Frequency Setting | REMOSET U |
| S/N Ratio | >105 dB(A) |
| T.H.D. | <0.6% @ 1 KHz |
| Frequency Response | 50 Hz ~ 16 KHz ±2 dB |
| Audio Outputs | 1 independent balanced XLR, 1 unbalanced Ø6.3mm phone jack |
| Audio Output Level | XLR: -4 dBV (Line) or -24 dBV (Mic) Phone Jack: -10 dBV |
| Display | LCD (Shows Group, Channel, Frequency, Battery Level, RF/AF Meter, etc.) |
| Dimensions (W x H x D) | 212.3 mm x 38.3 mm x 144 mm |
| Power Supply | DC 12~15 V / 300 mA |
