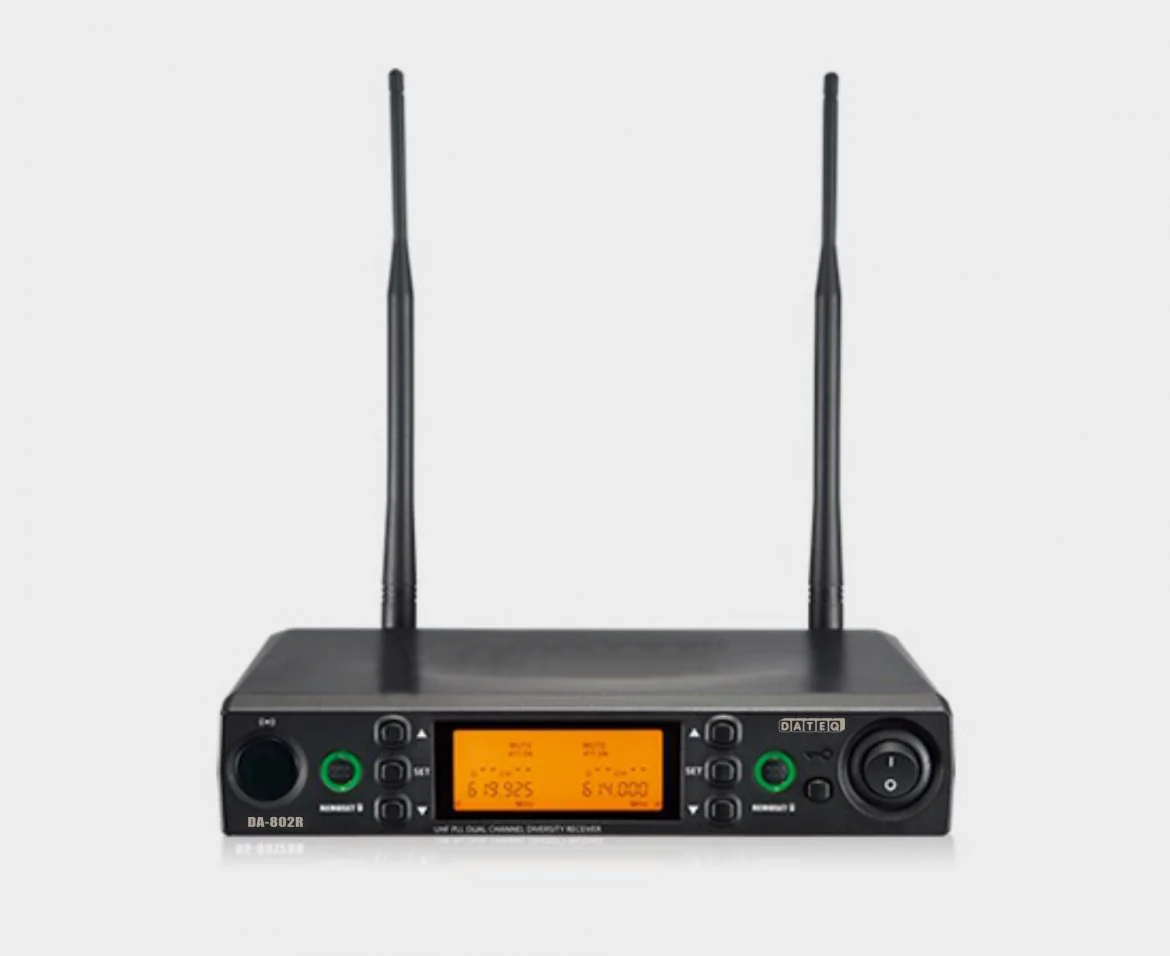

The DATEQ DA-802R/6 is a professional 800 Series double receiver (two channels) designed for use in the UHF 614–650 MHz range. It features next-generation wireless technology to maximize the number of compatible channels within limited spectrum, making it ideal for multi-channel wireless microphone systems.
Dual Channel Diversity Reception: Operates two independent channels using Antenna Diversity mode, ensuring stable signal reception and dropout prevention.
REMOSET U (Ultrasonic) Synchronization: Features the patent-pending REMOSET technology, allowing the receiver to automatically scan for clear channels and then transmit the channel data (frequency, group, etc.) to the DA-800 series transmitters (like the DA-800B/6) by simply pressing a button.
Wide Frequency Bandwidth: Operates across a 36 MHz bandwidth within the 614–650 MHz carrier frequency range.
High Audio Quality: Features a Signal-to-Noise (S/N) Ratio greater than 105 dB and total harmonic distortion (T.H.D) less than 0.6% at 1 KHz, ensuring extremely low noise and hiss.
Extensive Operating Range: Offers an impressive operation range of up to 100 meters, meeting the demands of most applications.
Professional Outputs: Provides flexible connectivity with two independent balanced XLR outputs and two unbalanced Ø6.3mm jack outputs.
| Feature | Specification |
| Model | DA-802R/6 Double Receiver (2-Channel) |
| Frequency Range | UHF 614–650 MHz |
| Frequency Preparation | PLL Synthesized Control |
| Receiving Mode | Antenna Diversity |
| Bandwidth | 36 MHz |
| Frequency Setting | Ultrasonic / REMOSET (Transmit) |
| S/N Ratio | > 105 dB |
| T.H.D | < 0.6% @ 1 KHz |
| Frequency Response | 50 Hz ~ 16 KHz ±2 dB |
| Antenna Type | BNC Socket (with Antenna Booster Power: DC12~15V/100mA) |
| Display | LCD (Shows Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter, RF Meter, Battery Status) |
| Controls | Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad |

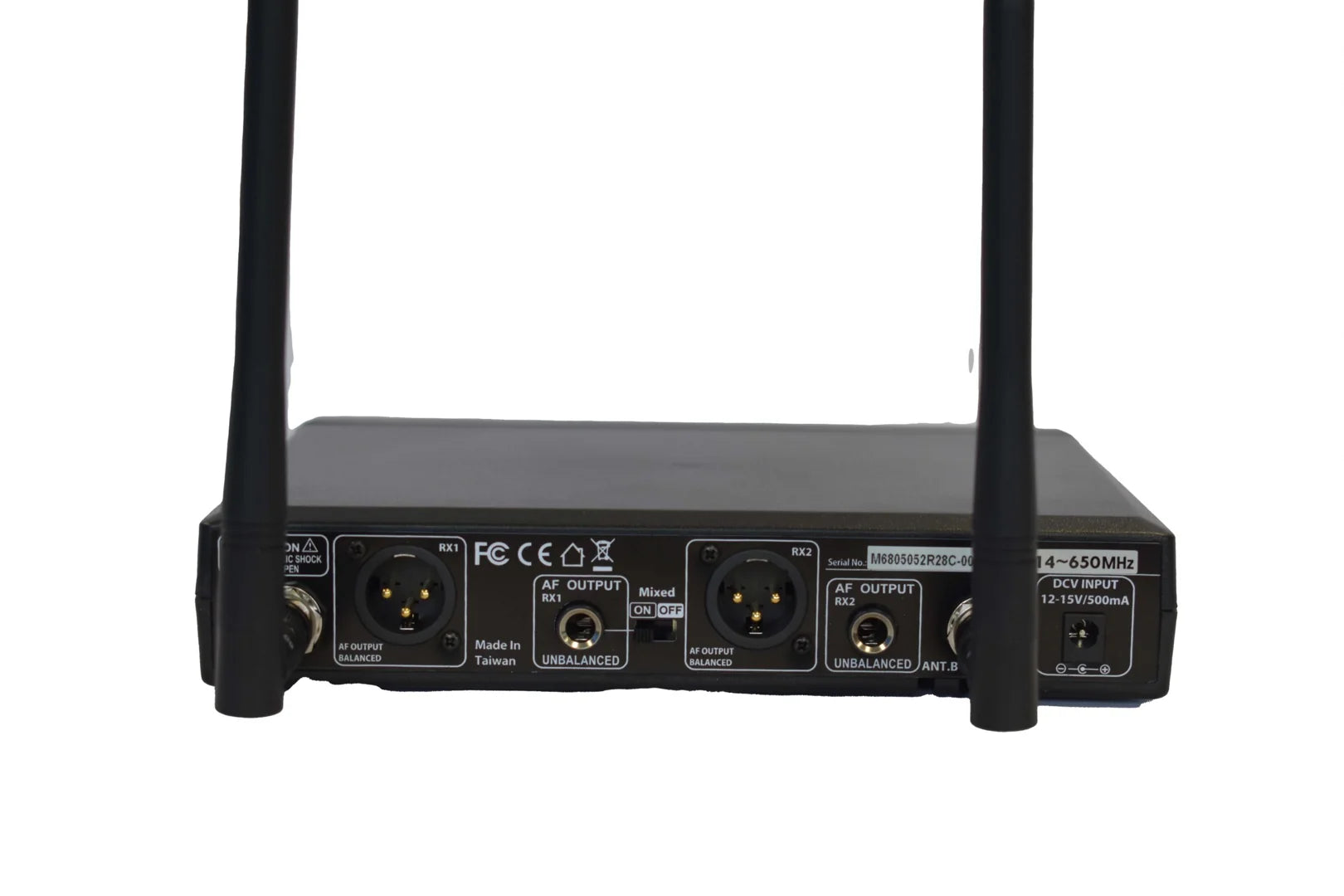

| Output Connectors | 2 independent balanced XLR and 2 unbalanced Ø6.3mm jacks |
| Audio Output Level | XLR: -4dBV (Line) / -24dBV (MIC); 6.3mm Jack: -10dBV |
| Power Supply | DC 12–15 V / 500 mA |
| Dimensions (W x H x D) | 212.3 mm x 38.3 mm x 144 mm |
