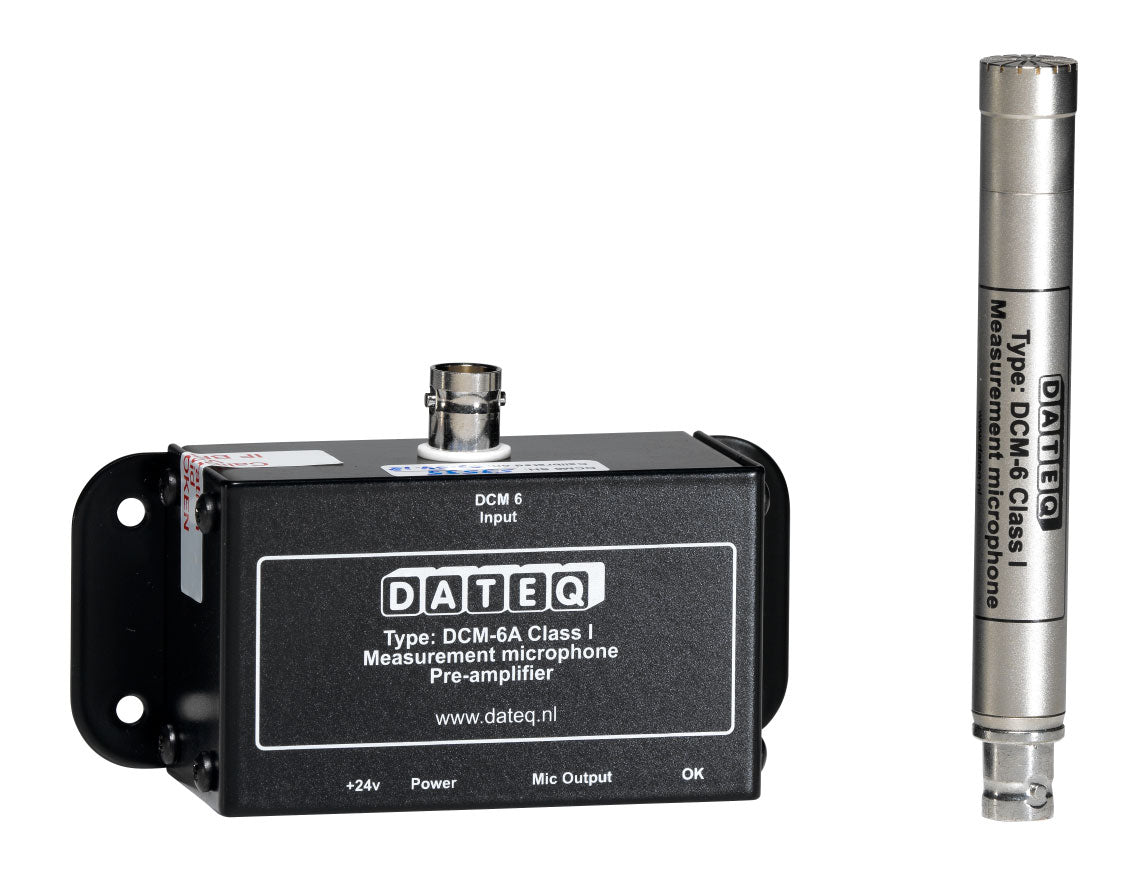

The DATEQ DCM-6 is an upgraded measurement microphone for use when Class 1 measurements are required. It is compatible with the DATEQ SPL-3, SPL-3TS, SPL-5, SPL-6, SPL-D2 and SPL-D3. The microphone supplied with these devices is the Class 2 DCM-5, so the DCM-6 is the step up where Class 1 accuracy is needed.
Class 1 measurement microphone: a 1/2 inch free-field microphone for Class 1 measurements.
Class 1 pre-amplifier: the set pairs the DCM-6 microphone with the DCM-6A Class 1 pre-amplifier.
Upgrade for the SPL range: compatible with SPL-3, SPL-3TS, SPL-5, SPL-6, SPL-D2 and SPL-D3.
Wide frequency response: 20 Hz to 16 kHz (±1.2 dB).
High sound pressure handling: distortion limit of >146 dB SPL (THD <3% at 100 Hz).
Low noise: cartridge thermal noise of <20 dBA.
| Feature | Detail |
| Type | Measurement microphone, Class 1 |
| Compatible with | SPL-3, SPL-3TS, SPL-5, SPL-6, SPL-D2, SPL-D3 |
| Diameter | 1/2 inch |
| Capacitance | 23 pF |
| Frequency Response Characteristic | Free-field |
| Open Circuit Frequency Response (±1.2 dB) | 20 Hz to 16,000 Hz |
| Open Circuit Sensitivity (dB re 1 V/Pa) | 31.6 mV/Pa (-30 dB) |
| Cartridge Thermal Noise | <20 dBA |
| Open Circuit Distortion Limit (THD <3%, at 100 Hz) | >146 dB SPL |
| Polarisation Voltage | 0 V (pre-polarised) |
| Temperature Coefficient | <0.03 dB/K |
| Relative Humidity Coefficient | <0.5 dB/100% RH |
| Static Pressure Coefficient | <0.5 dB/kPa |
