Each input channel can process three different audio signals. With the push of a button, you can switch between the microphone or the line inputs. When the line inputs are active, a second button can be used to switch between line-1 and line-2. Inputs 3, 4 and 5 are equipped with an RIAA correction filter so that turntables can be connected directly to them. All this means that a total of 21 audio inputs are available! A characteristic for a mixing console of this quality are the balanced outputs on XLR connectors. In addition to these balanced outputs, unbalanced outputs are also available on cinch connectors.

Another practical feature of this mixing console is the stereo effect send output. Each input module can be set whether or not to send its signal to the effect output. This means that the effect output can also be used as a clean feed output.

The large 2×40 segment VU meter is switchable between master and PFL. All switches in the master section have an LED indication. Each microphone channel has a switchable 48V phantom power.

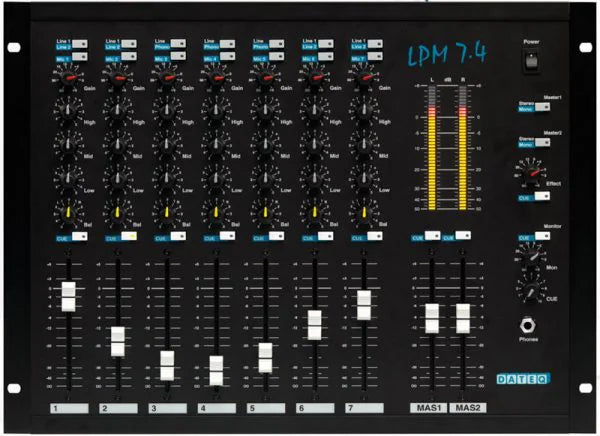

Due to the internal modular structure, the extremely solid construction and the use of high-quality components, the LPM7.4 has become a high-quality mixing console that is extremely suitable for 'on the road' work. Naturally, the LPM7.4 has all the features of a DATEQ mixing console, ensuring years of enjoyable mixing.

Due to its universal design, the LPM7.4 can be used in a wide variety of applications, such as an AV post production, a discotheque or a multifunctional audio installation.
