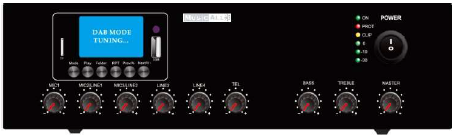

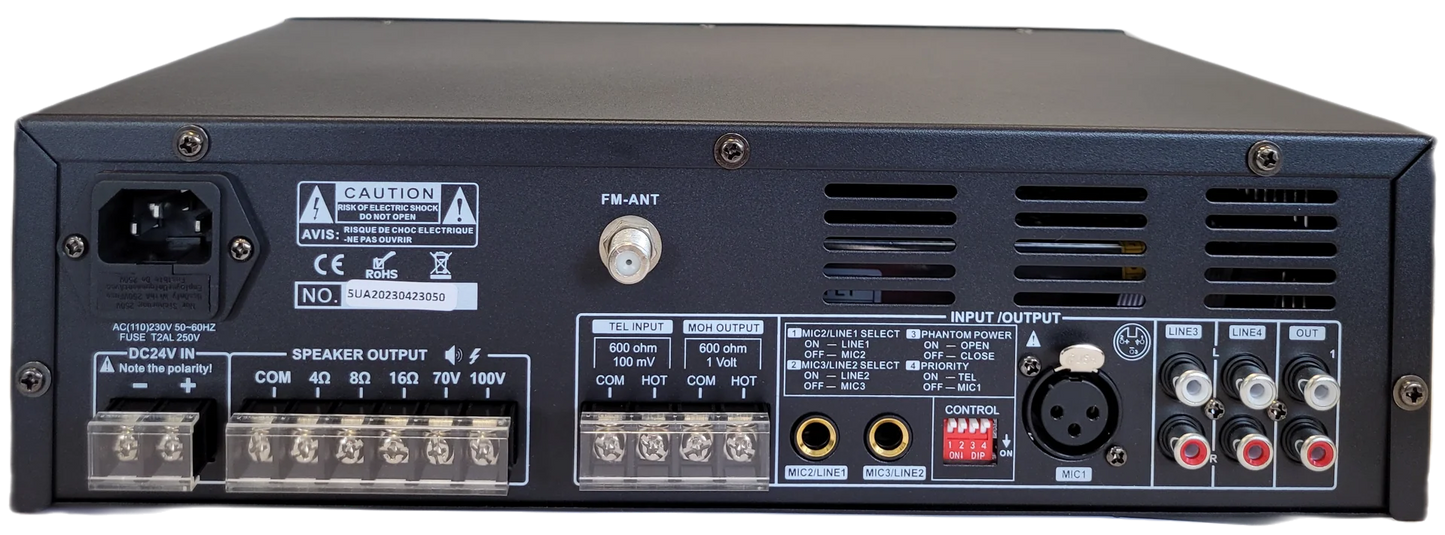

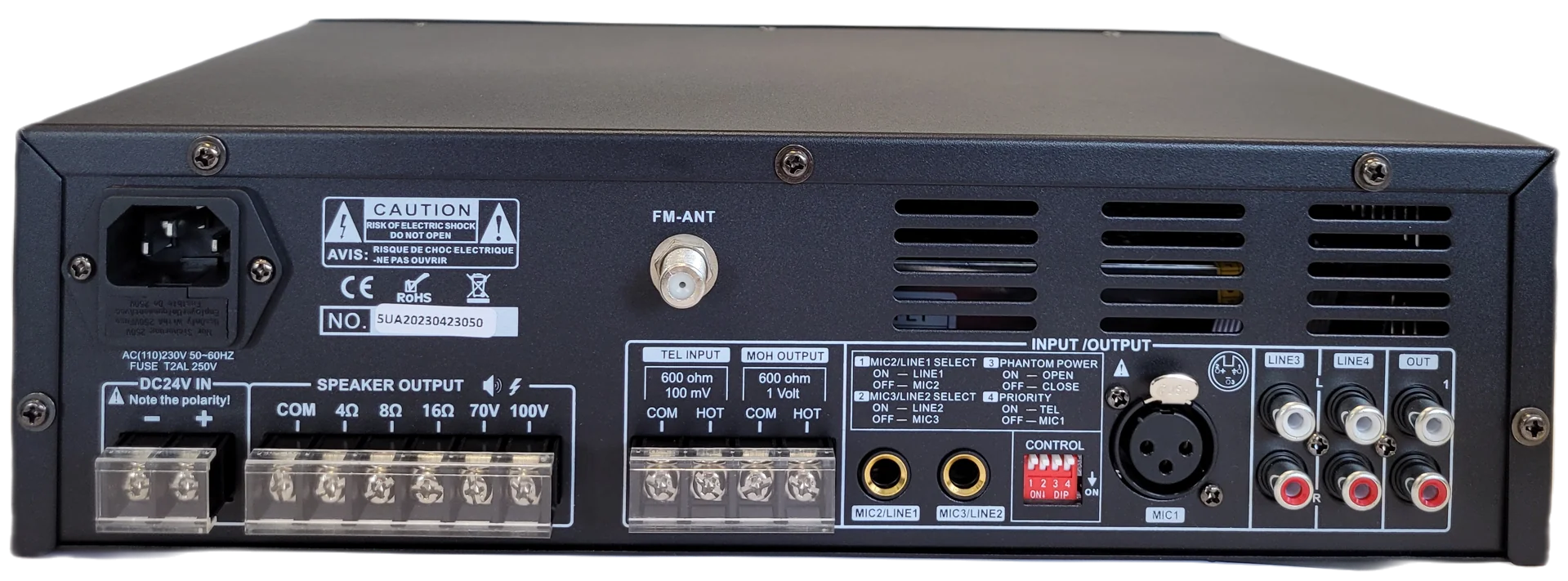

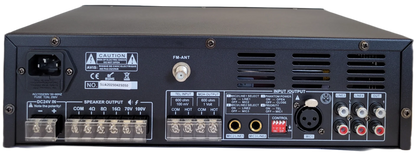

The DATEQ MA-120D is a versatile tabletop mixing amplifier designed for commercial audio installations, providing both amplification and source integration in a single unit. It is primarily built for 100V and 70V line applications but also supports low-impedance speakers.
Product Type: Tabletop Mixing Amplifier with Media Player.
Rated Power Output: 120 W RMS (Root Mean Square).
Speaker Output: Highly flexible with support for:
100 V line
70 V line
4-16 Ω low-impedance speakers
Integrated Media Player: Built-in audio source capabilities include:
MP3/USB/SD (media playback)
FM/DAB+ (Digital Audio Broadcasting plus FM radio)
Bluetooth connectivity
Mixing Inputs: Comprehensive input panel for various sources:
3 x Mic/Line inputs
2 x RCA Line inputs
1 x TEL input (for priority telephone/emergency announcements)
1 x XLR input with switchable +48V phantom power (for condenser microphones)
Outputs: 1 x RCA line output.
Protection: Equipped with protection against short-circuit, clip, overload, and high temperature.
Power Supply: Operates on standard 230V AC or 24V DC power supply.
| Feature | Detail |
| Product Type | Mixing Amplifier with Integrated Media Player |
| RMS Power | 120 W |
| Speaker Output | 100 V, 70 V, 4-16 Ω |
| Media Sources | USB/SD (MP3), FM/DAB+, Bluetooth |
| Microphone Inputs | 3 x Mic/Line, 1 x XLR (+48V Phantom Power) |
| Line Inputs | 2 x RCA Line In, 1 x TEL In |
| Line Outputs | 1 x RCA Line Out |
| Power Options | 230V AC or 24V DC |
| Form Factor | Tabletop |
