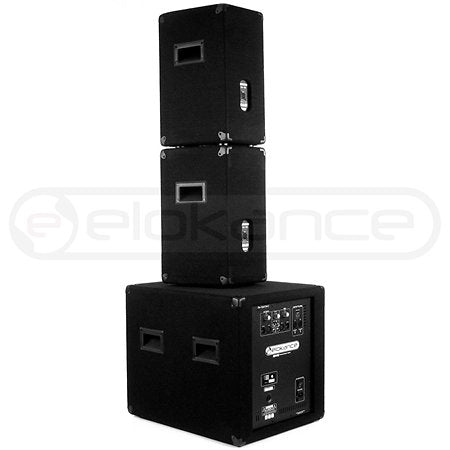

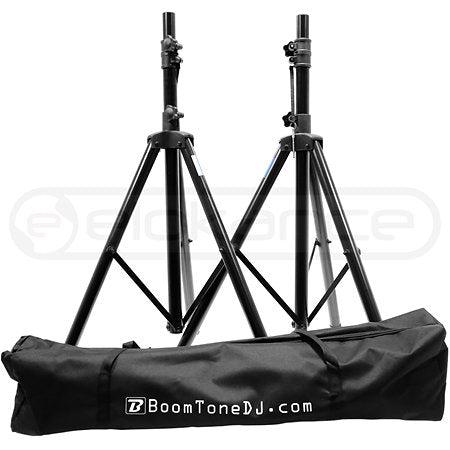

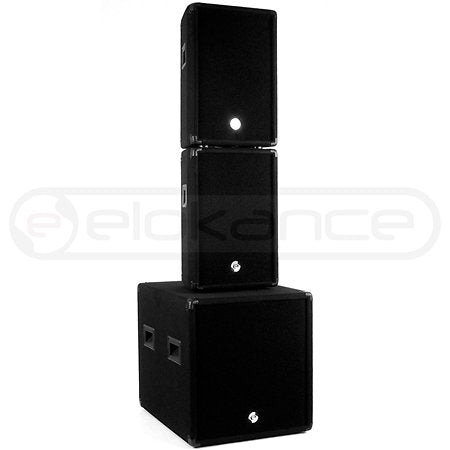

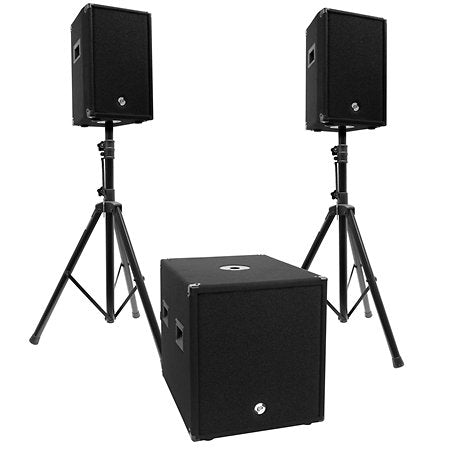

Compact and remarkably calibrated to make every frequency resonate, the Elokance 800cc 3-way speaker system combines the raw power of the Elo SUB15AC active subwoofer with the surgical precision of the ELO 10C passive speakers. The subwoofer, equipped with a 500W RMS Class D amplifier and a 15" driver, delivers deep bass down to 35Hz while powering the two satellite speakers with 2 x 150W. The ELO 10C speakers, with their 10" drivers and 1" compression drivers, sculpt the mids and highs with impressive clarity. The system comes complete with two BoomTone DJ SV-200 II stands and speakON cables
Specifications:
Series: Elo
Amplification: Class D
Power:
Subwoofer: 500 W RMS
Satellite output amplifier: 2x 150 W RMS
Speaker: ∅15" (∅38 mm)
Frequency Response: 35 Hz ⭢ 20 kHz

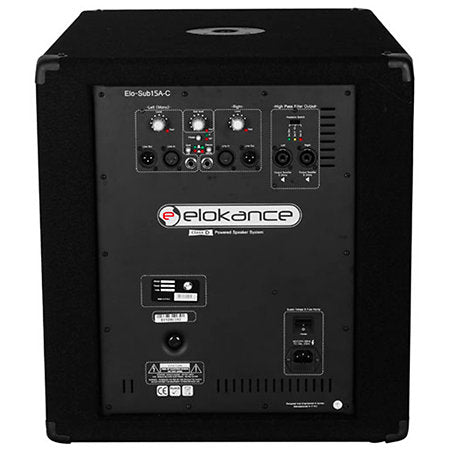

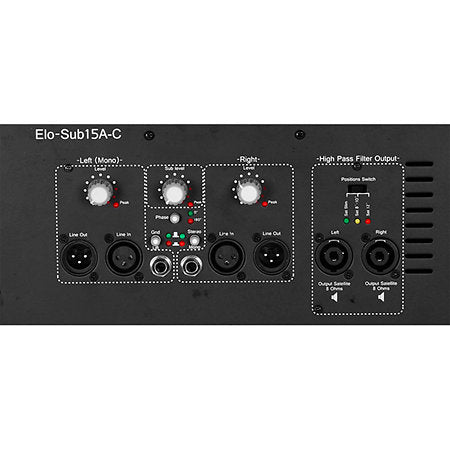

Controls: Separate Right / Left / Sub Level, Ground/Lift Selector, Mono/stereo selector for satellite outputs, Subwoofer phase selector (0°/180°)
Protections: Limiters, short circuit, overheating
Connectivity:
Inputs: XLR, 6.35 mm jack
Outputs: speakON, satellite curve selector
Construction: Universal speaker stand base (∅35 mm), 2 carrying handles on the sides, Carpet finish
Dimensions/Weight: 450 x 486 x 580 mm / 38 kg
Series: Elo
Power: 200 W RMS / 400 W max under 8Ω
Performance:
Maximum SPL: 127 dB
Sensitivity (1 W / 1 m): 97 dB
Speakers: ∅10" (∅25 cm) woofer, ∅1" (∅25 mm) compression coil
Filter Cutoff Frequency: 2.5 kHz
Frequency Response: 65 Hz ⭢ 19 kHz
Connectivity: speakON input connector
Construction: Universal speaker stand base (35 mm), Carpet finish
Dimensions/Weight: 485 x 320 x 280 mm / 12 kg
