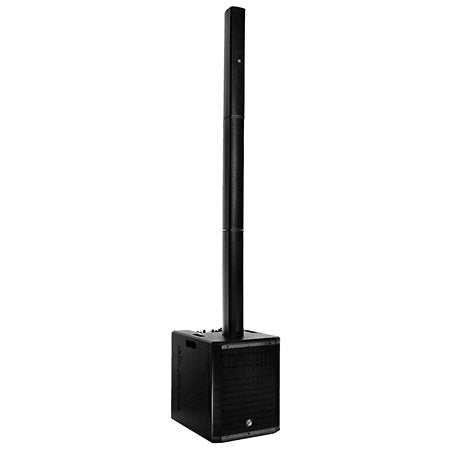

The Elokance Line Club was designed to be easy to transport, quick to assemble, simple to use, reliable, and very powerful! The system consists of a 12" active subwoofer and a tower speaker with eight 3" tweeters, powered by a Class D amplifier, covering a frequency range of 25Hz to 20kHz. It delivers wideband sound with 120° x 120° dispersion and a perfectly controlled 1000W of power.

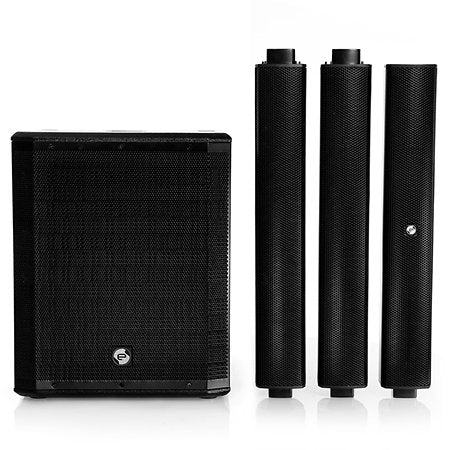

The Line Club system is made up of four components that stack with surprising ease in just a few seconds. No cables are needed; the tower components simply snap together using plug-and-play locking multi-point connectors.

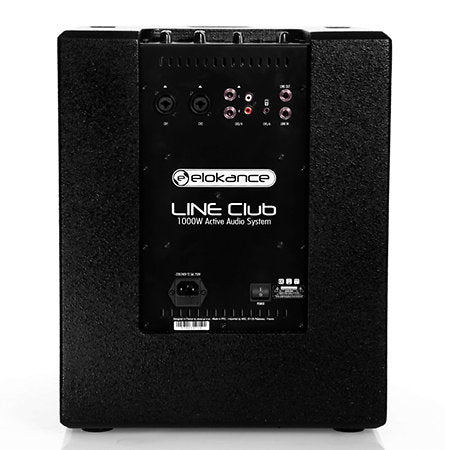

The 4-channel mixer is integrated into the active subwoofer, offering mic/instrument inputs on channels 1 and 2 with XLR/jack combo connectors, 6.35mm jack and RCA inputs on channels 3 and 4, and a 3.5mm stereo mini-jack input for connecting your smartphone, tablet, or audio player on channels 5 and 6. A 6.35mm Link In/Link Out jack allows you to daisy-chain multiple sound systems.

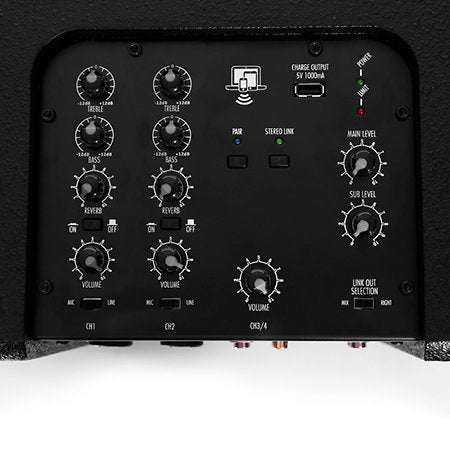

All the controls for adjusting and customizing your sound are located on the top of the subwoofer. The level can be adjusted independently for the satellite and subwoofer sections. On the first two channels (mic/instrument inputs), you can fine-tune the reverb, treble, and bass level. A USB port allows you to charge a device at 5V 1000mA, so your smartphone won't die mid-song!
The Elokance Line Club Line Array sound system also integrates Bluetooth technology, allowing you to play your music without having to connect from a compatible device (phone, tablet or computer with Bluetooth).
Specifications:
Bass speaker: 1 x 12" (31cm)
Low-frequency speaker coil: 3"
Tweeters: 8 x 3" neodymium
Tweeter coil: 0.8"
Bass reflex system
Amplifier: Class D
RMS amplifier power 500W
Maximum amplification power 1000W
Peak amplification power 1500W
Maximum SPL: 121dB
Peak SPL: 130dB
Frequency response @ -3dB: 30Hz-20kHz
Frequency response @ -10dB: 25Hz-20kHz
Cutoff frequency: 200Hz
Dispersion: 120° x 20°
Audio signal processing via DSP, 4-channel mixer, Bluetooth receiver
USB connector for charging your smartphone battery
Stereo pairing button for use with 2 systems in stereo (via Bluetooth)
Optional carrying cases
Power consumption: 150W
Subwoofer dimensions: 370 x 450 x 450mm
Satellite dimensions: 80 x 105 x 1620mm
Net weight of the subwoofer: 15kg
Net weight of the satellite: 3.25kg
