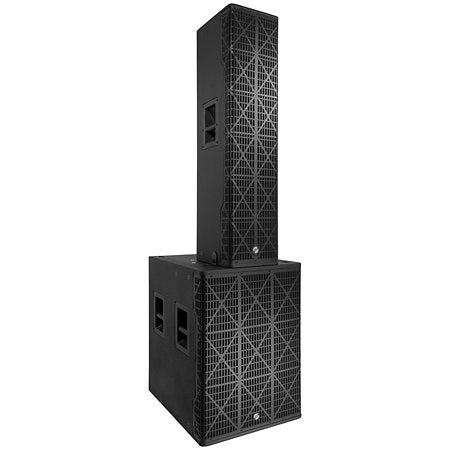

For those looking to optimize their audio experience, the elokance Tower 18 3-way active PA system is a high-flying innovation.

Designed to deliver uncompromising sonic performance, this system boasts a dazzling total power of 1,700 W RMS, amplifiable to a maximum of 3,400 W.

At the heart of this sonic powerhouse lies a 48 kHz/56-bit DSP with 5 presets and an RS485 network. The system is divided into three RMS amplifiers, specifically calibrated to 1,000 W for low frequencies, 600 W for mid frequencies, and 100 W for high frequencies.

 In terms of acoustic technology, this advanced configuration guarantees a frequency response of 35 Hz - 18 kHz and a maximum sound pressure level (SPL) of 141 dB.

On the transducer side, the elokance Tower 18 features one 1.5" HF transducer, four 8" MF transducers, and one 18" AF transducer, each with specifically sized voice coils.

These components contribute to a vertical directivity of 40° at 1 kHz and a horizontal directivity of 100° at 1 kHz, ensuring both wide and precise sound coverage.

Structurally, the 15mm birch plywood construction enhances durability, allowing this PA system to withstand the rigors of touring and permanent installations.

Specifications:

Active sound system
Lanes: 3
Amplification: Class D
Maximum total power: 3400 W
Total RMS power: 1700 W
Max. amplifications : 2000 + 1200 + 200W
RMS amplifications: 1000 + 600 + 100 W
Maximum SPL: 141 dB
Bass speaker: 1x 18" (457 mm), 4" voice coil
Midrange speaker: 4x 8" (203 mm), 2" voice coil
Tweeter: 1 x 1.5" (38 mm), 2" voice coil
Frequency response: 35 Hz ⭢ 18 kHz
Directivity: H 100° x V 40° DSP: 48 kHz / 56-bit
Presets: Original / Live / Vocal / DJ / User

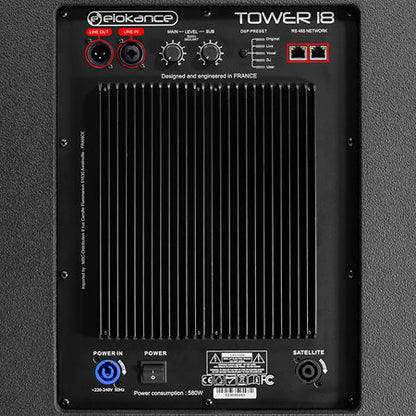

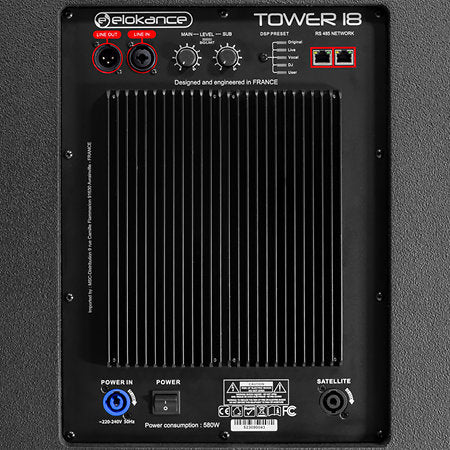

Connections: Line input: XLR/6.35 mm combo jack
Line output: XLR
Satellite output: SpeakON
Satellite input: SpeakON
RS485 network: 2x RJ45
Structure: 15 mm birch plywood
Power supply: 220-240 VAC / 50 Hz
Power consumption: 580 W
Box dimensions: 765 x 665 x 540 mm
Box weight: 46.5 kg
Satellite dimensions: 1160 x 330 x 270 mm
Satellite weight: 32 kg
