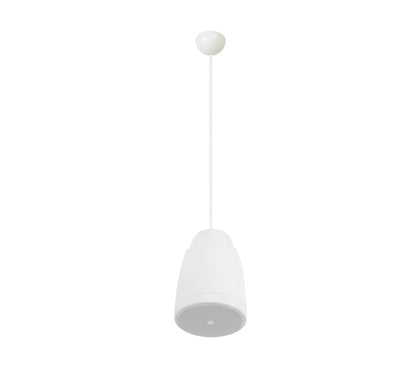

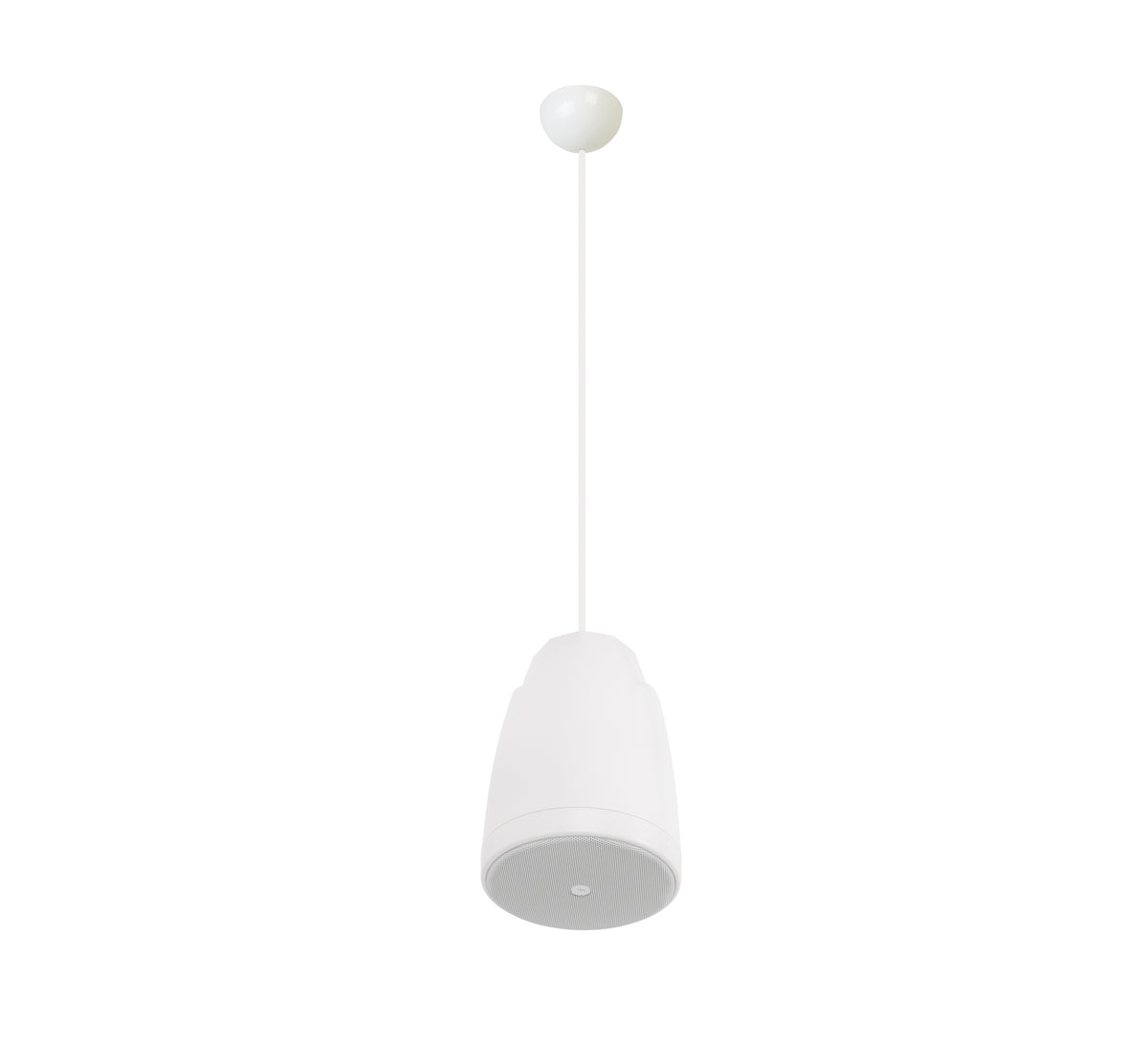

The Fonestar EF-322-EN is a hanging loudspeaker built and certified to EN 54-24 for voice alarm systems. Its modern design lets it blend into an installation as a decorative element, while hanging it from a ceiling or structure provides uniform horizontal coverage, helping to solve reverberation and echo problems in rooms with a high volume.
Delivering 20 W RMS from a 5" full-range driver, it produces a crisp, clean sound that is perfect for background music, public address, fire alarm and voice evacuation systems in 100 V line and low impedance installations in public places, industrial buildings, commercial areas, hospitals, factories and sports facilities.
| Feature | Specification |
| Features | Hanging loudspeaker for voice alarm systems EN 54 100 V line transformer and low impedance 5 m installation cable Modern design |
| Intended Use | Loudspeaker for voice alarm systems |
| Standard | EN 54-24 certified Fire detection and fire alarm systems - Part 24: Components of voice alarm systems - Loudspeakers, EN 54-24:2008 |
| Power | 20 W RMS |
| Loudspeaker | 5" full-range, paper diaphragm |
| Frequency Response | 130 - 20,000 Hz (-10 dB) |
| Impedance | 20 W RMS @ 100 V / 70 V (500 Ω / 250 Ω) 10 W RMS @ 100 V / 70 V (1,000 Ω / 500 Ω) 5 W RMS @ 100 V / 70 V (2,000 Ω / 1,000 Ω) Low Z: 6 Ω |
| Sensitivity | 89 dB @ 1 W / 1 m (100 Hz - 10 kHz, pink noise, based on EN 54-24) 77 dB @ 1 W / 4 m (100 Hz - 10 kHz, pink noise, based on EN 54-24) |
| Maximum SPL | 102 dB @ max. W / 1 m (100 Hz - 10 kHz, pink noise, based on EN 54-24) 89 dB @ max. W / 4 m (100 Hz - 10 kHz, pink noise, based on EN 54-24) |
| Coverage Angle | H/V (-6 dB): 360º @ 500 Hz, 190º @ 1 kHz, 100º @ 2 kHz, 65º @ 4 kHz |
| Protection | Type A (based on EN 54-24: IP21) |

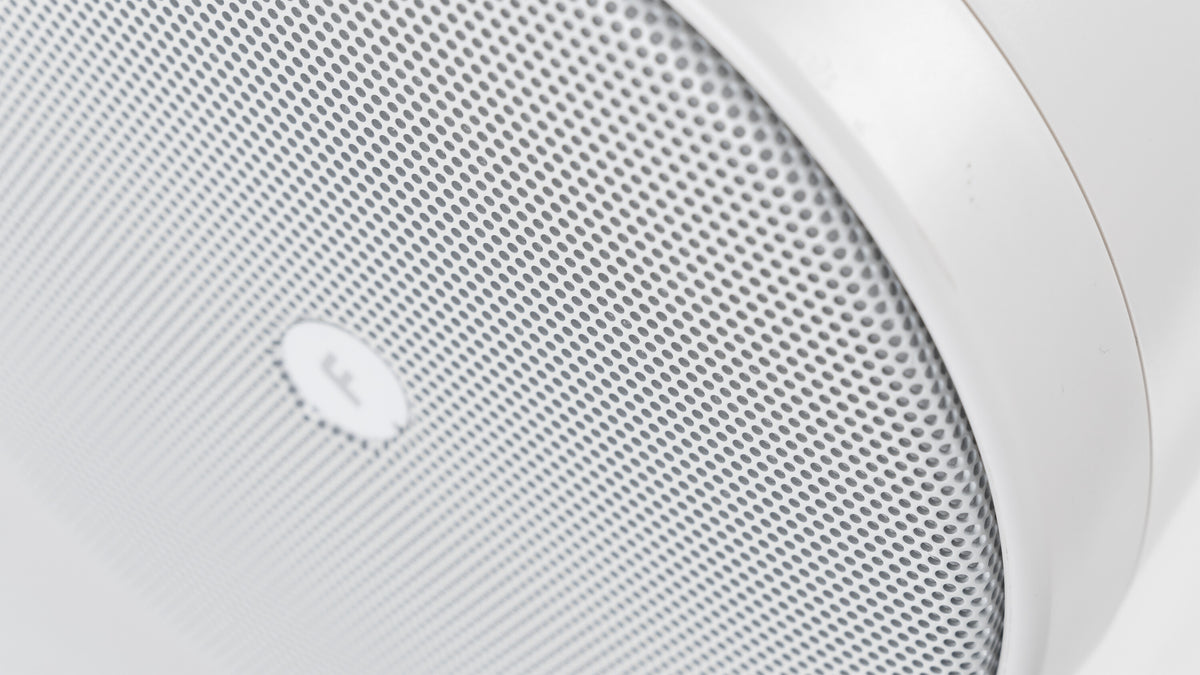

| Material | Shell: ABS+PC Steel grille with anti-oxidation surface treatment, painted Junction box for 6.5 mm outer diameter round cable |

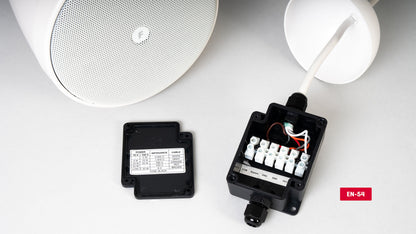

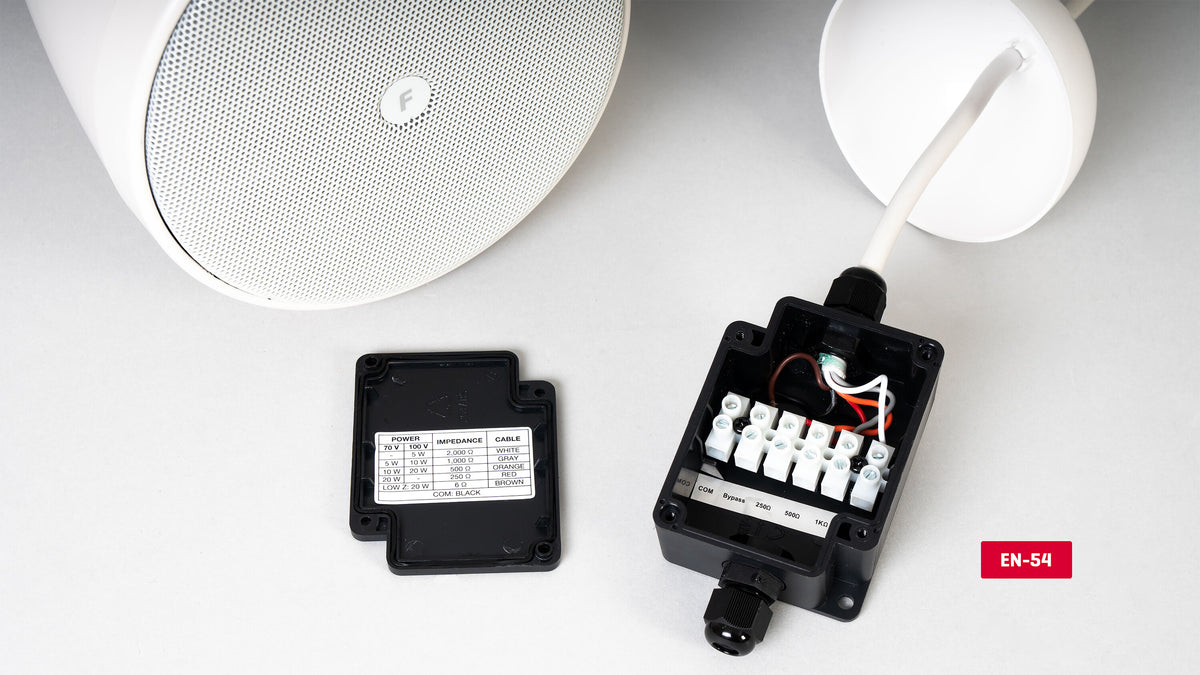

| Connections | Connection box for 6.5 mm outer diameter cable Connection terminals for 0.25 - 0.75 mm² cable cross-section |
| Operating Temperature | -10 ºC to +55 ºC |
| Colour | White (RAL 9010) |

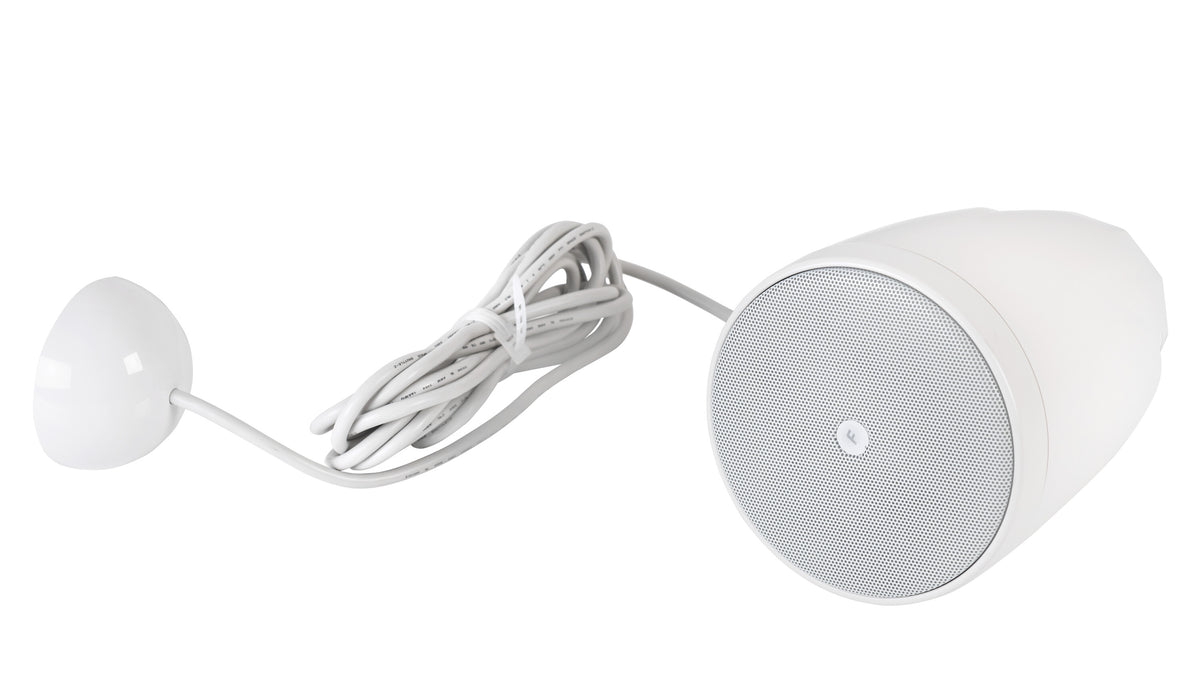

| Dimensions | 154 mm Ø x 222 mm height 5 m installation cable |
| Weight | 2 kg |
