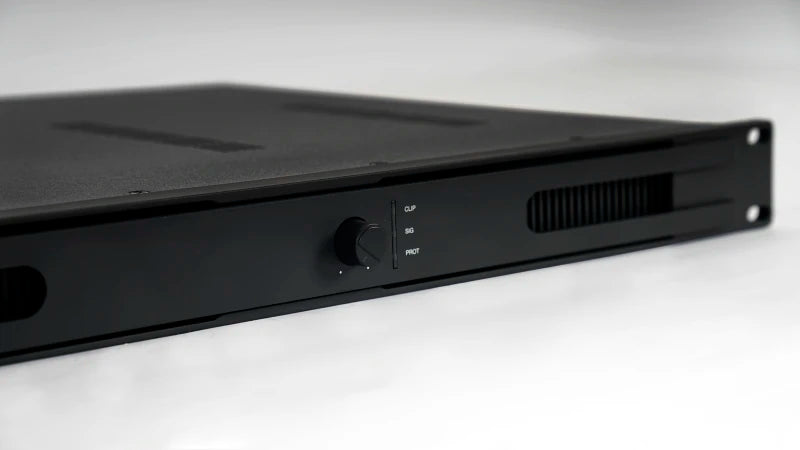

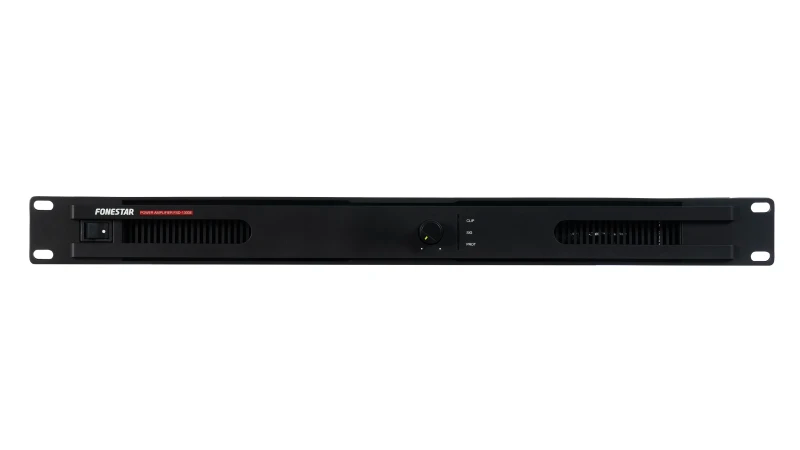

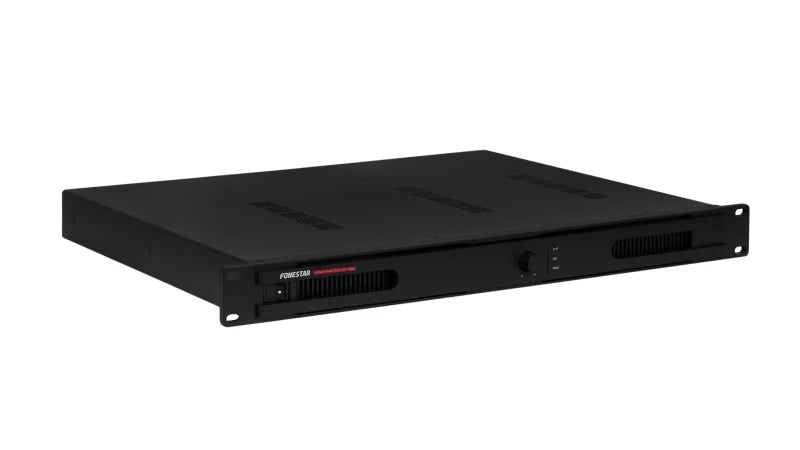

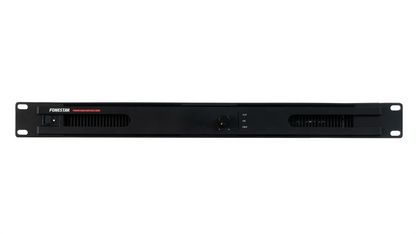

The FSD-1300E is a 100 V 300 W Class D power amplifier , 1-channel, designed for PA installations that require high efficiency, reliability and low maintenance. It provides 100 V or 70 V line output, with 300 W RMS power and 1200 W peak.
Its technical design makes integration into professional systems easy:
It is a suitable solution for AV installers who need:
1-channel public address power stage.
100 V or 70 V line output for public address installations.
High-efficiency, highly reliable Class D amplifier thanks to low-maintenance protection circuits.
Euroblock connectors, secure and easy to connect.
High sound quality and low noise.
1200 W peak
300 W RMS
55-20,000 Hz (-10 dB)
40 dB
THD+N: <0.04% (1 kHz)
>95 dB
>105 dBA
>200
1 balanced/unbalanced auxiliary lines. Euroblock input and output connectors, 1 V RMS (0 dBV), 20,000 Ω/10,000 Ω
100 V / 70 V speaker output, 2 Euroblock connectors
Integrated limiter
Forced ventilation with variable speed depending on temperature
Indicator lights for power, protection, priority, and signal peak
Overload, short circuit, open circuit, temperature, ultrasound and radio frequency
Volume
100/70 V switch on rear panel
Operating temperature: 0ºC ~ 50ºC
220–240 V AC, 50/60 Hz
110–120 V AC, 50/60 Hz available on request
Power consumption: 400 W
AC fuse: 230V 2A / 115V 4A
Type Modular rack rack 19'' 1 U
483 x 44 x 380 mm depth. 1 U rack 19''
5 kg
Non-slip adhesive pads
Power cord
