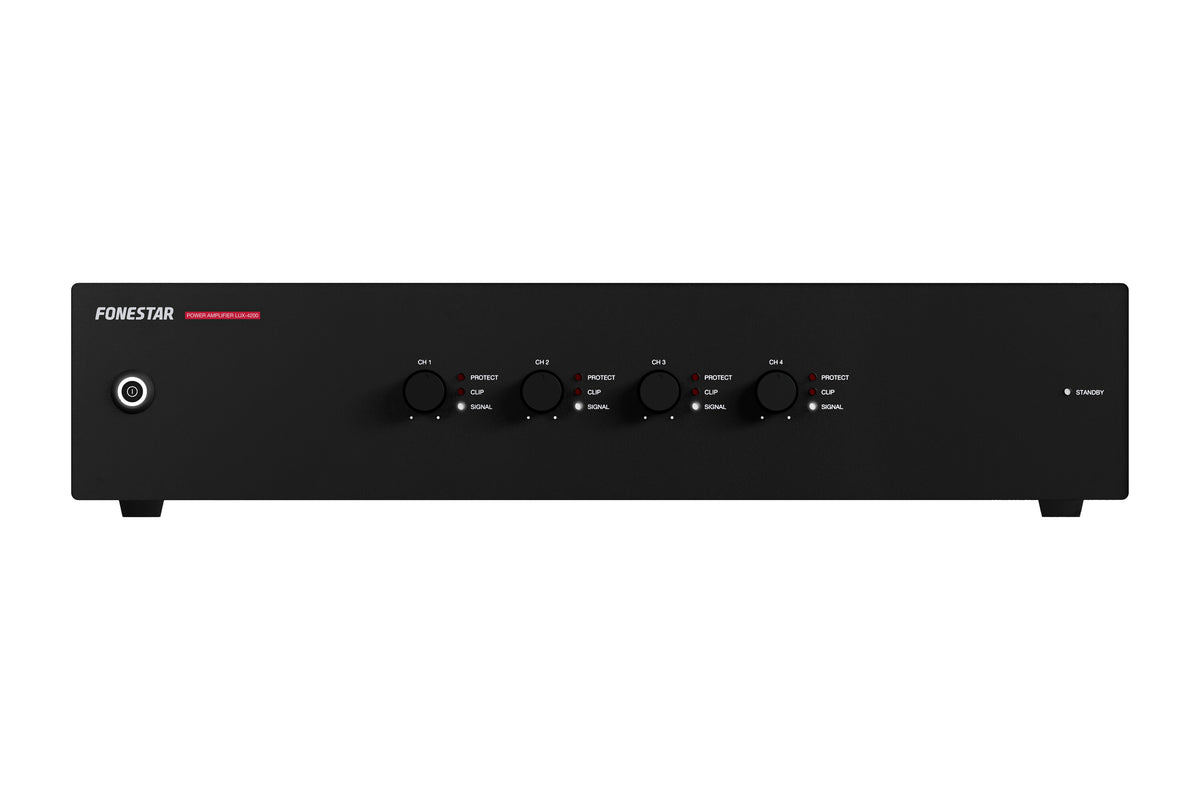

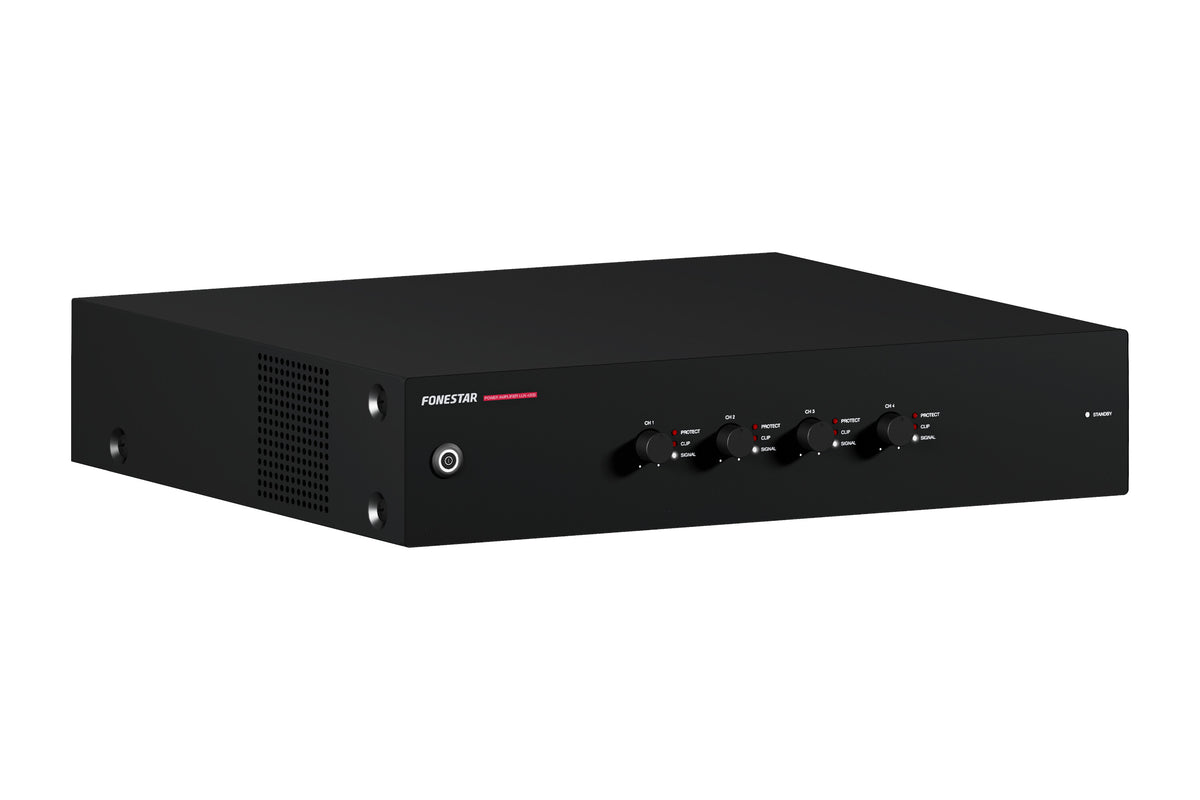

The Fonestar LUX-4200 is a low impedance, multi-channel Class D power amplifier designed for professional installations that demand power, flexibility and reliability. Its four independent channels deliver 4 x 200 W RMS at 8 Ω or 4 x 400 W RMS at 4 Ω, and can be bridged to 2 x 800 W RMS at 8 Ω, making it a versatile choice both for zone-distributed systems and for applications requiring higher power output.
Each channel can be set up independently with its own gain, input sensitivity and HPF/LPF filtering, so the amplifier can be tailored precisely to the speakers and the space. It is well suited to sound system projects in commercial, educational, corporate and cultural spaces, including worship centres, hospitality venues, retail, sports facilities, hotels and transport stations.
| Feature | Specification |
| Technology | 4-channel digital amplifier High-efficiency Class D amplifier circuit |
| Power (Stereo / Parallel) | 200 + 200 + 200 + 200 W RMS at 8 Ω 400 + 400 + 400 + 400 W RMS at 4 Ω |
| Power (Bridge) | 800 + 800 W RMS at 8 Ω |
| Power (All Channels Driven) | 1,600 W RMS at 4 Ω |
| Frequency Response | 20 - 20,000 Hz (-3 dB) |
| Input Impedance | Balanced 20 kΩ Unbalanced 10 kΩ |
| Gain | 34.26 dB |
| Distortion (THD+N) | < 0.3% (< 0.04% typical) |
| S/N Ratio | > 98 dB at 1 kHz |
| Crosstalk | < -73 dB at 1 kHz |
| CMR | > 80 dB |
| Damping Factor | > 140 |

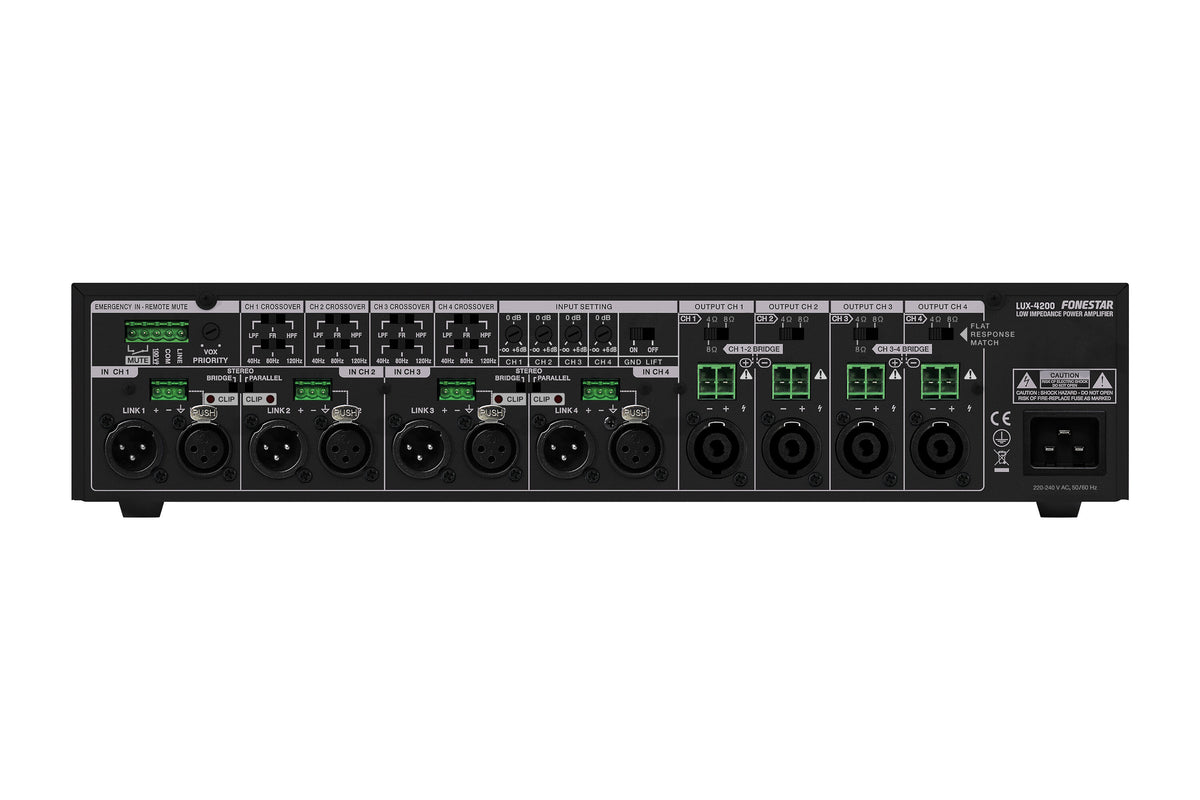

| Inputs | 4 x Lo Z: XLR and Euroblock (5.08 mm pitch, up to 4 mm²) 1 x Emergency: Euroblock (5.08 mm pitch, up to 4 mm²) 1 x Mute by contact closure: Euroblock (5.08 mm pitch, up to 4 mm²) |
| Input Sensitivity | 775 mV to 5 V |
| Outputs | 4 x Lo Z: speaker connector and Euroblock (7.62 mm pitch, up to 6 mm²) |
| Output Impedance | Stereo / parallel: 8 Ω and 4 Ω Bridge: 8 Ω |

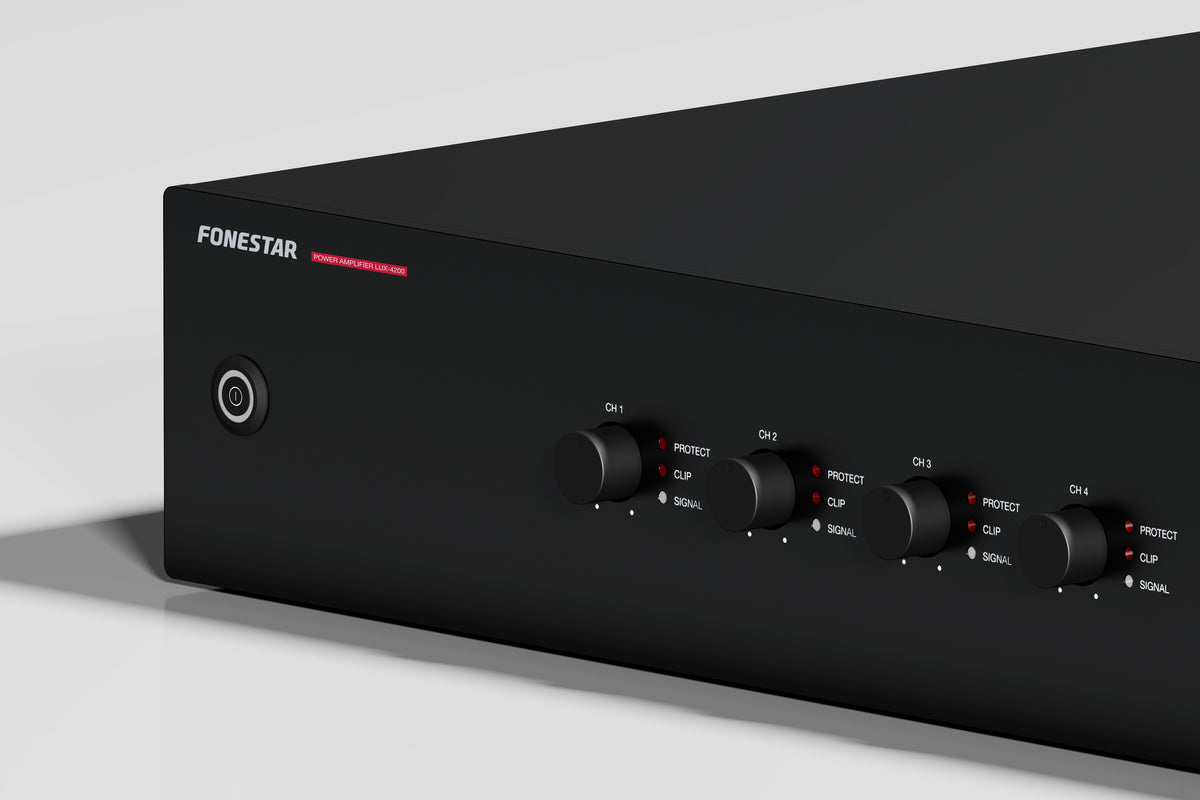

| Controls | Filter selector: LPF Bessel 12 dB/oct (2nd order), HPF Bessel 12 dB/oct (2nd order), Full Range (no filter) Cut-off frequency selector: 40 Hz / 80 Hz / 120 Hz Input gain control per channel (0.775 to 5 V) Output gain control per channel (0 to 5 V) Priority adjustment control for emergency input Operating mode selector: stereo / parallel / bridge 4 / 8 Ω selector for frequency response optimisation Auto standby: 15 min GND lift (earth disconnection) ON / OFF switch with LED ring |
| Indicators | Power on (POWER), Standby (STANDBY), Signal (SIGNAL), Output peak (CLIP, front and rear panel), Protection (PROTECT) |
| Limiters | Level/power limiter (output limiter) |
| Protections | Soft start (inrush current limiting), thermal, output short circuit, output over-current, overload, output DC voltage |
| Consumption (Idle @ 230 V) | 65.8 W / 0.28 A / 224.52 BTU/h |
| Consumption (1/8 Power @ 4 Ω, 230 V) | 343.98 W / 1.47 A / 491.55 BTU/h |
| Consumption (Standby @ 230 V) | 23.4 W / 0.10 A / 79.84 BTU/h |
| Cooling | Forced-air cooling with variable speed |
| Operating Temperature | -10 ºC to 40 ºC |
| Storage Humidity | < 90% RH |
| Power Supply | Nominal: 230 V AC, 50 / 60 Hz Operating: 220 - 240 V AC AC connector: IEC 60320-C20 (20 A max) Fuse: T12A / 250V 6 x 60 mm |
| Dimensions | 430 x 95 x 370 mm depth |
| Weight | 7.46 kg |
