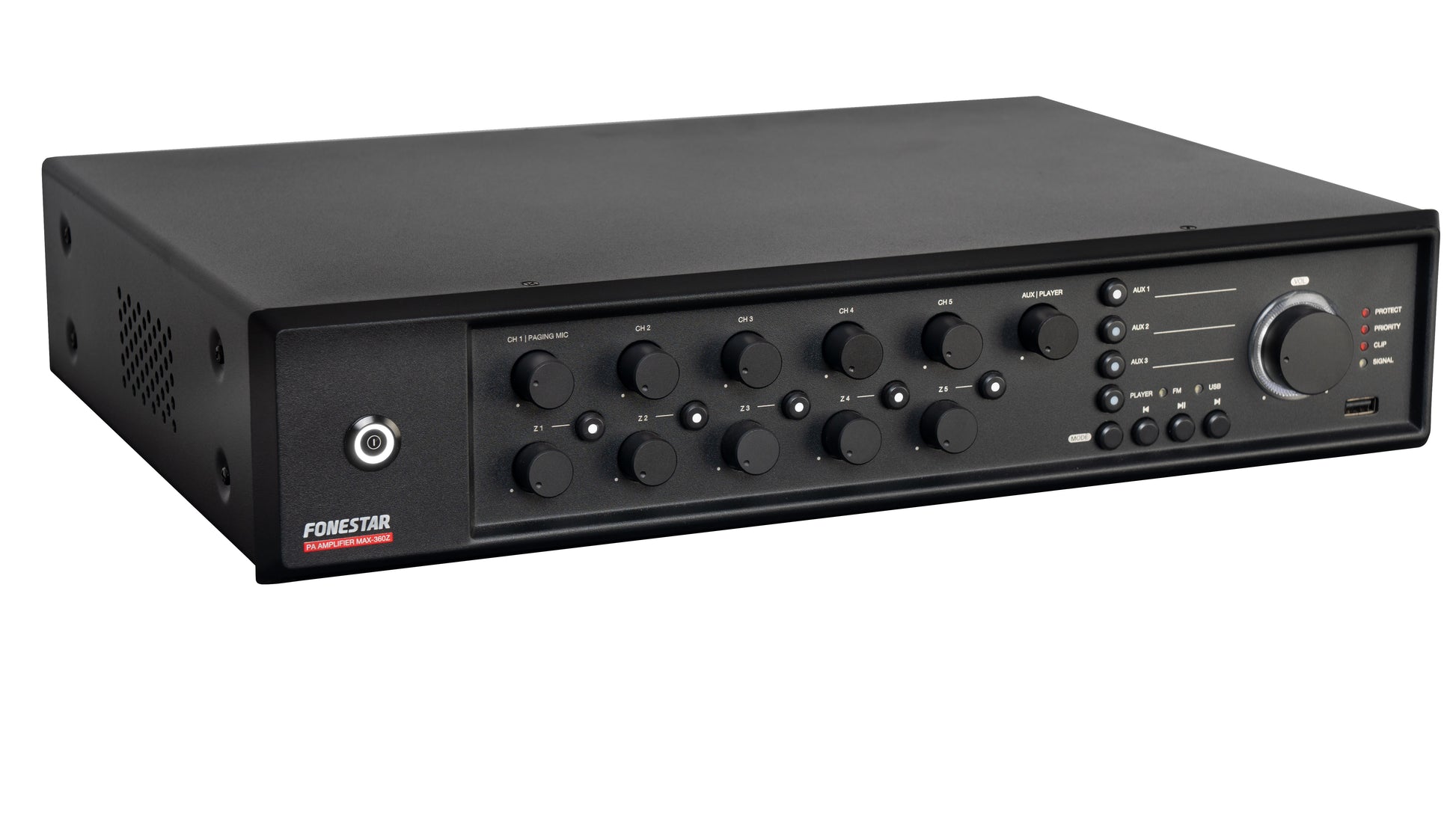

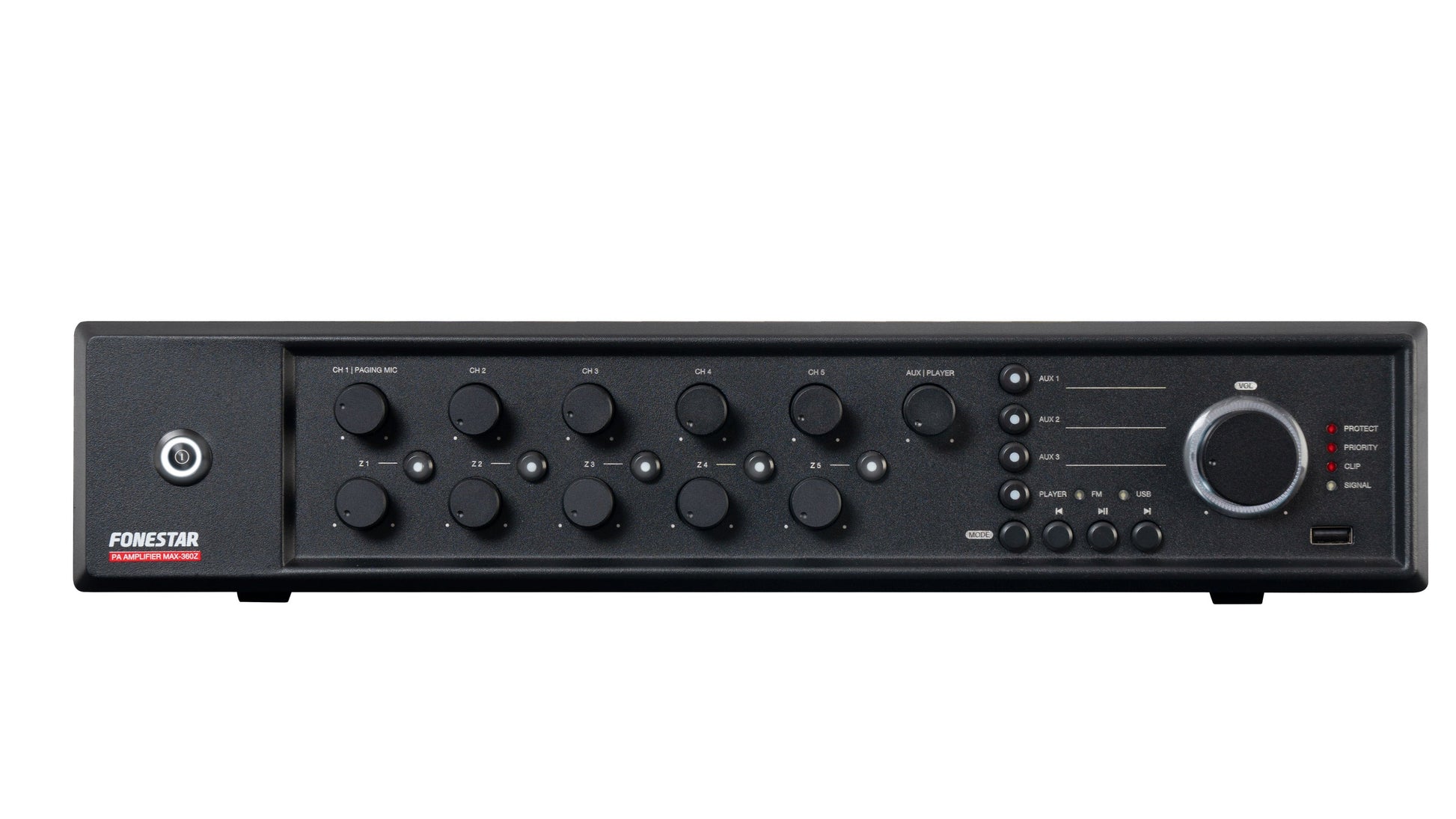

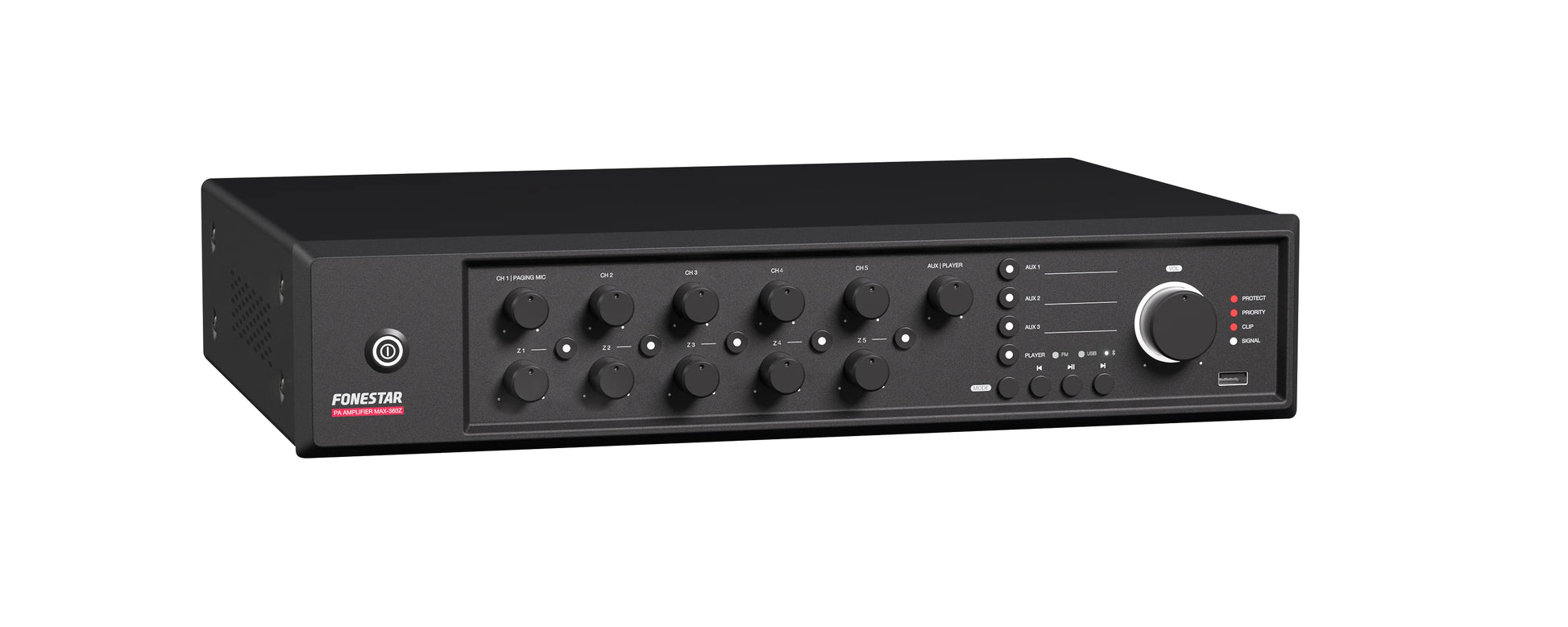

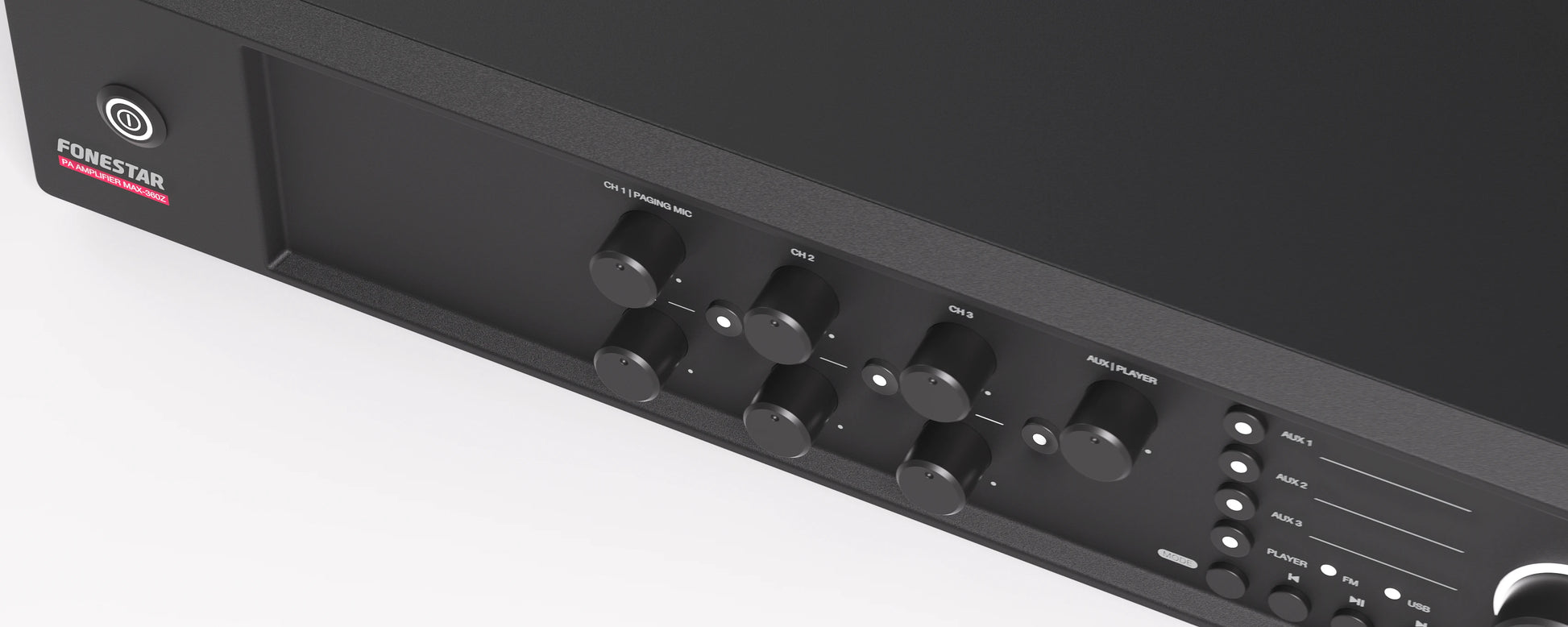

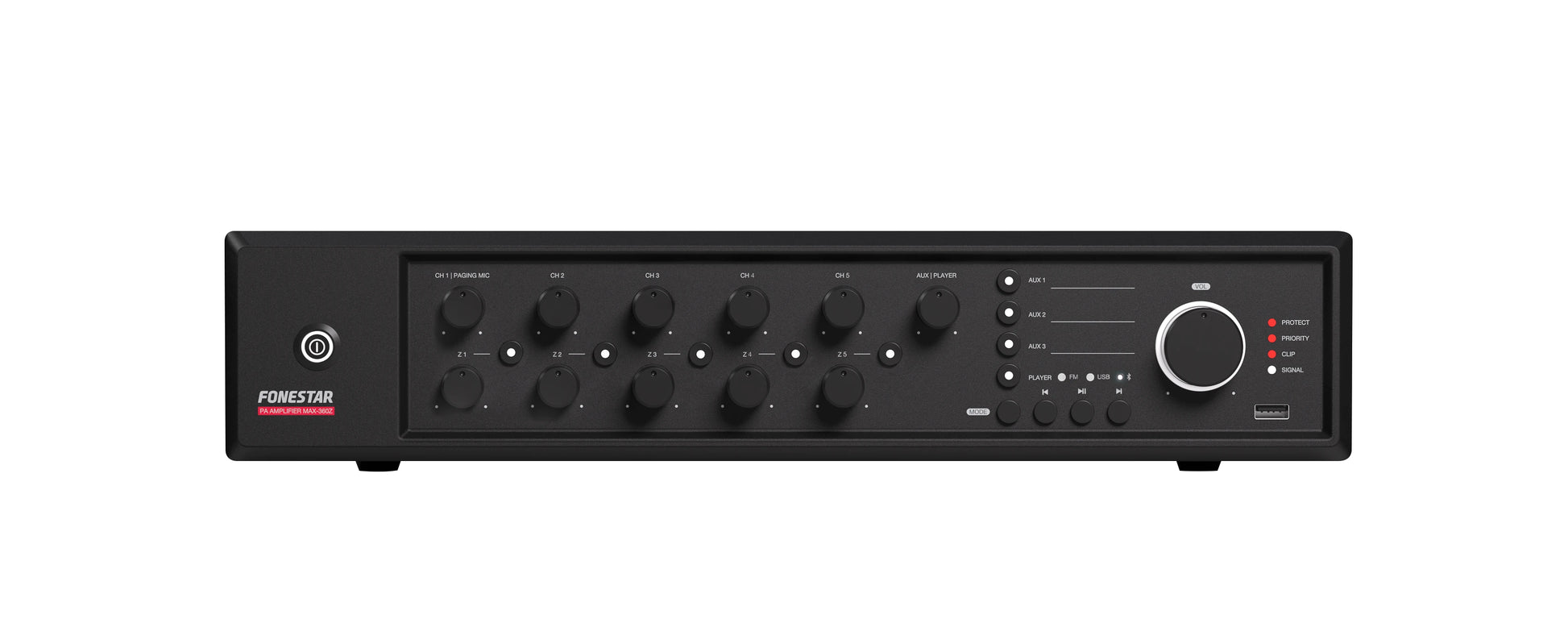

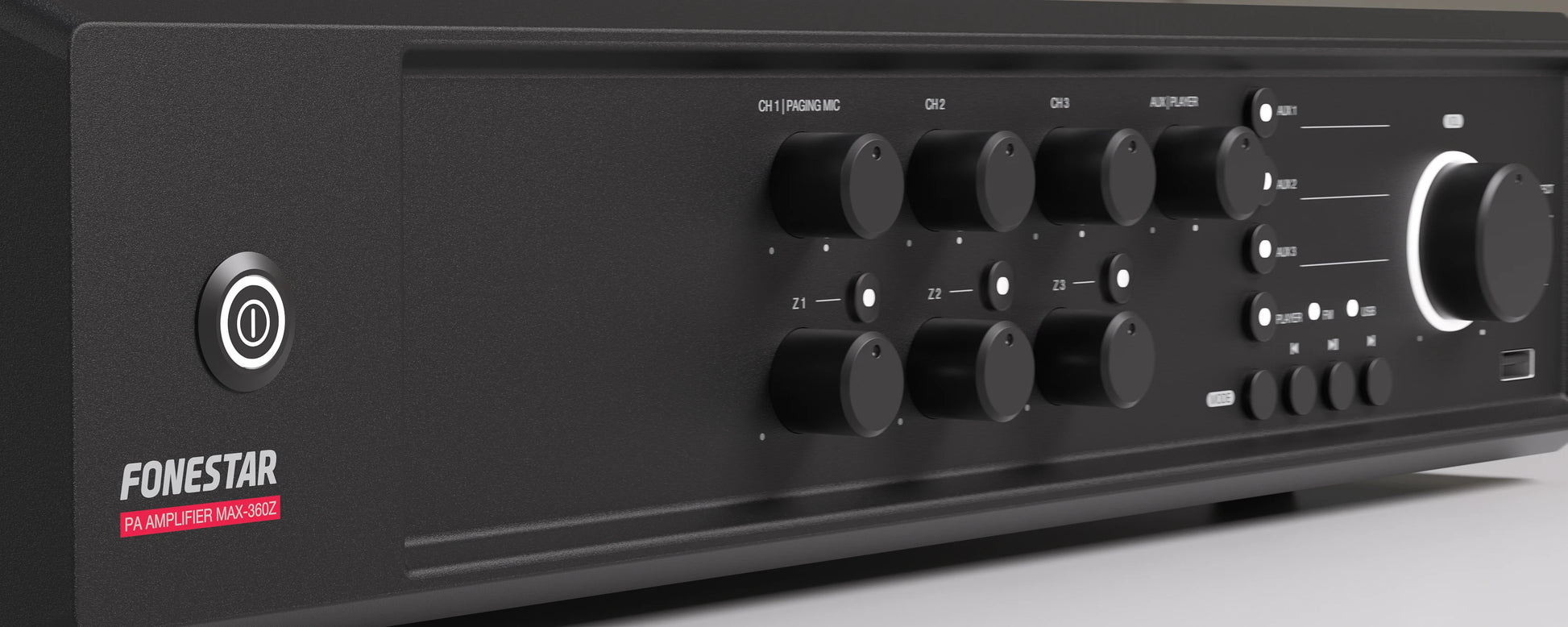

The Fonestar MAX-360Z is an integrated and compact Public Address (PA) multi-zone amplifier designed for background music and PA installations in commercial premises, educational centers, hotels, and other large spaces. It features a modern Class D amplifier for high efficiency and reliability.
This amplifier is a comprehensive solution for PA and background music in commercial and public environments, offering robust power and extensive control over multiple zones.
Output Zones: 5 speaker output zones with individual volume control and Off position (max. 240 W per zone).
Integrated Player: Built-in Bluetooth 5.3/USB/FM player for ambient music playback, featuring autoplay and memory functions.
High Power: 360 W RMS output power.
Speaker Outputs: Supports 100 V, 70 V, and 4 Ω speaker lines.
Priority System: Includes an Emergency input and mute for connection to alarm/evacuation systems. It also has Attenuator Priority 24 V and a 3rd priority wire output for controlled volume reduction in zones during announcements.
Microphone Inputs: Multiple inputs including dedicated ZONEMIC-6 zone microphone input (RJ45, up to 200m), and CH 1, 2, 3, 4, and 5 micro/balanced line inputs with selectable Phantom 48V and ringtone generator (Chime).

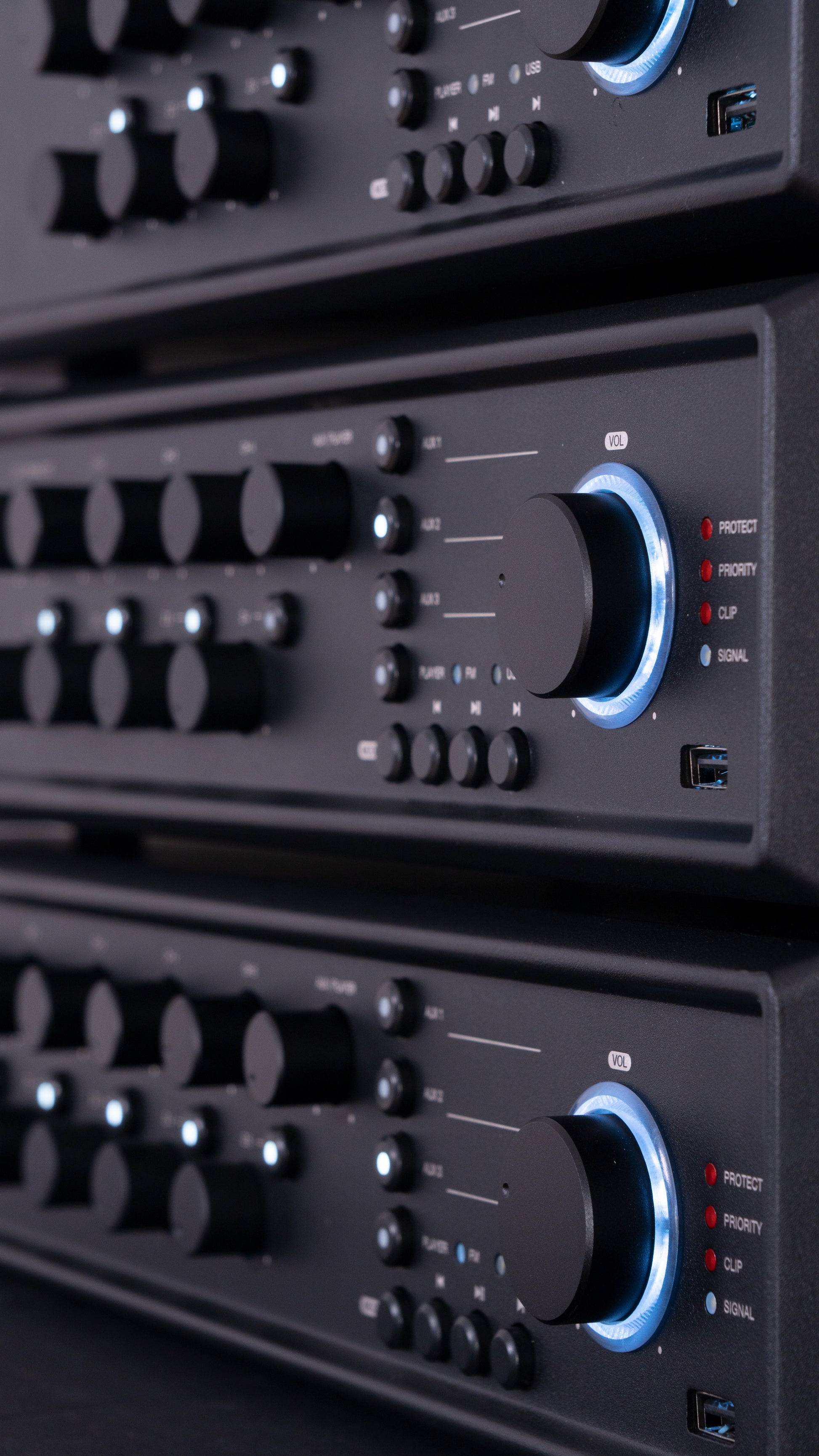

Design: Can be used as a desktop unit or mounted in a 2 U 19” rack (rack mounts included).
Cooling: Induction cooling (fanless) for silent, maintenance-free operation.
| Feature | Specification |
| Power | 360 W RMS |
| Response | 45 - 22,000 Hz (-10 dB) |
| Distortion | THD+N: <0.5% at 1 kHz |
| Speaker Outputs | 100 V, 70 V, or 4 Ω; 5 zones of 100 V with 7-position volume selector and OFF |
| Player | Bluetooth 5.3 / USB / FM |

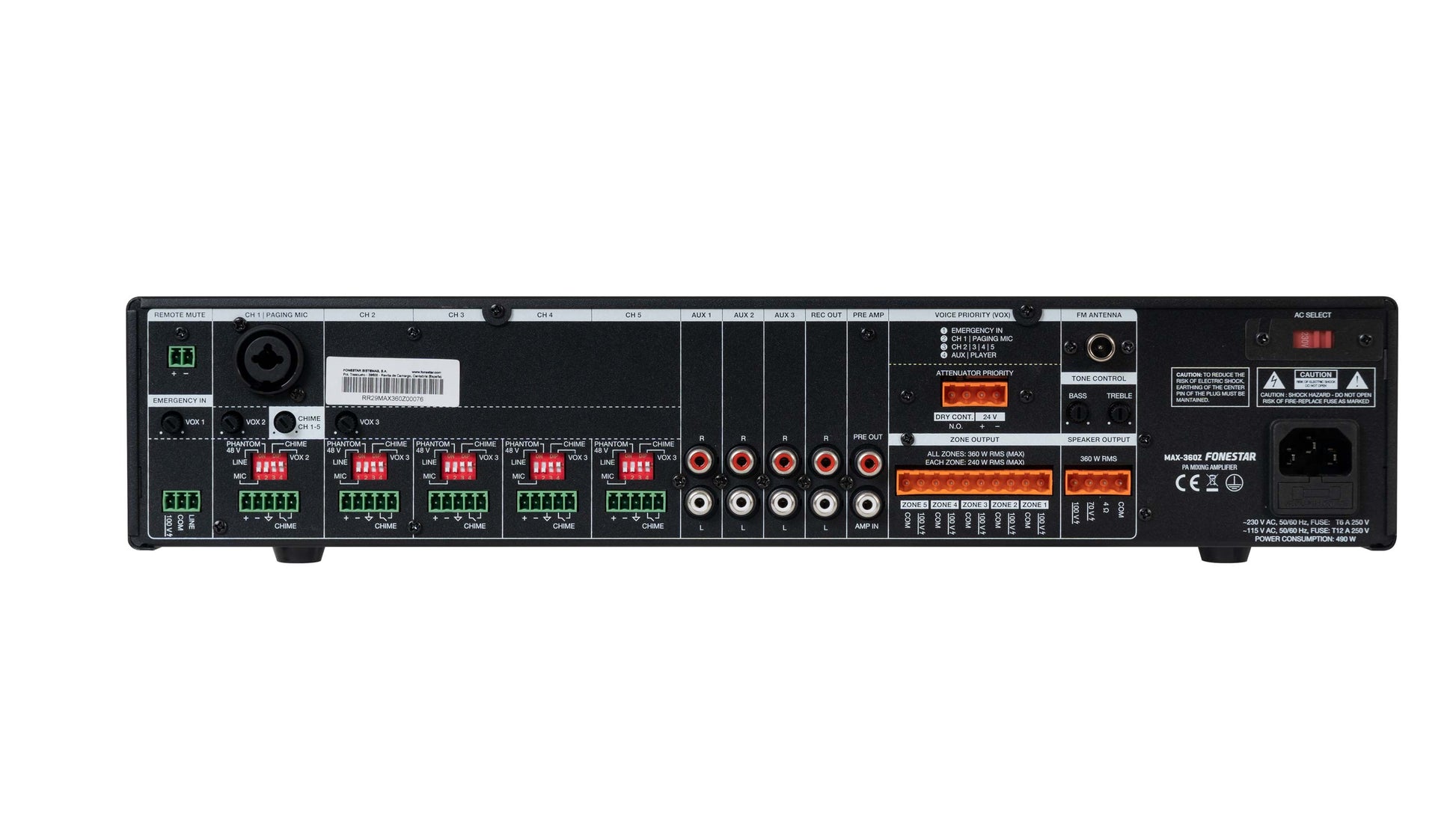

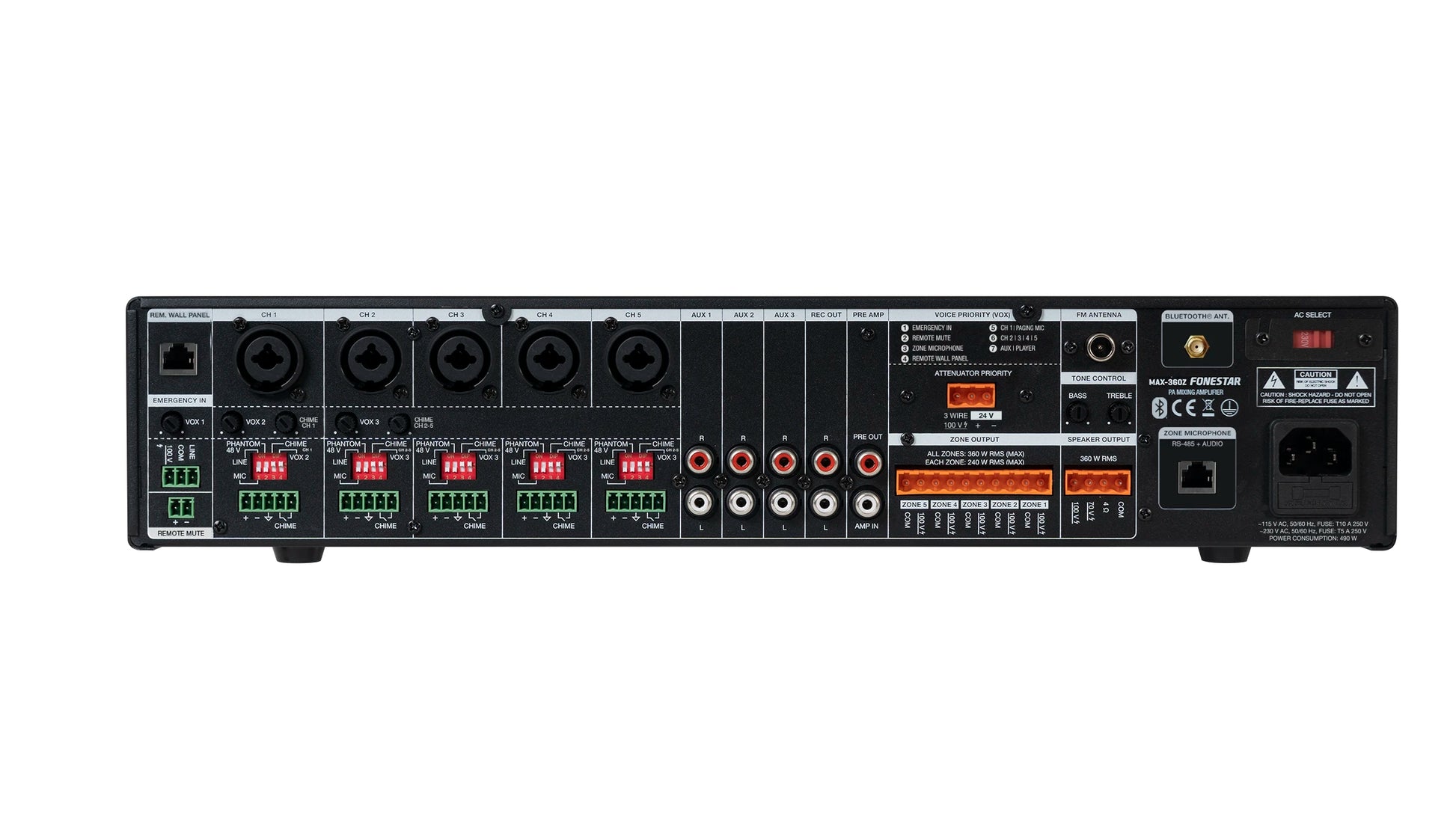

| Inputs | ZONEMIC-6 (RJ45), Remote wall panel (RJ45), 5 x Combo/Euroblock (Mic/Line/Phantom), 3 x AUX (RCA), 1 x Emergency (Euroblock), Mute (contact closure) |
| Outputs | REC (RCA), Pre-out (RCA), 100 V/70 V/4 Ω Speakers, 24V Attenuator Priority, 3rd Priority Wire (100V) |
| Power Supply | 230/115 V AC 50-60Hz |
| Power Consumption | 600 W |
| Dimensions (W x H x D) | 430 x 89 x 320 mm (2 U 19” rack) |
| Weight | 9.8 kg |
