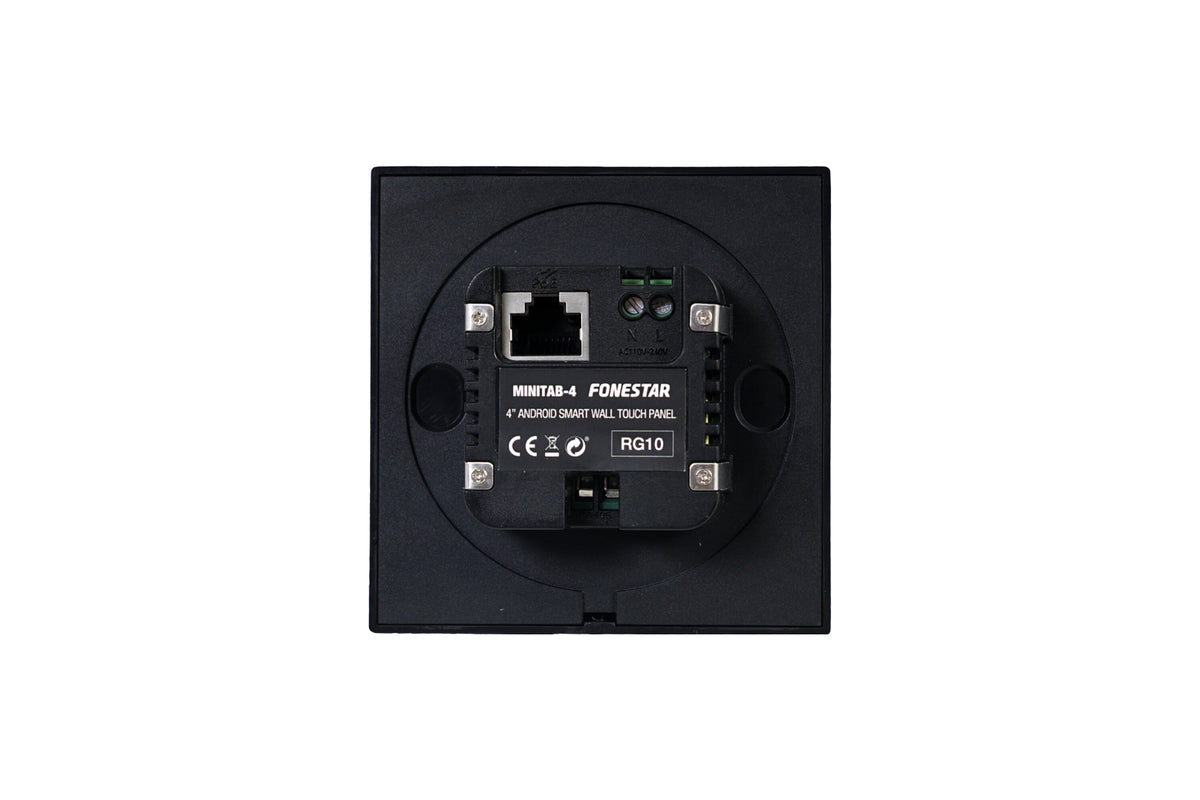

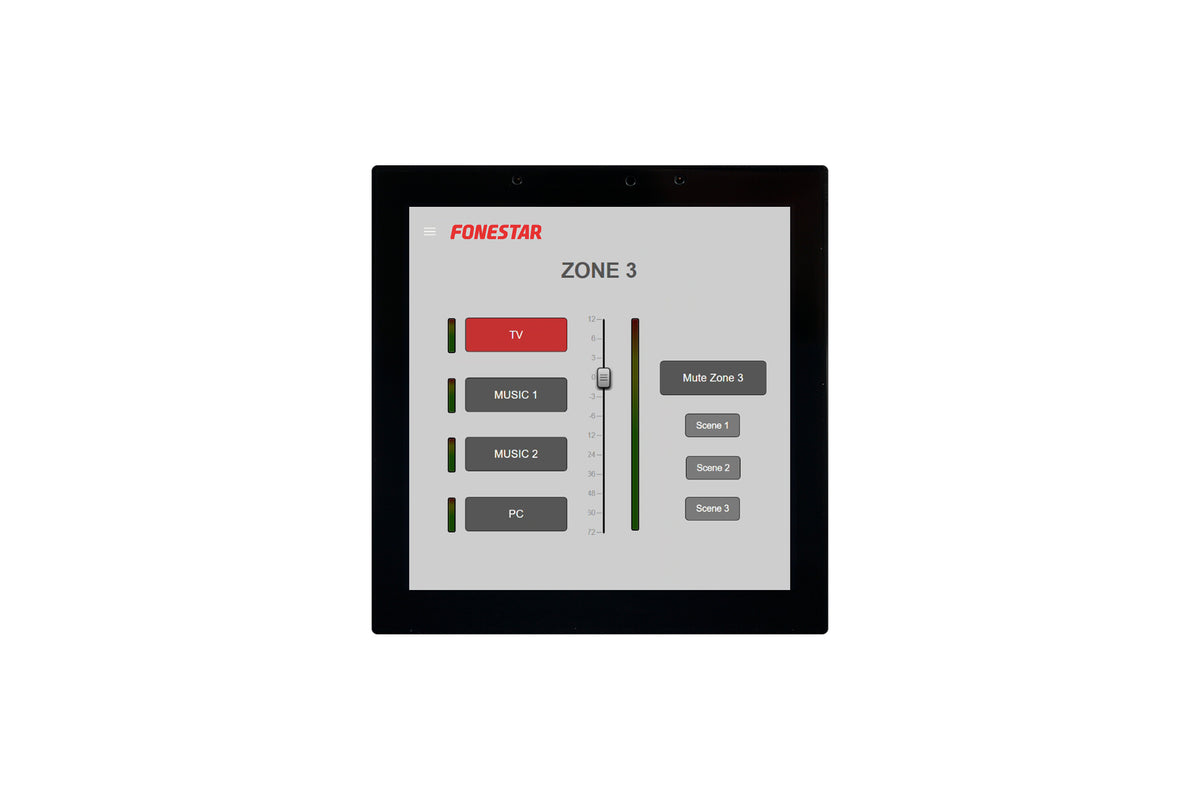

The Fonestar MINITAB-4 is a 4" touch panel for NMX series audio matrices, designed to simplify day-to-day operation of the system without accessing its advanced configuration. It runs the NMX matrix user interface app on Android 11.
Its IPS touchscreen and PoE power supply (IEEE 802.3af) allow a clean installation and intuitive use in retail spaces, videoconference rooms, hotels, sports facilities and more. It can be wall-mounted or flush-mounted, and several touchscreens can be used in the same installation.
| Feature | Specification |
| CPU | RK3566 quad-core Cortex-A55, up to 1.8 GHz |
| Operating System | Android 11 |
| Memory | 2 GB RAM + 32 GB ROM |
| Display | Capacitive touch panel, 480 x 480 IPS |
| Network | Wi-Fi 802.11b/g/n Ethernet 10M/100M |
| Inputs | 1 x LAN port for network connection, RJ-45 with PoE 1 x USB Type-C port 2 x built-in microphones |
| Outputs | Speaker 1 x RS-485 serial port |

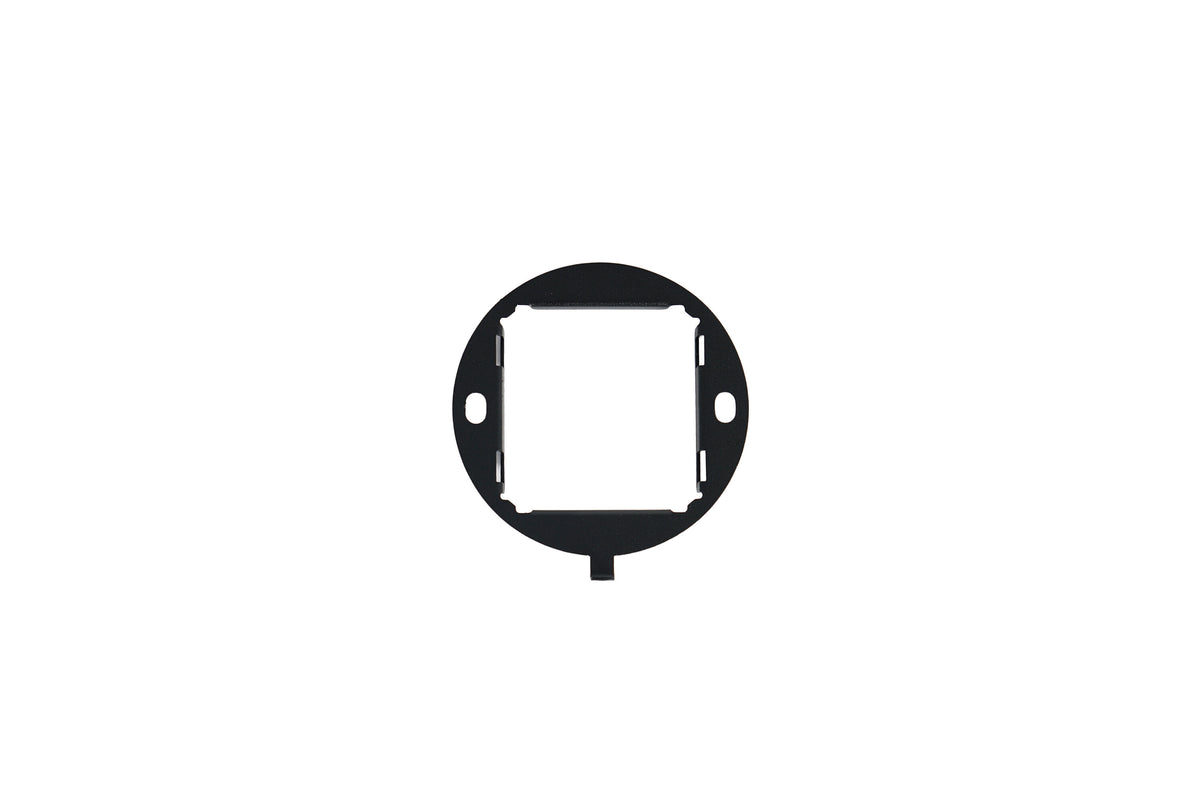

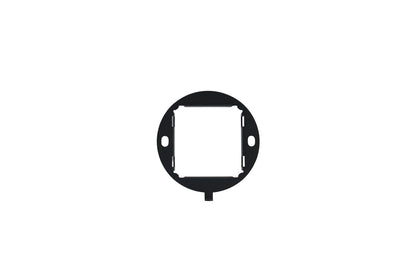

| Installation | Wall-mounted or flush-mounted Supports multiple touchscreens in one installation |
| Operating Temperature | -10 °C to 60 °C |
| Colour | Black |
| Power Supply | PoE, IEEE 802.3af 90 - 240 V AC, 50 / 60 Hz |
| Dimensions | Overall: 86 x 85 x 37 mm depth Flush mounting: 48 x 48 x 25 mm depth; 60 mm between screws; compatible with round and square flush-mounting boxes |
| Weight | 0.15 kg |
