Enables volume control, zone assignment, scene assignment, etc.
The MPX-4088 system is a highly versatile audio matrix, perfect for installations of any size, allowing a multitude of configuration options, DSP signal processing and integrated solutions to common problems such as feedback, covering almost any installation need.

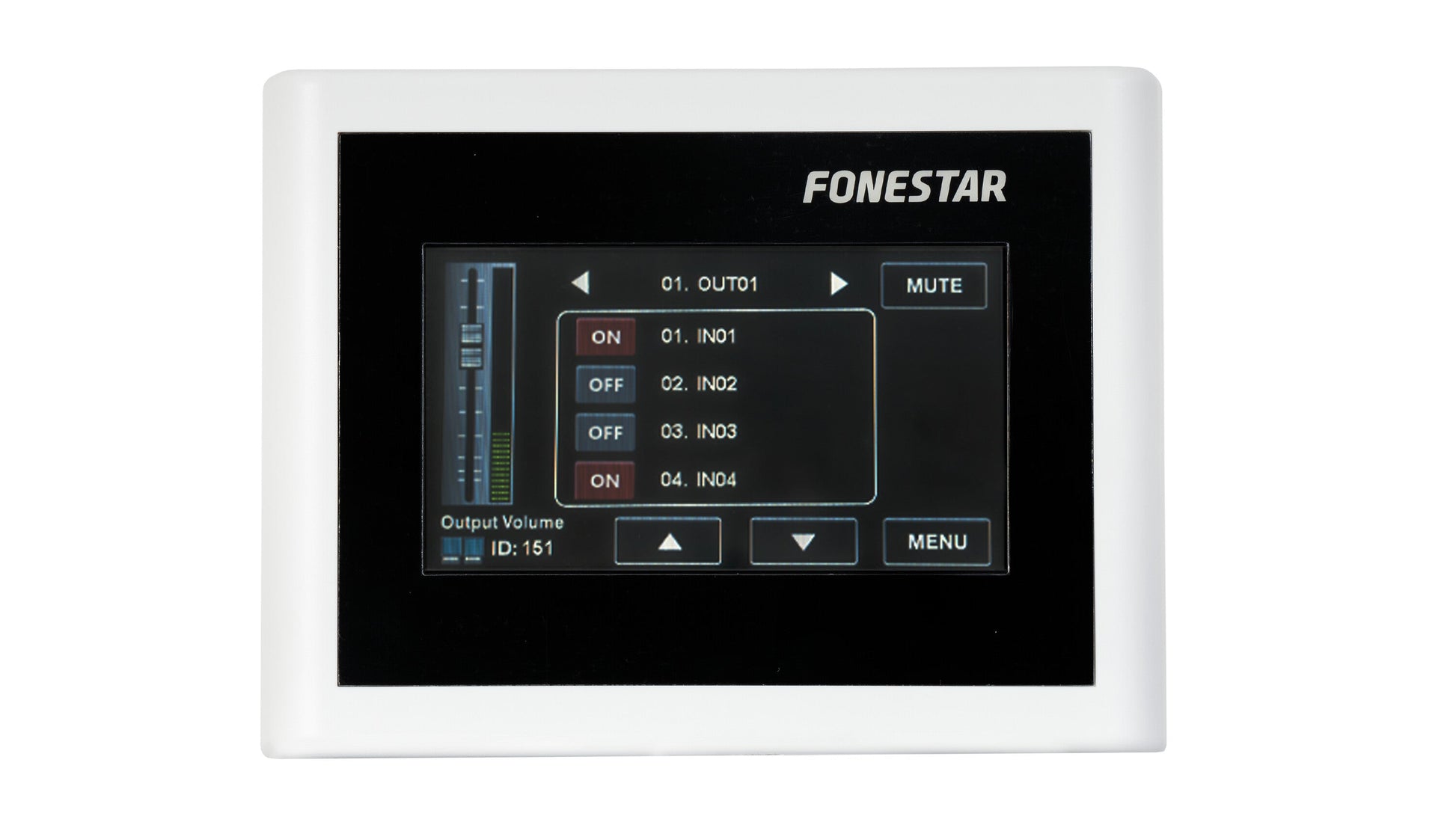

MPX-460P is a remote volume control and zone assignment remote control with touch screen for audio matrix mod. MPX-4088.
It connects to the matrix via RJ-45, Cat 5e cable and has an extension link to connect up to 8 MPX-460P in series.
For installations where there are various audio sources and audience areas such as shopping malls, hotels, conference rooms, stadiums, etc
FEATURES:
Remote control for volume control and zone assignment with touch screen for audio matrix mod. MPX-4088.
Connection to the matrix via RJ-45 cable, Cat 5e (see note).
Link extension for connecting up to 8 MPX-460P in series.
Capacitive LCD touch screen.
Surface installation. The rear panel is screwed to the wall and the front panel is secured with a screw.
INPUTS:
1 RD port for connection to MPX-4088 matrix, RJ-45 (see note)
OUTPUTS:
1 extension link, RJ-45
CONTROLS:
Volume control, zone and scene allocation
POWER SUPPLY:
24 V DC, 100 mA, RD port
24 V DC, 300 mA, euroblock, for connection of more MPX-460P in series.
DIMENSIONS:
150 x 115 x 25 mm depth
Surface installation.
WEIGHT:
0.29 kg
ACCESSORIES:
Screws and mounting accessories
NOTE:
It is recommended to use high quality Cat 5e/6 cables, UTP or FTP/SFTP shielded cables with shielded connectors and with the cable shield connected to the connector shield.
Maximum cable length 100 m..
