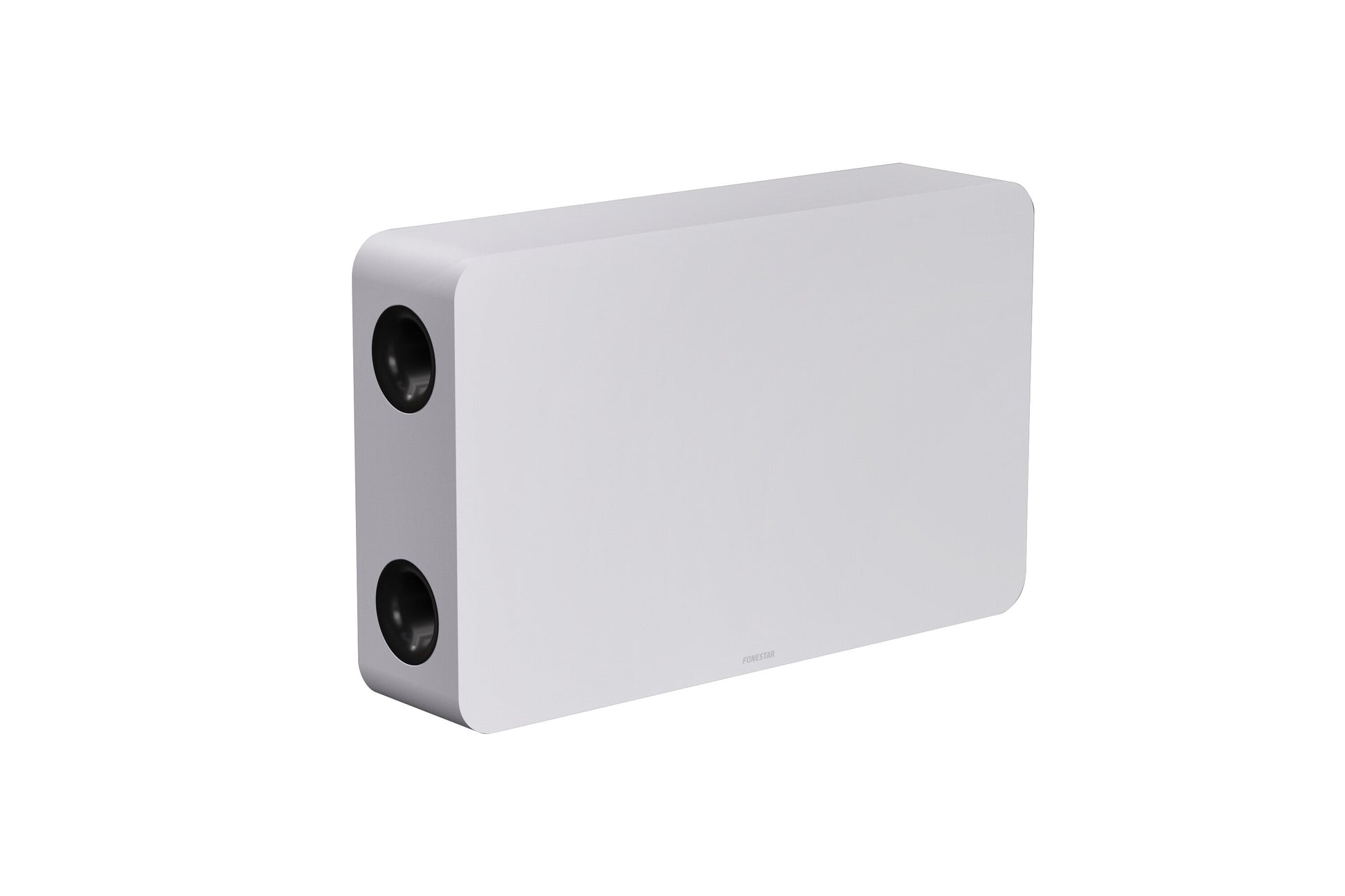

Subwoofer speaker with 100 V line transformer
Subwoofer with excellent bass response, for sound reinforcement in ambient music.
Improves the bass content of the music, offering deep and powerful bass without distortion.
Unique FONESTAR design, with stylized shapes and compact size. Available in black or white.
Can be installed on the floor or wall and easily goes unnoticed in any space.
Fully protected loudspeaker.
Several options for transformer power selection and low impedance connection that allows it to be adapted to any installation.
It incorporates a low pass filter, which allows its frequency response to be adjusted according to the type of music and features of the premises.
Bass reflex reinforcement, which takes advantage of the rear radiation of the loudspeakers to boost the bass.
Perfect for ambient music applications for the retail sector, bars, cafes, etc.
FEATURES
:
Subwoofer speaker for background music applications.
Excellent bass response for reinforcement of bass music content.
Bass-reflex reinforcement system.
Unique FONESTAR design.
100/70 V line driver and low impedance.
Wall or floor/shelf installation.
POWER
:
120 W RMS (IEC 60258-5 Average rated power, 100 hours)
LOUDSPEAKERS
:
1 x 8" woofer
RESPONSE
:
47-300 Hz (-10 dB) @ FPB 150 Hz
47-400 Hz (-10 dB) @ FPB 400 Hz
47-650 Hz (-10 dB) @ Bypass
IMPEDANCE
:
120W RMS @ 100V (83Ω)
85W RMS @ 70V (57Ω)
60W RMS @ 100V/70V (166Ω/83Ω)
30W RMS @ 100V/70V (333Ω/166Ω)
15W RMS @ 100V/70V (666Ω/333Ω)
7.5 W RMS @ 70 V (666 Ω)
Low Z: 6Ω
SENSITIVITY
:
85dB @ 1W/1m
SOUND PRESSURE
:
103 dB @ rated power/1m
SWITCH
:
W selector in high Z and low Z
Low pass filter selector: 150 Hz / 400 Hz / Bypass
MATERIAL
:
MDF
CONNECTORS
:
Euroblock input and output
TEMPERATURE RANGE
:
Operation: -10º ~ 50ºC
Storage: -20º ~ 50ºC
COLOR
:
White (RAL 9003)
DIMENSIONS
:
545 x 150 x 337 mm depth
WEIGHT
:
9.4kg
ACCESSORIES
:
Wall mounting brackets
Screws and mounting accessories
OPTIONAL
:
Ceiling mount POWERBASS-CMB
