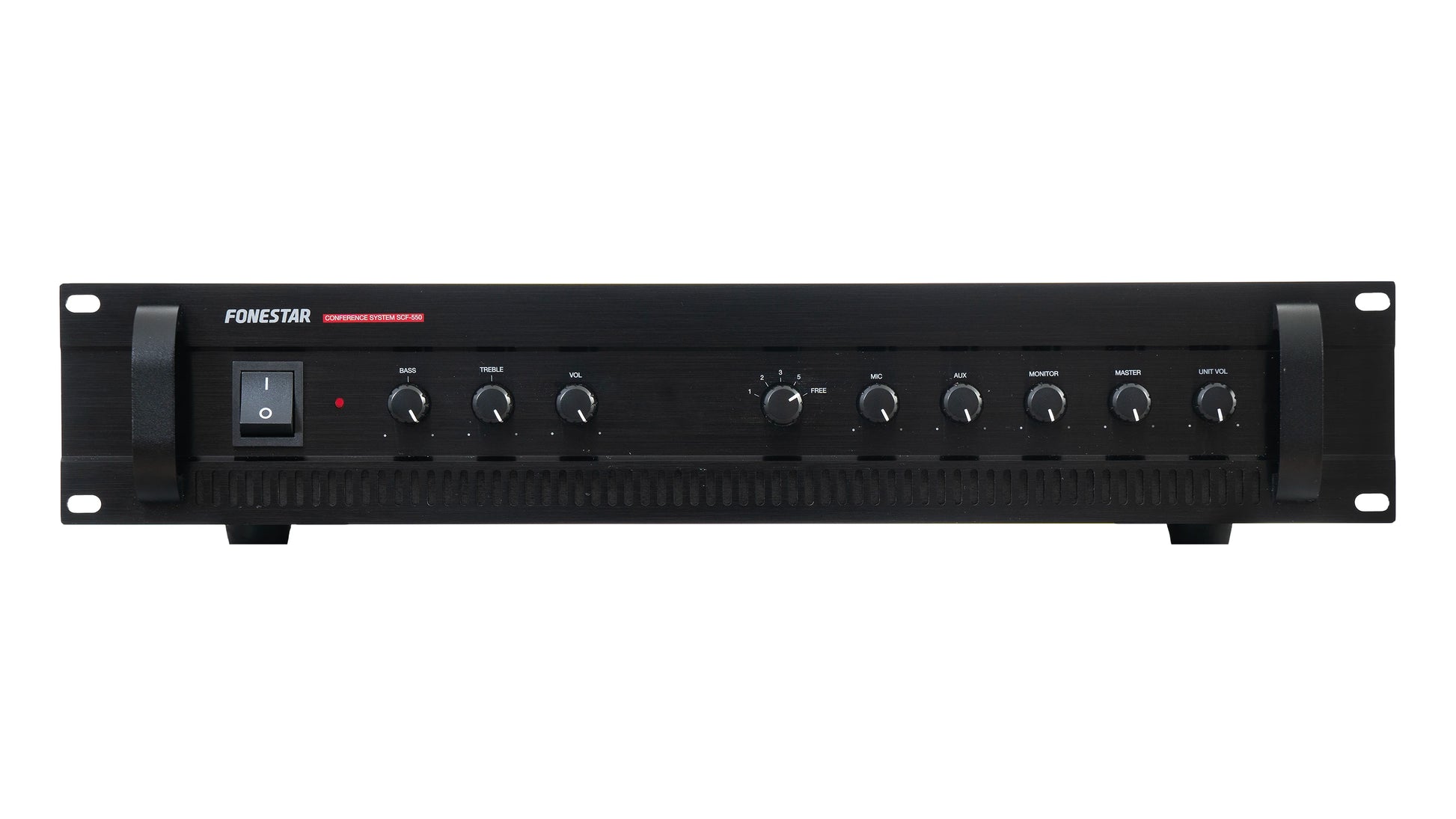

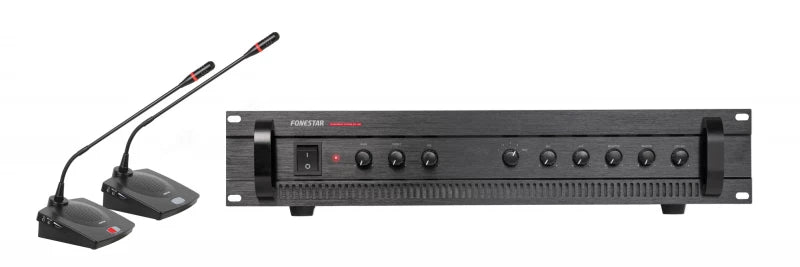

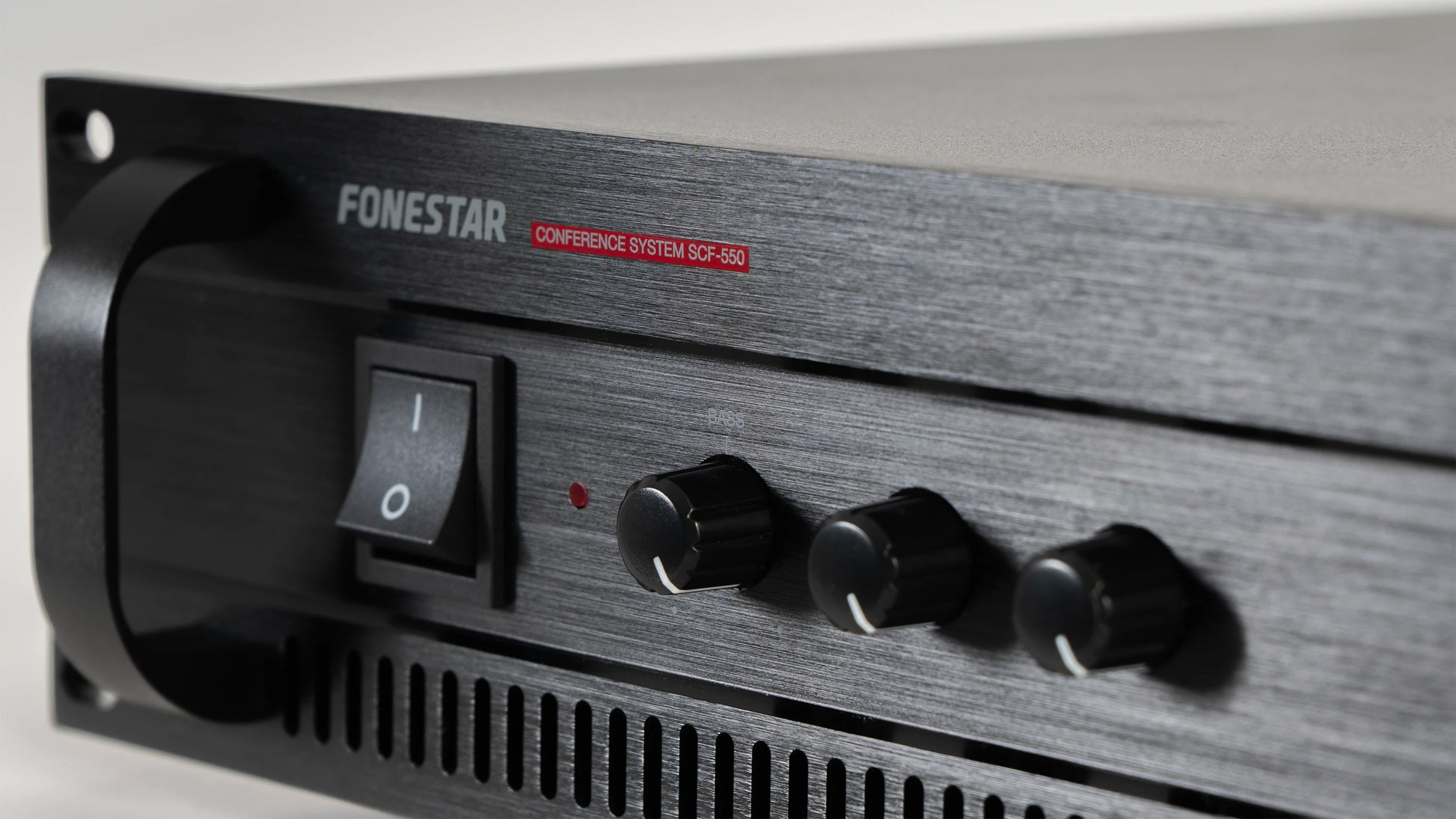

The Fonestar SCF-550 is the Control Unit for an amplified conference system, offering a simplified and powerful solution for managing debates and meetings by integrating the control functions and amplification into a single device.
Integrated Amplifier: Equipped with a powerful built-in amplifier (50 + 50 W RMS at 4-16 Ω), which reduces the total number of devices required for installation.
Microphone Capacity: Allows connection of up to 64 microphones in total via its 4 microphone groups (DIN 8 connectors). The system is extendable up to 250 microphones (inquire for details).
Active Microphone Control: Provides flexible control over the discussion by allowing selection of the maximum number of active microphones: 1, 2, 3, 5, or no limit.

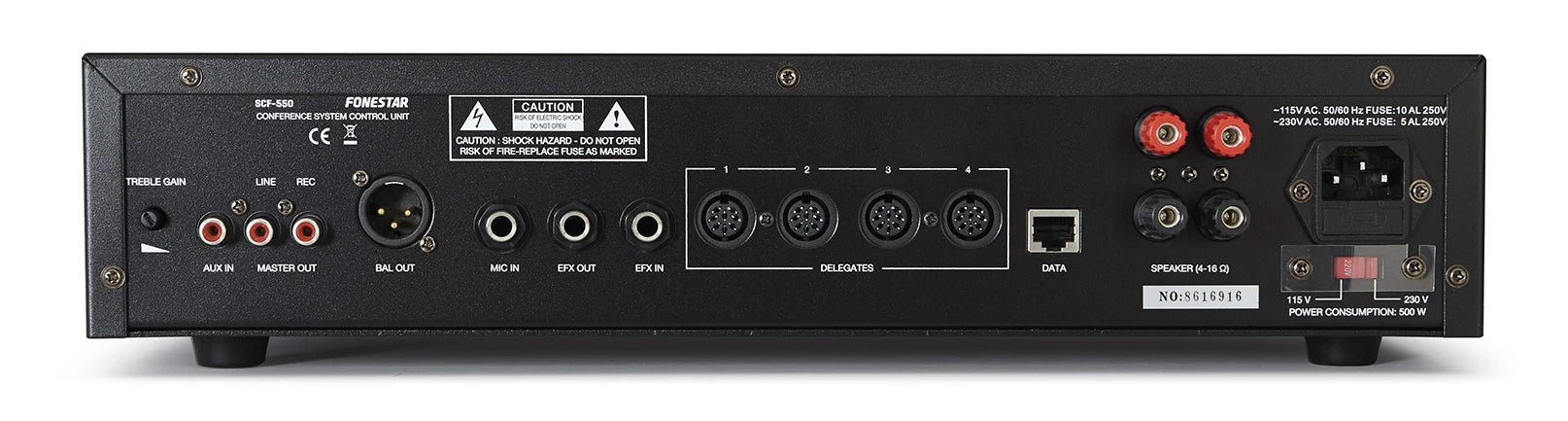

Versatile Connectivity: Offers a variety of inputs and outputs for connecting auxiliary sources, recording, and effects:
Inputs: 1 unbalanced mic. (6.3 mm jack), 1 aux (RCA), 1 efx in (6.3 mm jack).
Outputs: 1 balanced master (XLR for recording), 2 line outs (RCA), 1 efx out (6.3 mm jack).
Audio Controls: Comprehensive controls for individual input volumes (Mic.1, Aux, Monitor, Internal Loudspeaker), general volume, and tone control (bass and treble).
Quality & Compliance: Built in compliance with IEC 60914 (Conference Systems) and IEC 61603-7 (Transmission Systems) standards.
Simple Installation: Designed for easy and intuitive setup and operation.
The SCF-550 is perfect for conference and debate settings where integrated amplification and simple management are priorities, including:
Conference Rooms
Education Facilities
Offices
| Feature | Specification |
| Type | Control Unit for Amplified Conference System |
| Power Output | 50 + 50 W RMS @ 4-16 Ω (Built-in Amplifier) |
| Frequency Response | 40-18,000 Hz |
| Microphone Capacity | Up to 64 microphones (expandable to 250) |
| Microphone Inputs | 4 groups (DIN 8 connectors) |
| Active Mic Control | Selectable (1, 2, 3, 5, or no limit) |
| Inputs | 1 x Mic (6.3mm), 1 x Aux (RCA), 1 x EFX In (6.3mm) |
| Outputs | 1 x Balanced Master (XLR), 2 x Line Out (RCA), 1 x EFX Out (6.3mm) |
| Dimensions | 483 x 87 x 400 mm depth (2 U 19" rack) |
| Weight | 12 kg |
