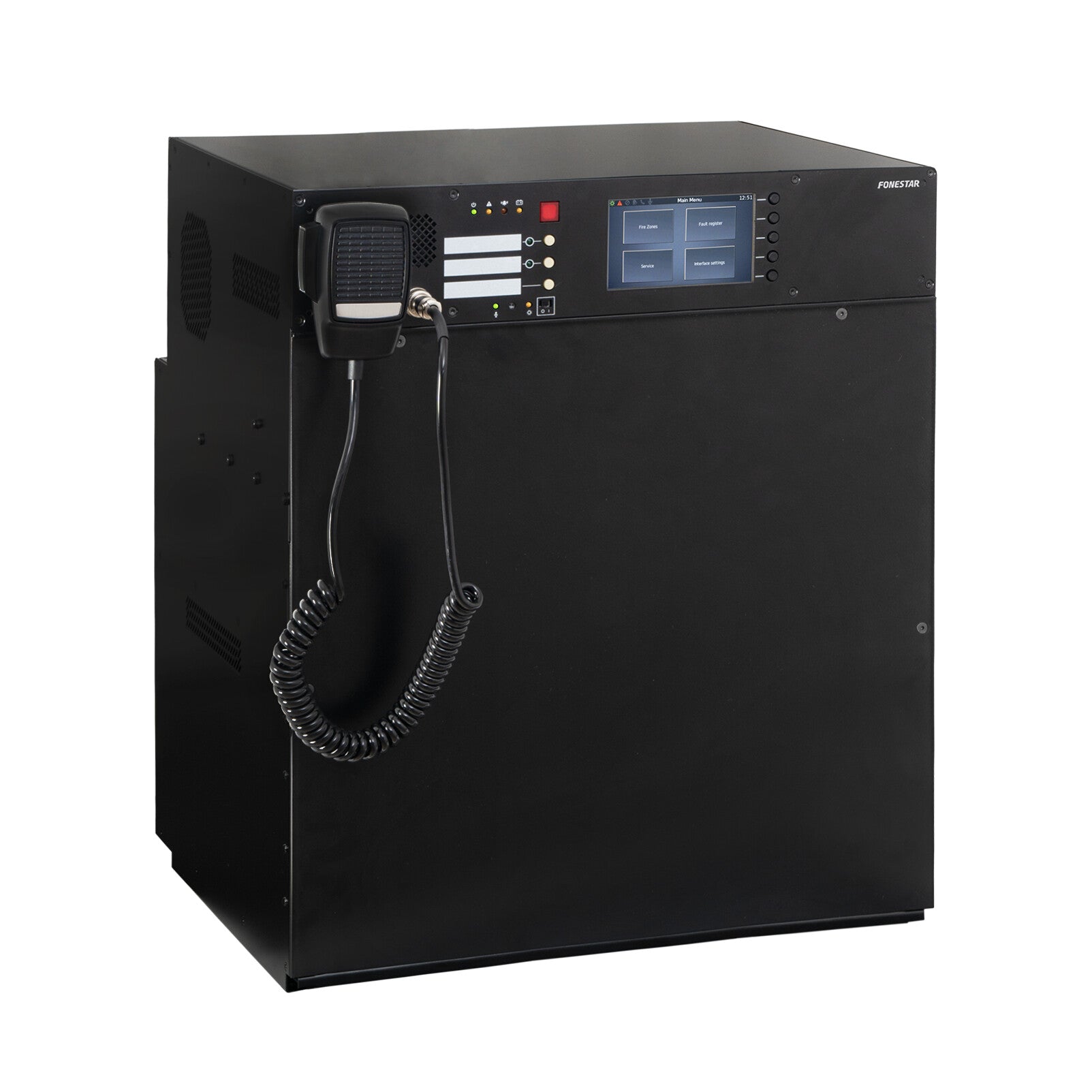

SEVEN is a scalable voice and public address alarm system, suitable for multi-purpose architectures. The SEVEN series systems are compact units containing all necessary components within one enclosure for voice alarm applications in firefighting systems, in compliance with the requirements of EN 54-16 and EN 54-4.
The SEVEN system can be expanded with up to 254 devices connected via TCP/IP data network. It allows expanding the system with control units, paging microphones and firefighters. Each device can function as a separate node, interconnected by the data network. Live paging and background music up to 45 audio signals can be transmitted via the data network. Connection with Cat5 cable.
Each system is equipped with a control unit with two Class D amplifiers distributing 100 V line signal to 2 AB zones with 4 loudspeaker lines. One amplifier functions as the main amplifier and the other as a back-up amplifier, to ensure operation at all times for emergency priority signals. It has monitoring and signalling system faults and speaker lines. It also features a firefighter's microphone, touch screen control, DSP, buttons and programmable GPI/O inputs and outputs, programmer, messages with expandable memory, etc.
The systems integrate a power supply with backup function in case of power loss, in compliance with EN 54-4. Includes a charger with space for installation of batteries.
The system has all the elements of a voice alarm system in an enclosure with IP30 protection. SEVEN is designed for easy installation and commissioning.
Due to its distributed architecture, the SEVEN system can cover all types of projects and installations, train stations, airports, hotels, shopping centres, stadiums, industrial installations, etc.
FEATURES:
Compact all-in-one public address and voice alarm system EN 54.
Based on TCP/IP distributed data network architecture.
Integrated DSP, high audio quality.
Evacuation functions, alerts, message player and background music.
Messages with 512 MB SDHC internal memory (20 minutes) expandable up to 32 GB.
Speaker line impedance monitoring.
Monitoring and failure detection.
All-in-one enclosure with IP30 protection.
Easy installation and commissioning.
Simple and intuitive PC configuration software.
In compliance with EN 54-16 and EN54-4.
ZONES:
2 zones A/B, 4 loudspeaker lines
POWER:
2 x 160 W RMS
RESPONSE:
40-20,000 Hz (@ 1 dB)
INPUTS:
1 firefighter microphone
1 stereo input, europlug, 10 kΩ 3 V RMS
7 GPI, euroblock
1 battery temperature sensor, 3.5 mm jack
1 Lan/Wan for PC connection, RJ45
2 Lan, RJ45
OUTPUTS:
4 loudspeaker lines 100 V, Euroblock
2 BUS 1 and 2 local audio line outputs for operation of the 4-line control card
1 stereo output, Scart, 1 V RMS
2 auxiliary power supply outputs, 24 V DC, 150 mA and 48 V DC, 350 mA
3 GPO, euroblock
TEMPERATURE:
Operation: -5ºC ~ 40ºC
Storage: -20ºC ~ 70ºC
HUMIDITY:
15% ~ 80% (non-condensing)
POWER SUPPLY:
230 V AC, 50/60Hz, 600 W
(Control unit +48 V DC Battery, Euroblock)
DIMENSIONS:
440 x 525 x 350 mm depth
Mounting option with 4 x 10 mm mounting holes in the rear panel.
WEIGHT:
24 kg
ACCESSORIES:
Communications microphone (firefighter)
Battery cable
AC power cable
