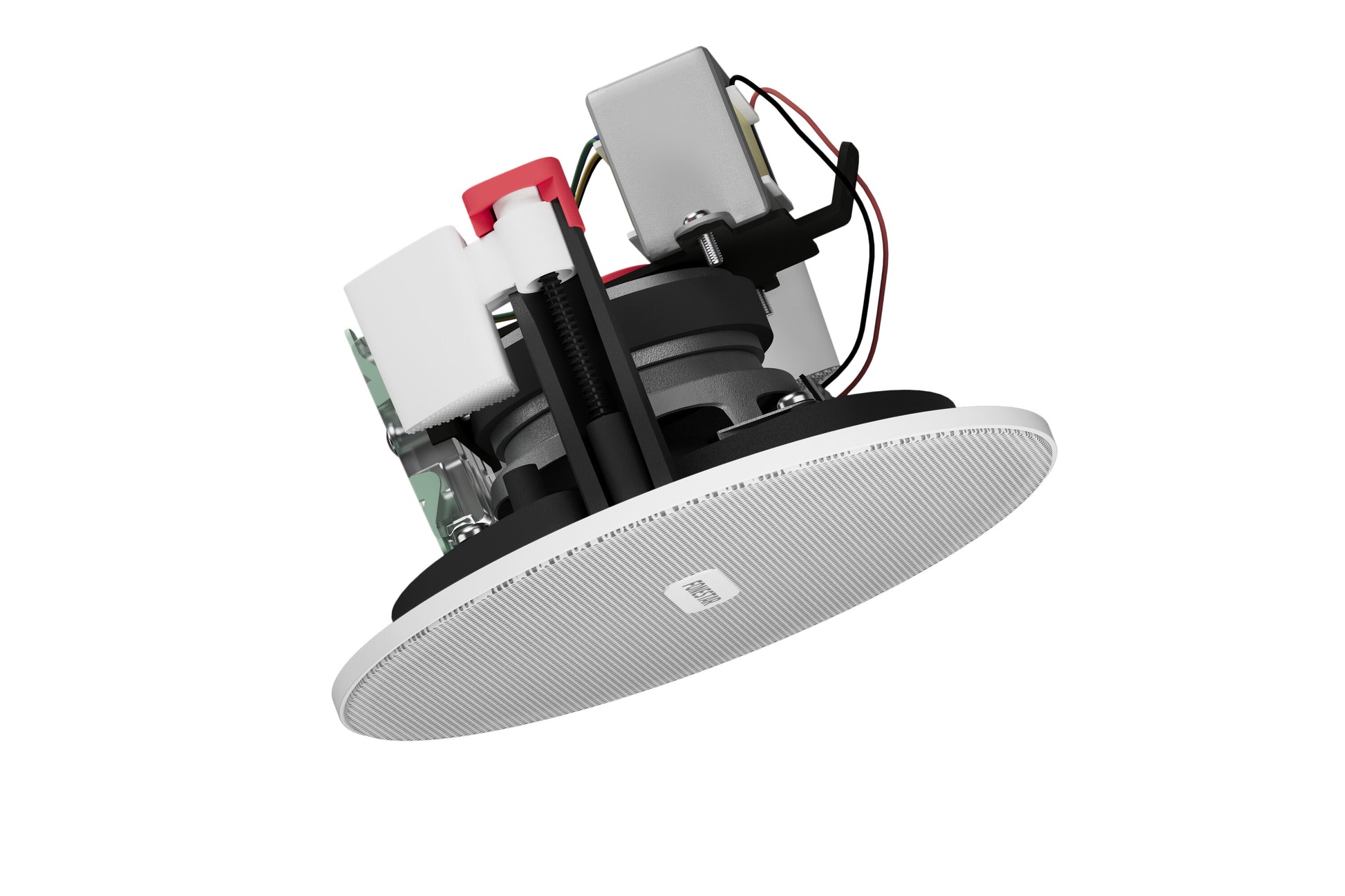

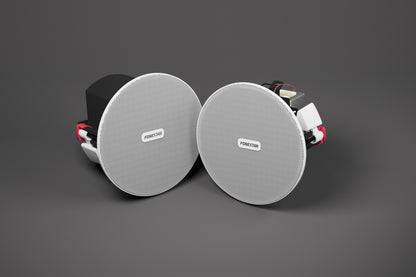

SKY-3T: Frameless 3" Ceiling Speaker with 100V Transformer

The SKY-3T is an elegant, high-performance ceiling speaker engineered for background music and public address in professional environments. Featuring a frameless aluminium grille and a compact 3" driver, it provides a clean, minimalist look without compromising on sound quality or durability.

Minimalist Design, Maximum Integration

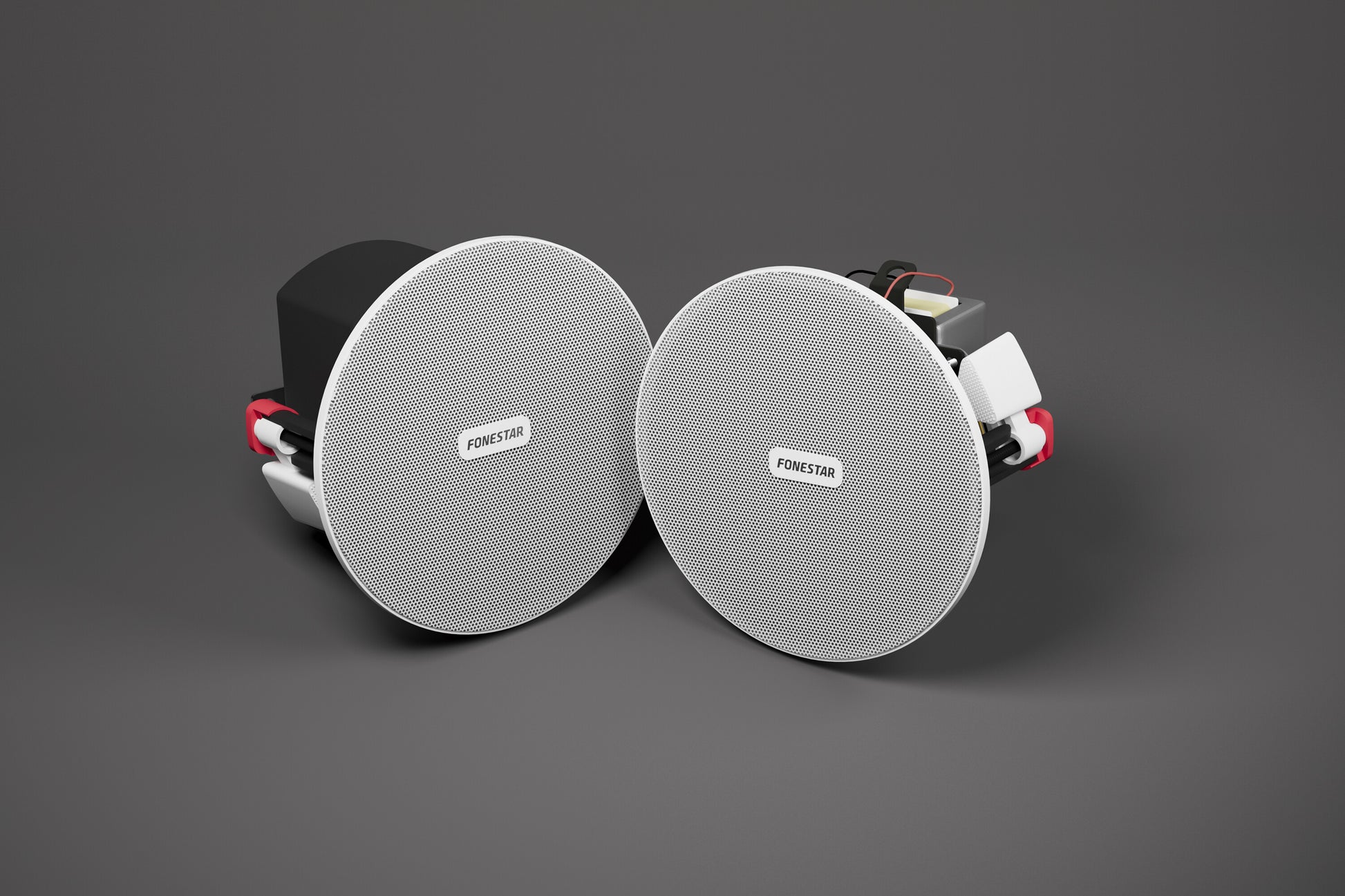

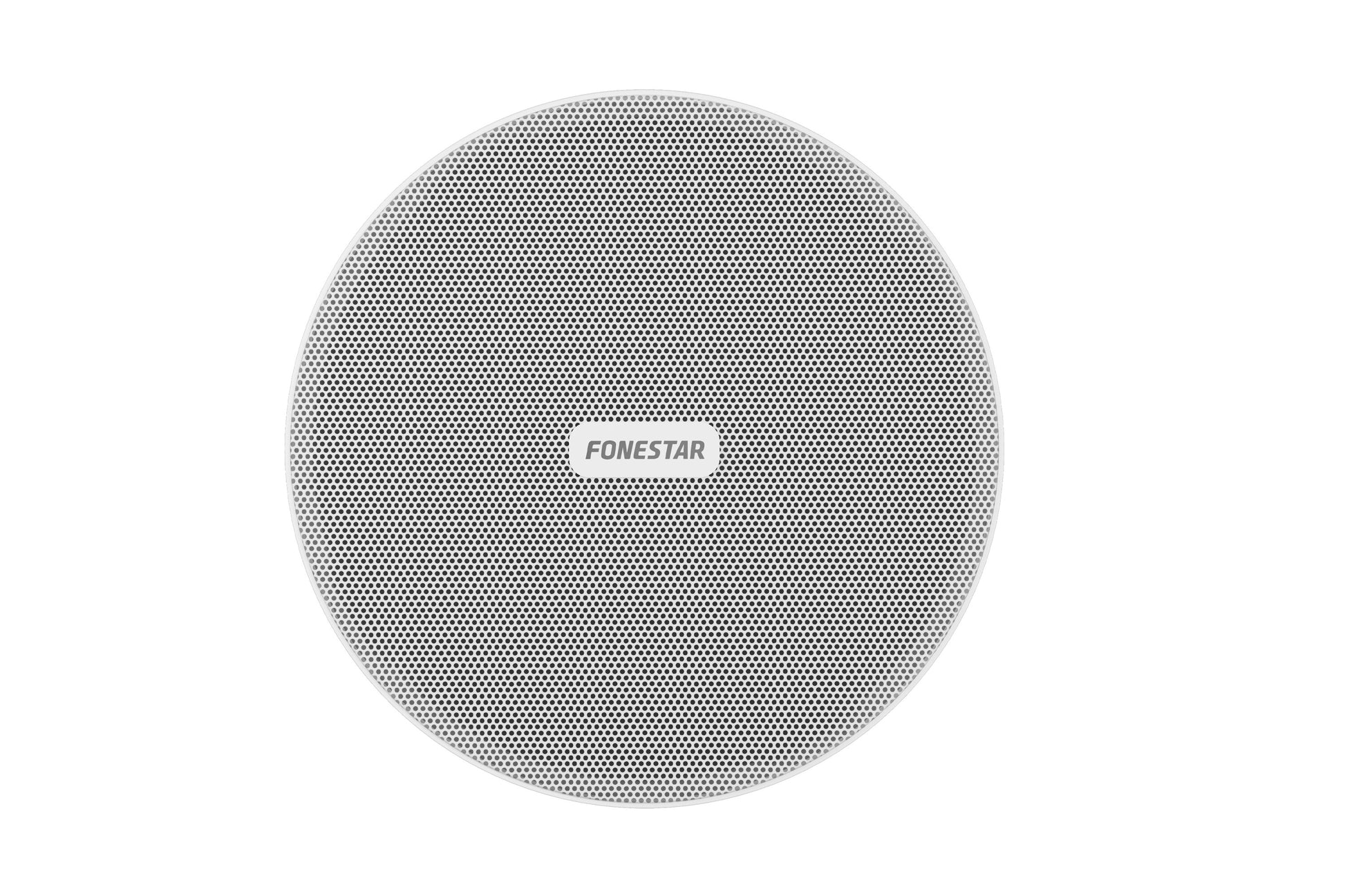

Designed for the modern installer, the SKY-3T features a frameless, low-profile aluminium grille that is resistant to oxidation. The grille is removable and lockable by rotation, and for total architectural integration, the logo can be removed and the grille painted to match any ceiling colour.

Engineered for Performance

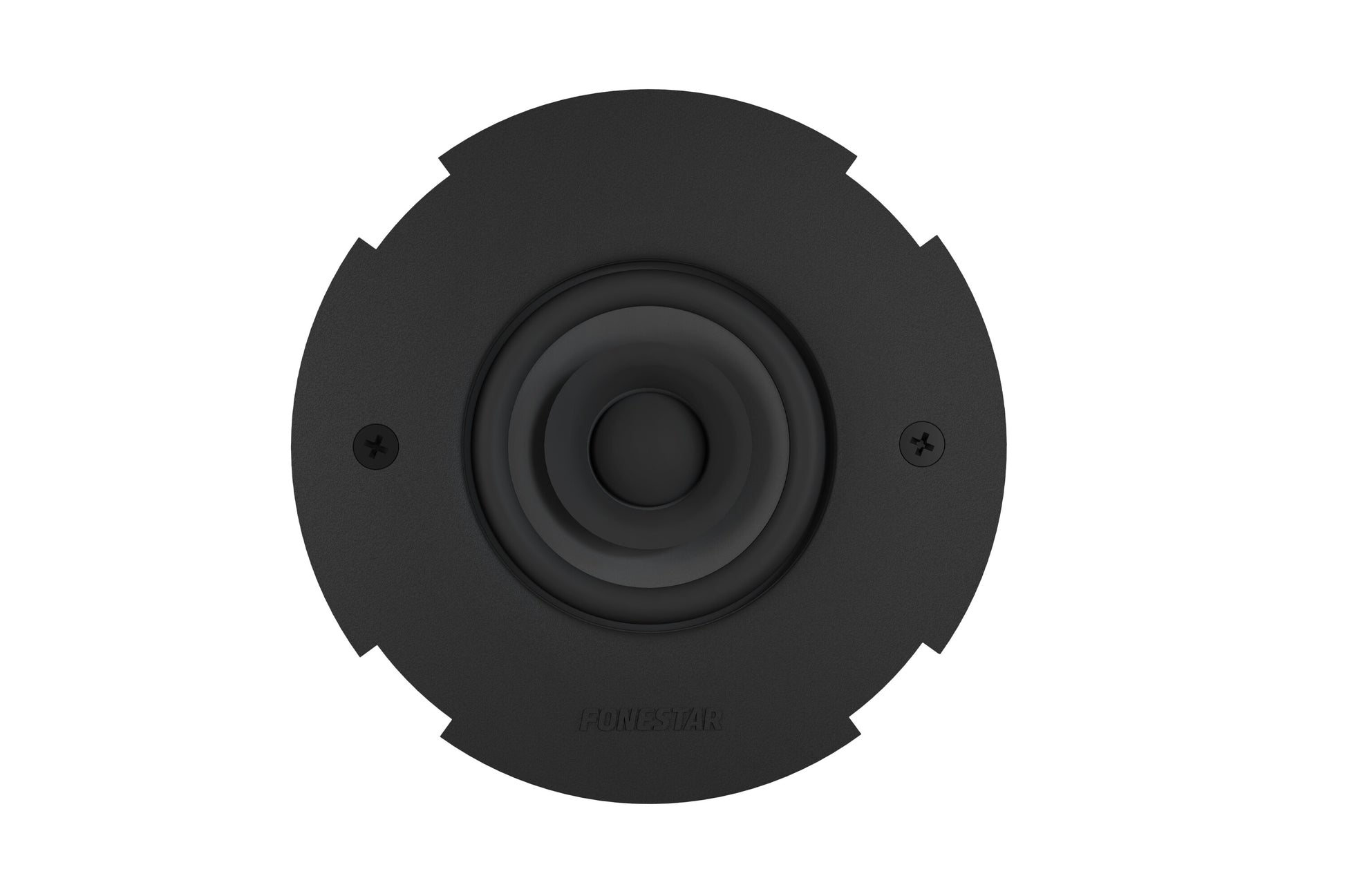

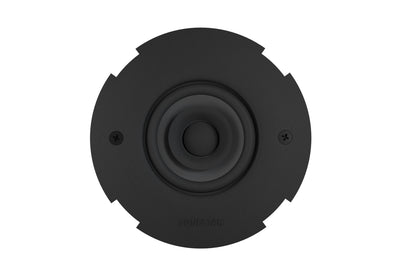

Despite its compact size, the SKY-3T delivers a wide frequency response of 70Hz to 20,000Hz. The 3" polypropylene dual-cone diaphragm ensures clear, crisp audio reproduction, while the 150º wide coverage angle ensures uniform sound distribution with fewer units required.

Built for Demanding Environments

The SKY-3T is built to last. Rated at IP-44, it is resistant to dust and water splashes, making it suitable for use in humid environments or covered outdoor areas. The UV-resistant ABS construction and salt-spray tested aluminium grille ensure it remains in peak condition even in challenging climates.

Key Features:

• Frameless Aesthetics: Ultra-low profile grille for a discreet, modern finish.

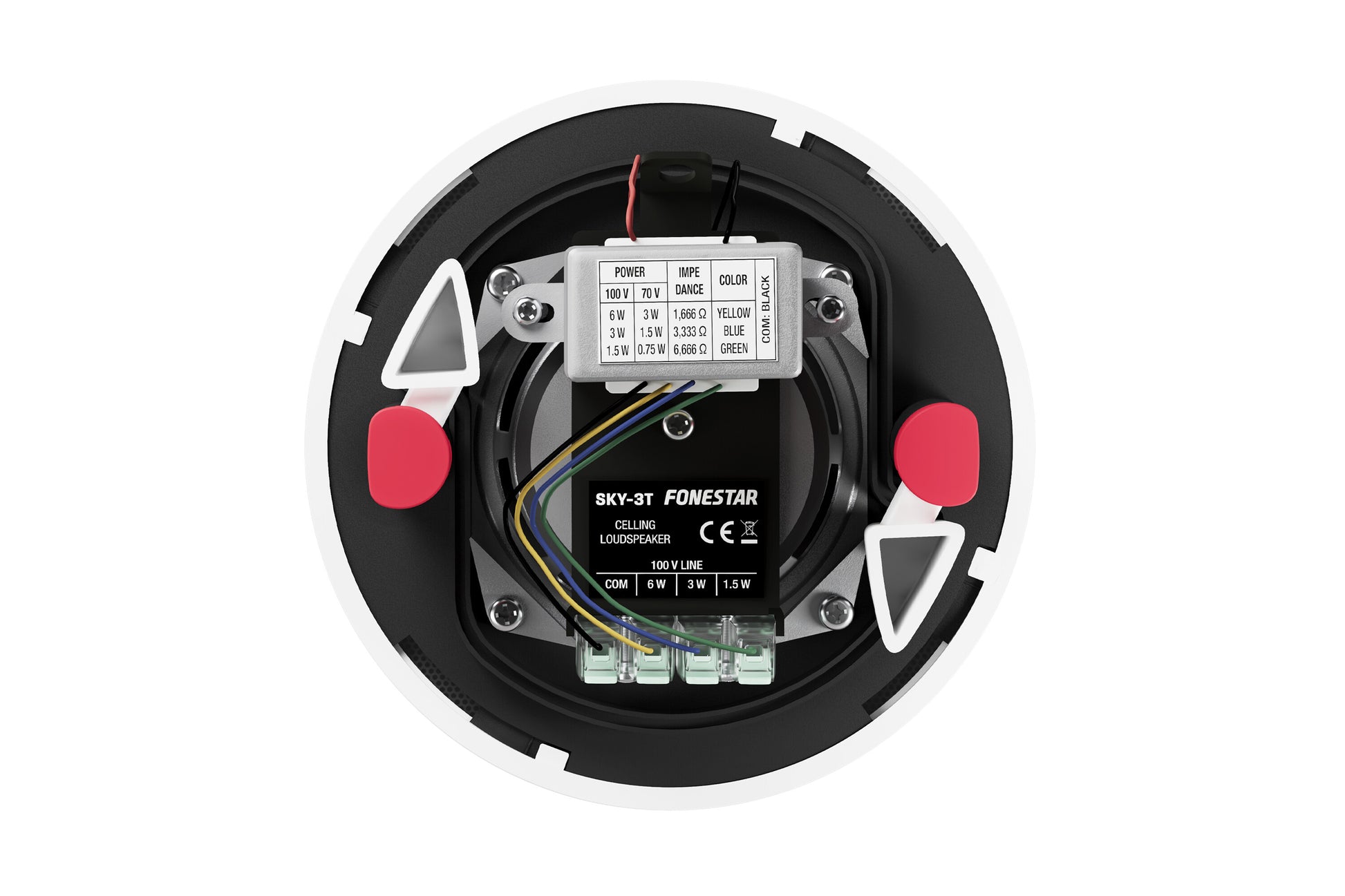

• 100V/70V Versatility: Built-in transformer with multiple power taps (6W, 3W, 1.5W, 0.75W).

• Wide Coverage: 150º dispersion for even sound across large areas.

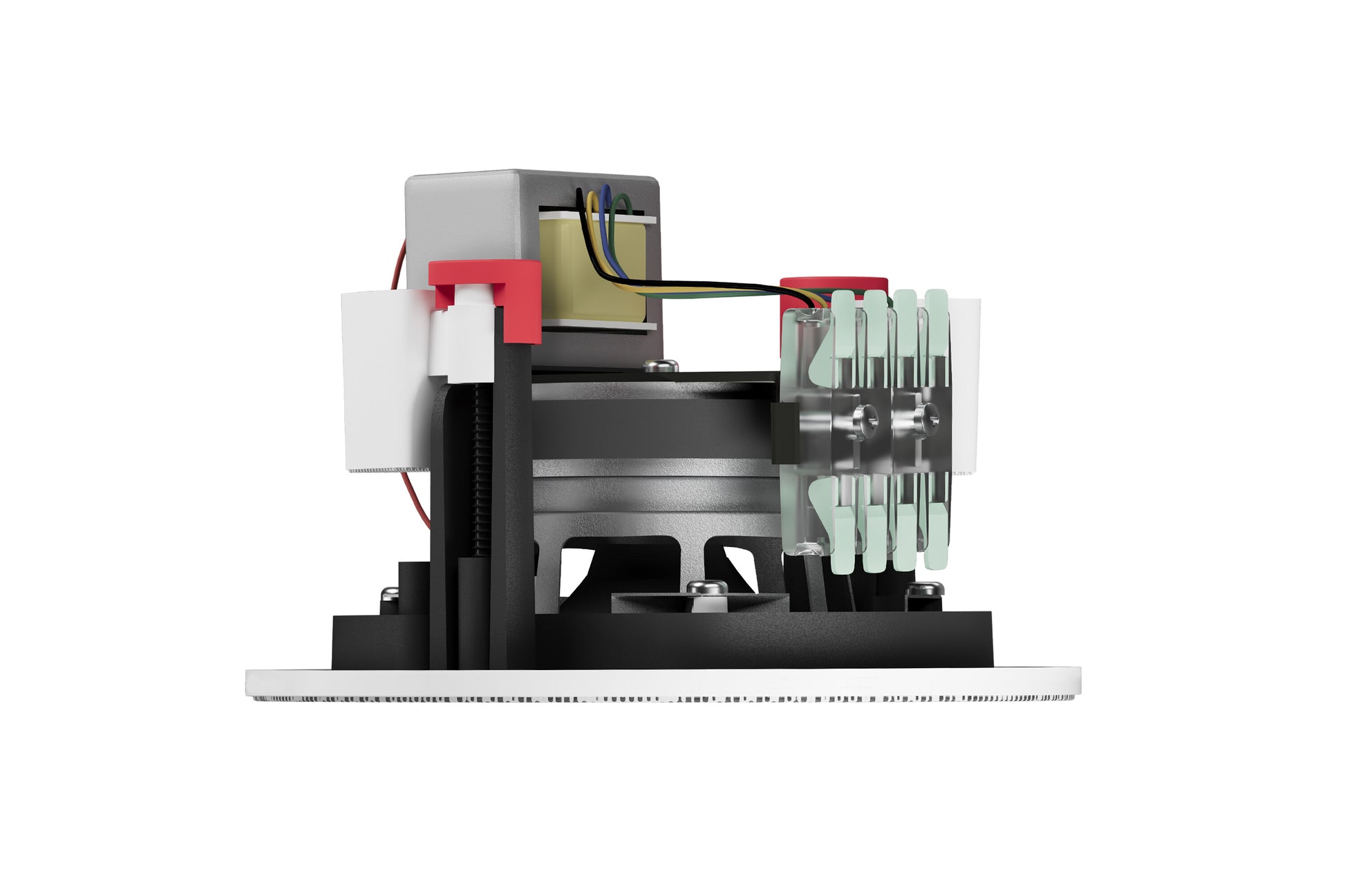

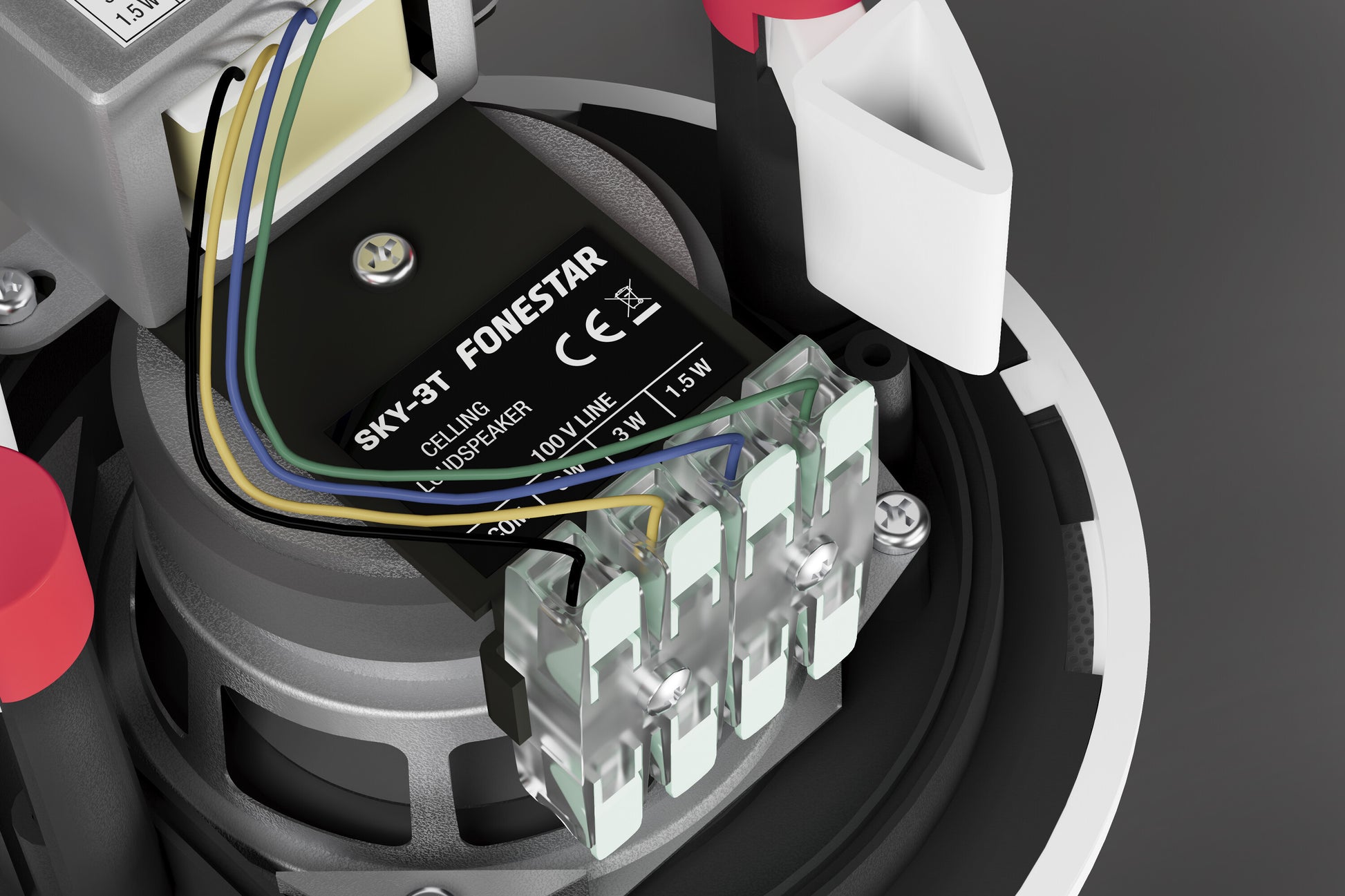

• Installer-Friendly: Quick-connect terminals and a stable worm-screw mounting system.

• Weather Resistant: IP-44 rated and oxidation-resistant for long-term reliability.

• Customisable: Paintable grille and removable logo for perfect décor matching.

Ideal Applications:

• Retail & Boutiques: Discreet high-quality background music.

• Hotels & Spas: Reliable performance in humid or high-traffic areas.

• Offices & Boardrooms: Crystal-clear speech for announcements and conferencing.

• Public Buildings: Durable, long-lasting audio for hallways and lobbies.

Technical Specifications:

• Speaker Type: 3" Polypropylene dual-cone

• Power (100V Line): 6W / 3W / 1.5W RMS

• Frequency Response: 70 – 20,000 Hz (-10 dB)

• Sensitivity: 86 dB @ 1W/1m

• Max SPL: 94 dB Continuous

• Coverage Angle: 150º

• Protection Rating: IP-44

• Installation Hole: 117 mm Ø (Note: Datasheet indicates 117mm cutout for 144mm total diameter)

• Dimensions: 144 mm Ø x 85 mm Depth

• Weight: 0.58 kg

Combine style and substance in your next installation with the SKY-3T – the low-profile solution for high-quality ceiling audio.
