RRP
Regular price £32.00inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

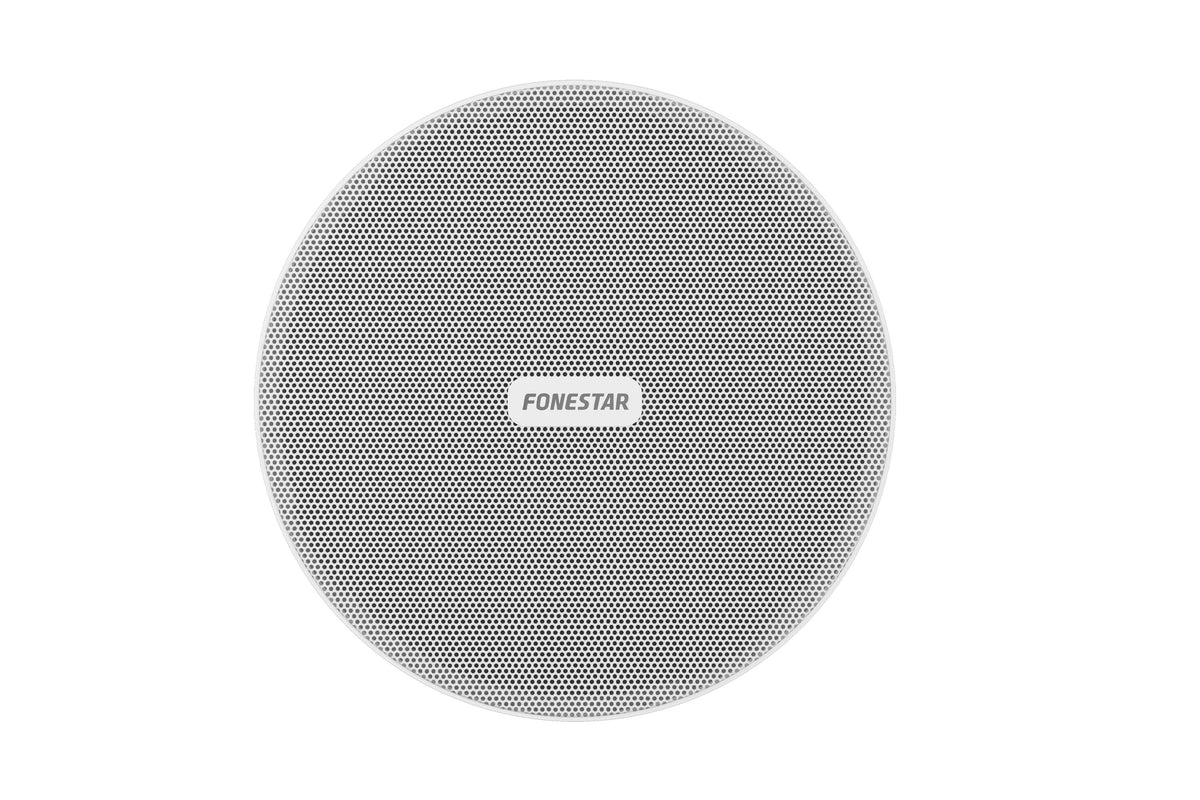

The Fonestar SKY-3XT is a 3" ceiling speaker with a 100 V line transformer, designed by Fonestar to combine aesthetics and functionality in professional sound installation projects. Its frameless, low-profile aluminium grille resists oxidation and gives a discreet, modern finish. The grille is removable, locks into place by rotation, and can be customised: the logo can be removed and the grille painted to suit the surroundings.
With IP66 protection against dust and water and materials that resist corrosive environments, high temperature and humidity (sauna), it is ideal for demanding indoor and outdoor public address projects in hospitality, retail, hotels and beyond.
| Feature | Specification |
| Features | Ceiling speaker with 100 V line transformer Protective dome-type rear cover Frameless, low-profile, oxidation-resistant aluminium grille; removable, lockable by rotation; logo can be removed and grille painted High-conductivity quick-connect terminals Safety cable hook Stable ceiling mounting brackets with worm-screw system Protection against dust and water Resistant to corrosive environments, high temperature and humidity (sauna) |
| Power | 6 W RMS 12 W max. |
| Speaker | 3" polypropylene diaphragm |
| Frequency Response | 110 - 17,000 Hz (-10 dB) 140 - 16,000 Hz (-3 dB) |
| Impedance | 6 W RMS @ 100 V (1,666 Ω) 3 W RMS @ 100 V / 70 V (3,333 Ω / 1,633 Ω) 1.5 W RMS @ 100 V / 70 V (6,666 Ω / 3,266 Ω) 0.75 W RMS @ 70 V (6,533 Ω) |
| Sensitivity | 83 dB @ 1 W / 1 m |
| Sound Pressure | 91 dB @ max. W / 1 m continuous 94 dB @ max. W / 1 m peak |
| Coverage Angle | 150º @ 1 kHz (-6 dB) |
| Protection | IP66 tested according to IEC 60529 Corrosive gas (96 h) tested according to IEC 60068-2-60 Humidity (95%, 40 ºC, 96 h) tested according to IEC 60068-2-78 Dry heat (100 ºC, 72 h) tested according to IEC 60068-2-2 |
| Material | PC and ABS (UV and high-temperature resistant) Aluminium grille with liquid paint |

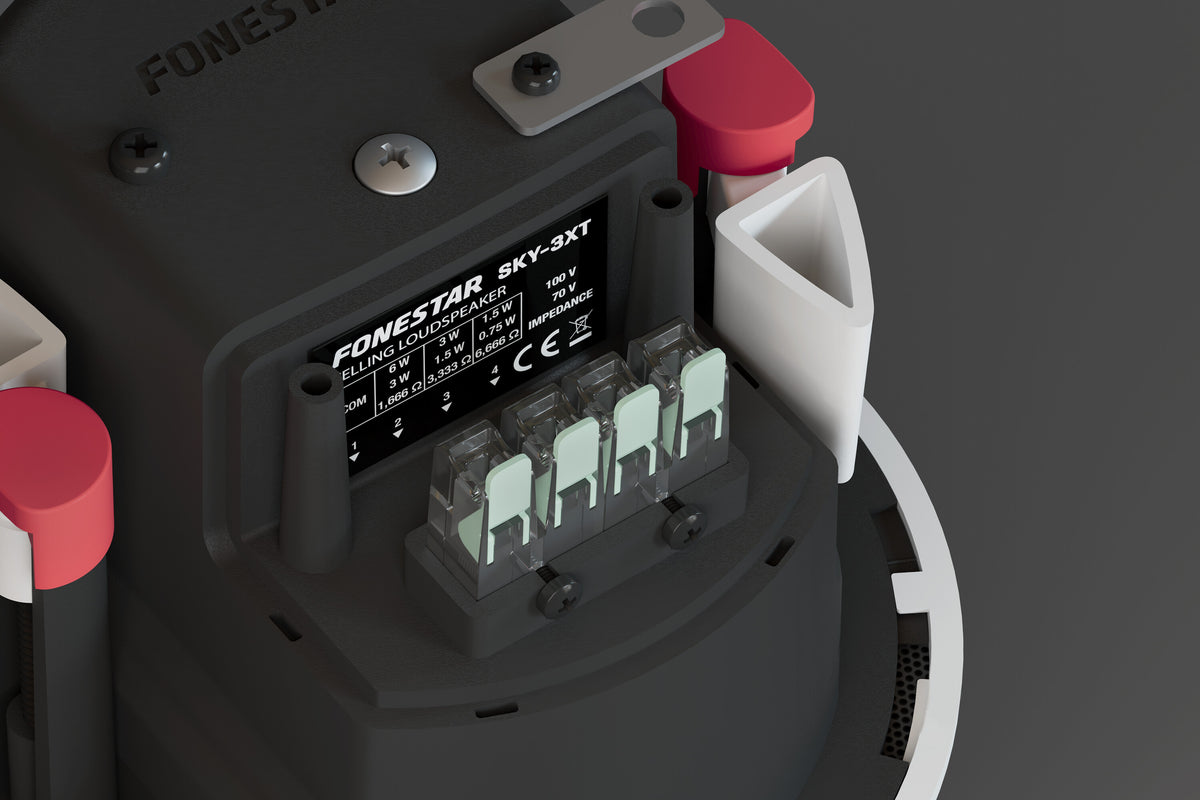

| Connectors | High-conductivity quick-connect terminals Conductor cross-section 0.4 - 4 mm² Rubber grommet for 6 - 7 mm Ø round cable |
| Operating Temperature | -20 ºC to 100 ºC (96 h) |
| Storage Temperature | 10 ºC to 40 ºC |
| Maximum Humidity | 95% |
| Colour | White (RAL 9003) |

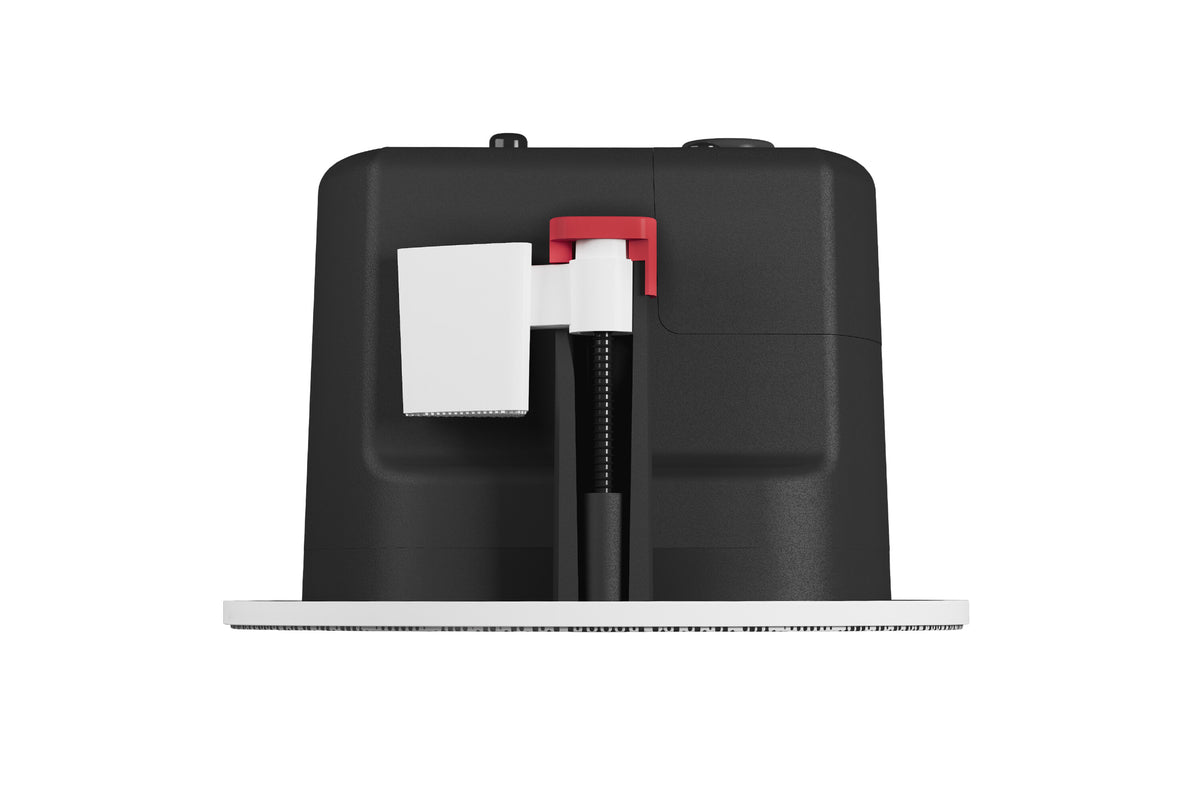

| Dimensions | Overall: 144 mm Ø x 92 mm height Grille section: 5 mm Recessed height: 87 mm Installation hole: 117 mm Ø Maximum ceiling thickness: 30 mm |
| Weight | 0.65 kg |
