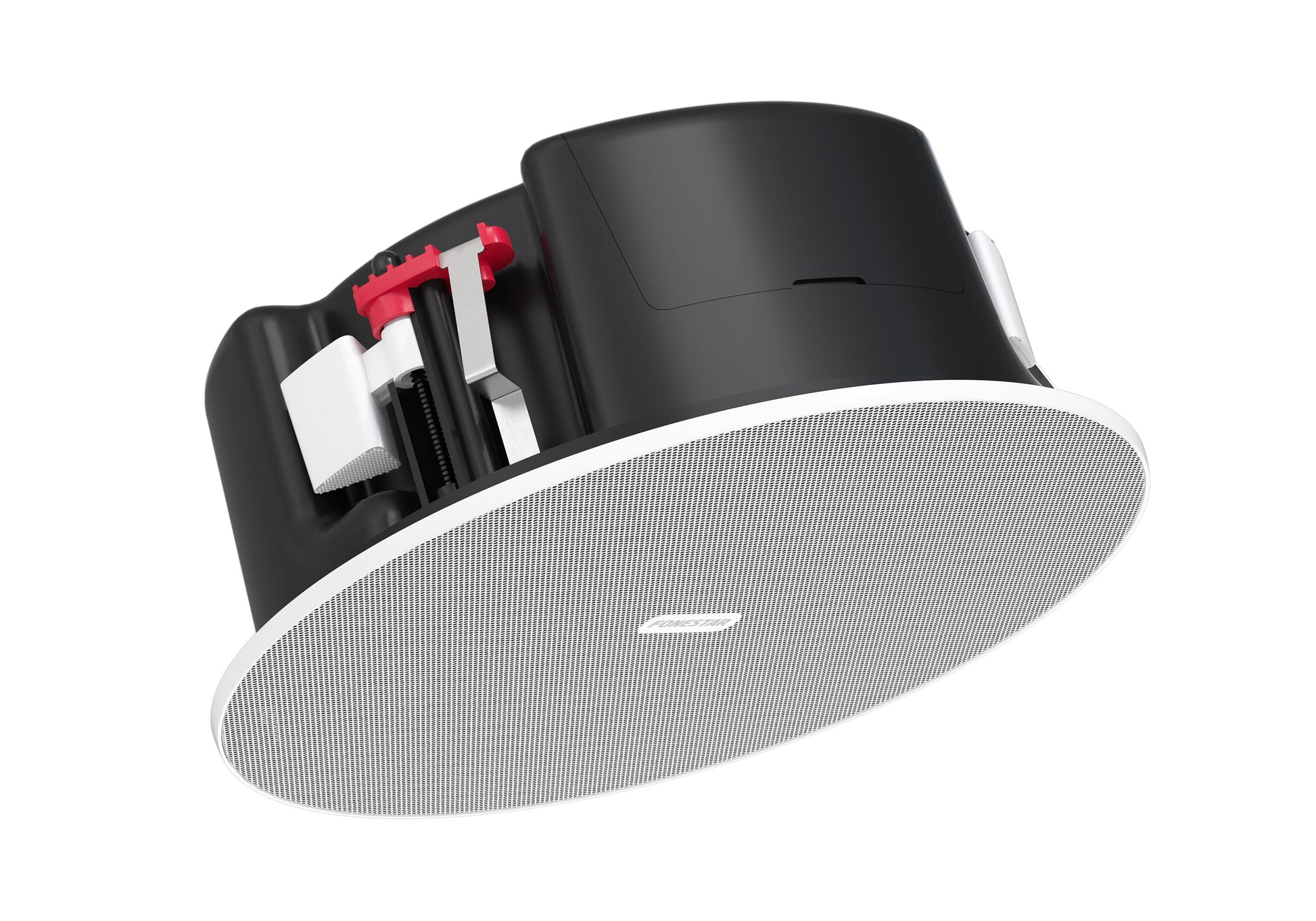

Fonestar SKY-6T-DOME Coaxial Ceiling Loudspeaker

The Fonestar SKY-6T-DOME is a high-quality coaxial ceiling loudspeaker designed for versatile installations, supporting both 100 V line (High Impedance) and 8 Ω (Low Impedance) systems. It features a larger 6-inch woofer and an IP-65 rating with a protective dome back cover for superior sound and durability in demanding environments.

Key Features:

• Type: Ceiling Loudspeaker with 100 V line transformer and Low Impedance (8 Ω) capability.

• Speaker Drivers: Coaxial system with a 6'' polypropylene woofer and a 1'' adjustable tweeter.

• Impedance/Power Taps (Selectable):

  • High Z (100 V): 20 W, 10 W, 5 W, 2.5 W RMS

  • High Z (70 V): 10 W, 5 W, 2.5 W, 1.25 W RMS

  • Low Z: 8 Ω

  • Note: Power is selected via a front-accessible switch.

• Power (Max):

  • RMS: 20 W (Low Z/100V)

  • Maximum: 25 W

• Audio Performance:

  • Frequency Response: 45–20,000 Hz (wider bass response than SKY-5T).

  • Sensitivity: 90 dB @ 1 W/1 m.

  • Max Sound Pressure: 106 dB (Peak).

  • Coverage Angle: 150º @ 1 kHz.

• Protection: IP-65 rating against dust and water.

• Design & Installation:

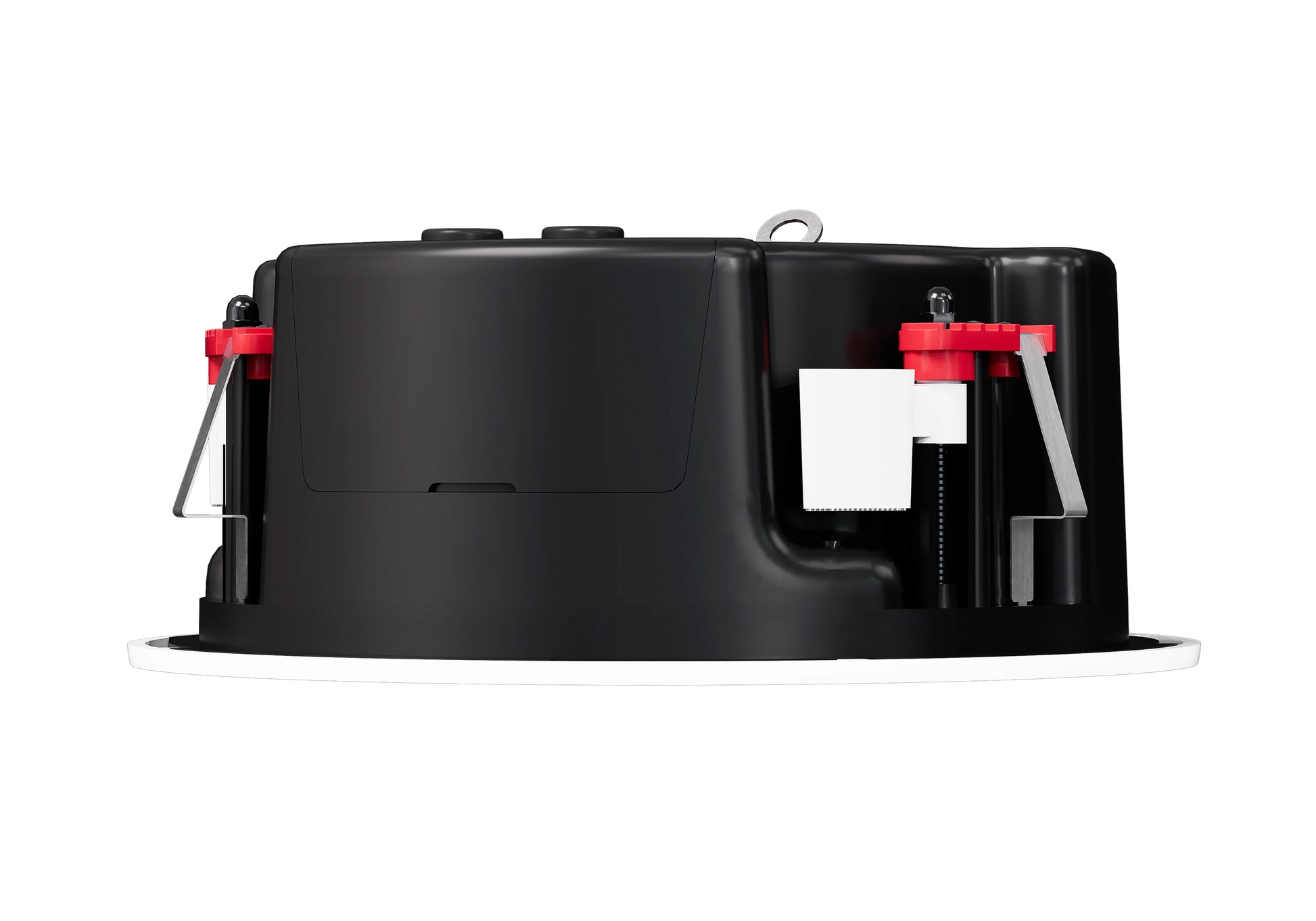

  • Protective Dome Back Cover (ideal for limited space and fire protection compliance).

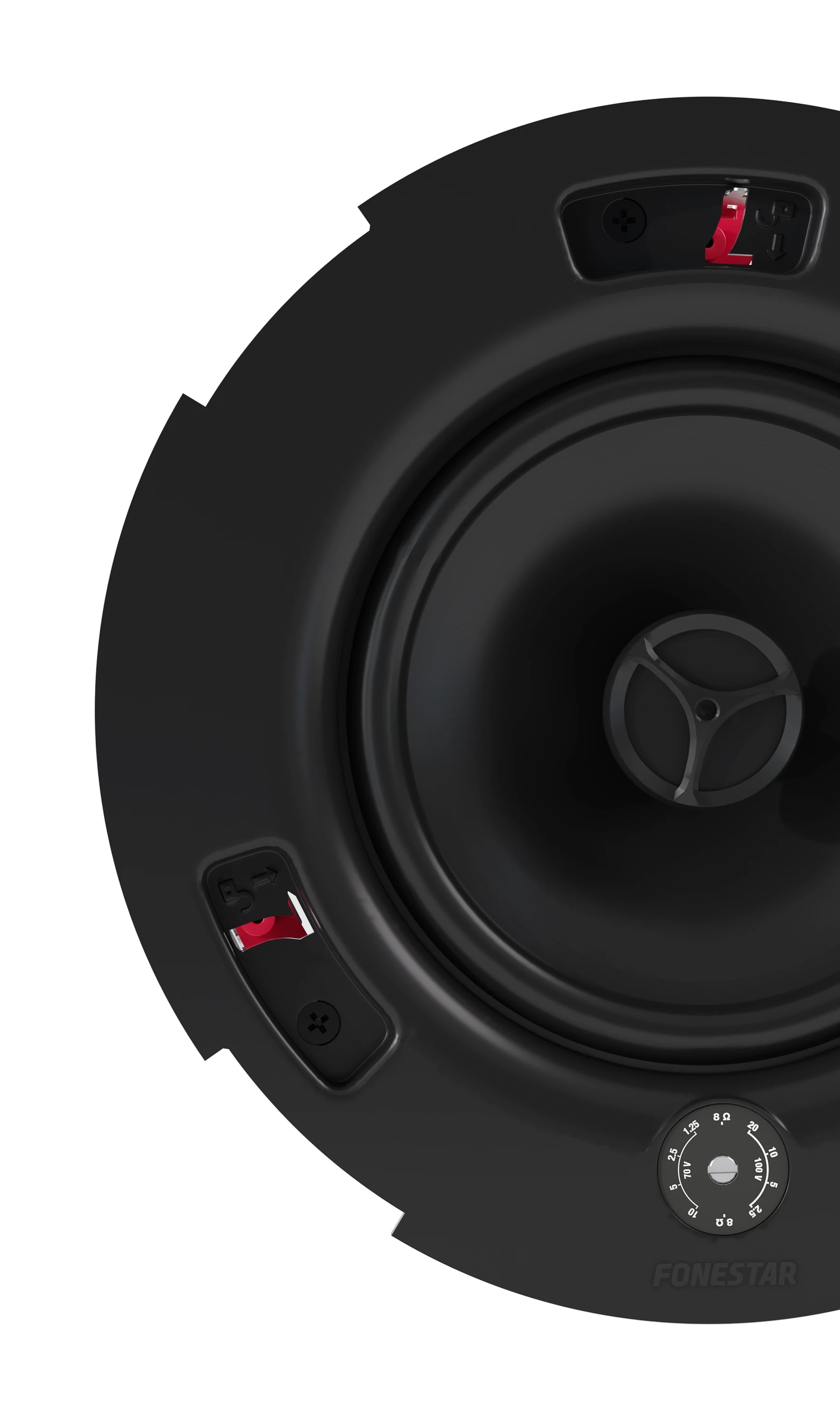

  • Low-profile, frameless aluminium grille (detachable, paintable).

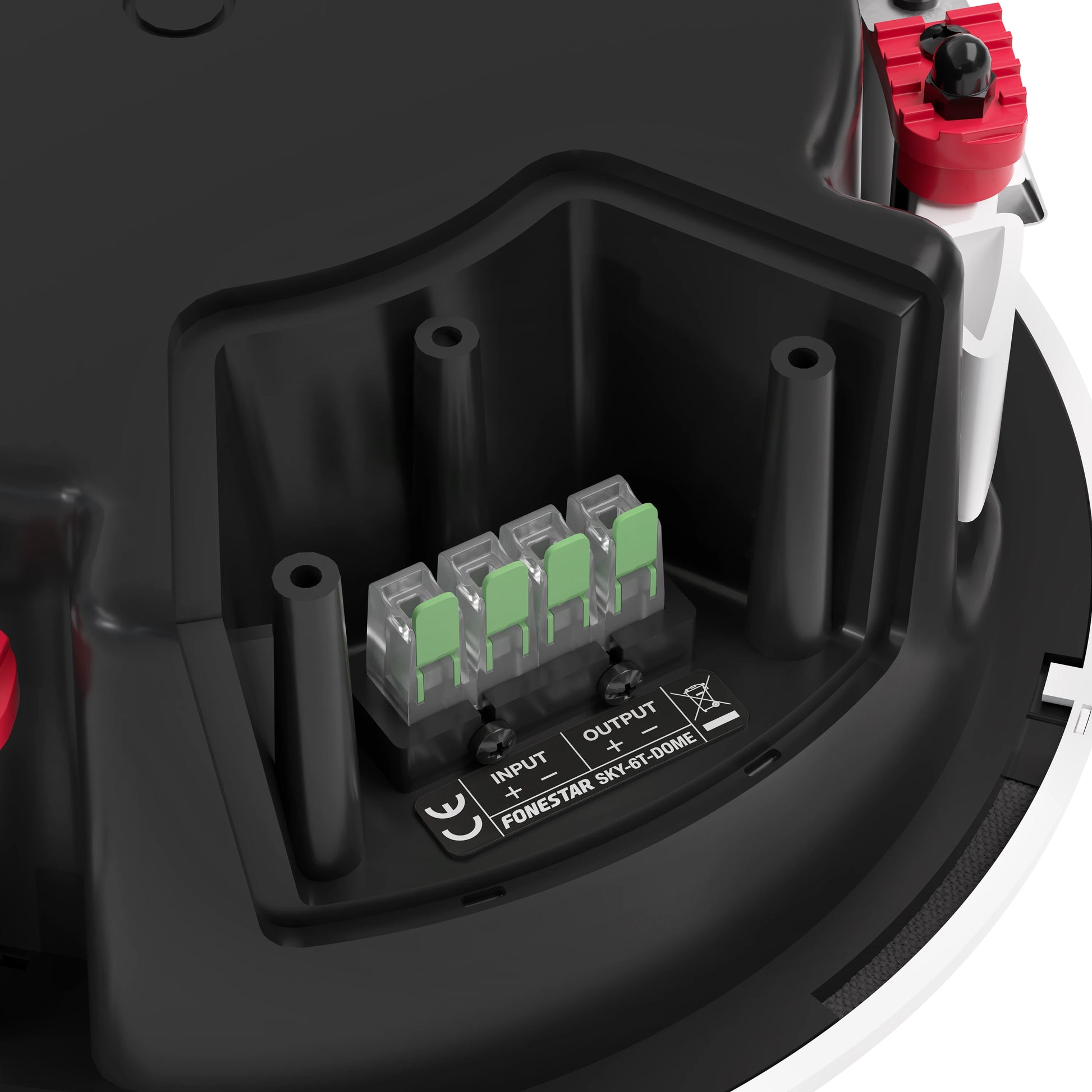

  • Junction box in the rear cover with inlet and outlet ports.

  • Anti-fall system, safety cable hook, and stable ceiling brackets.

Technical Snapshot:
