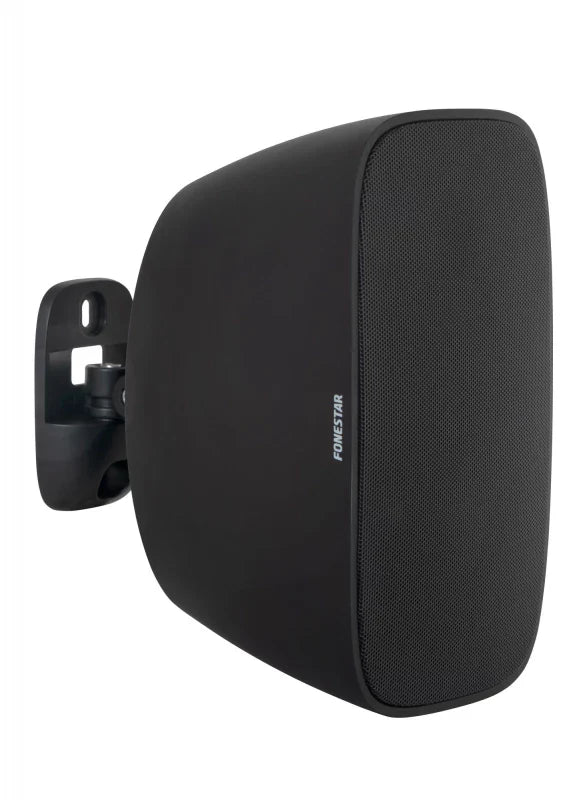

FEATURES: Loudspeaker for voice alarm systems EN 54
Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.
INTENDED USE: Loudspeaker for voice alarm systems
STANDARDS: EN 54-24 certified
Fire detection and fire alarm systems - Part 24: components of voice alarm systems - Loudspeakers EN 54-24: 2008
POWER: 80 W max., 40 W RMS
LOUDSPEAKERS: 1 x 5 ¼" woofer
1 x 1” tweeter
RESPONSE: 80-20,000 Hz
IMPEDANCE: 40 W RMS @ 100 V (250 Ω)
20 W RMS @ 100 V (500 Ω)
10 W RMS @ 100 V (1,000 Ω)
5 W RMS @ 100 V (2,000 Ω)
Low Z: 8 Ω
SENSITIVITY: 86 dB @ 1 W/1 m
74 dB @ 1 W/4 m
MAXIMUM SOUND PRESSURE: 99 dB @ max. W/1 m
89 dB @ max. W/4 m
COVERAGE ANGLE: H/V (-6 dB) : 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz
PROTECTION: Type B (EN 54-24)
IP-66 in compliance with EN 60529
IEC 60068-2-11 Enviromental tests (Salt mist)
MATERIAL: ABS 5VB
Aluminium grille
Stainless steel screws

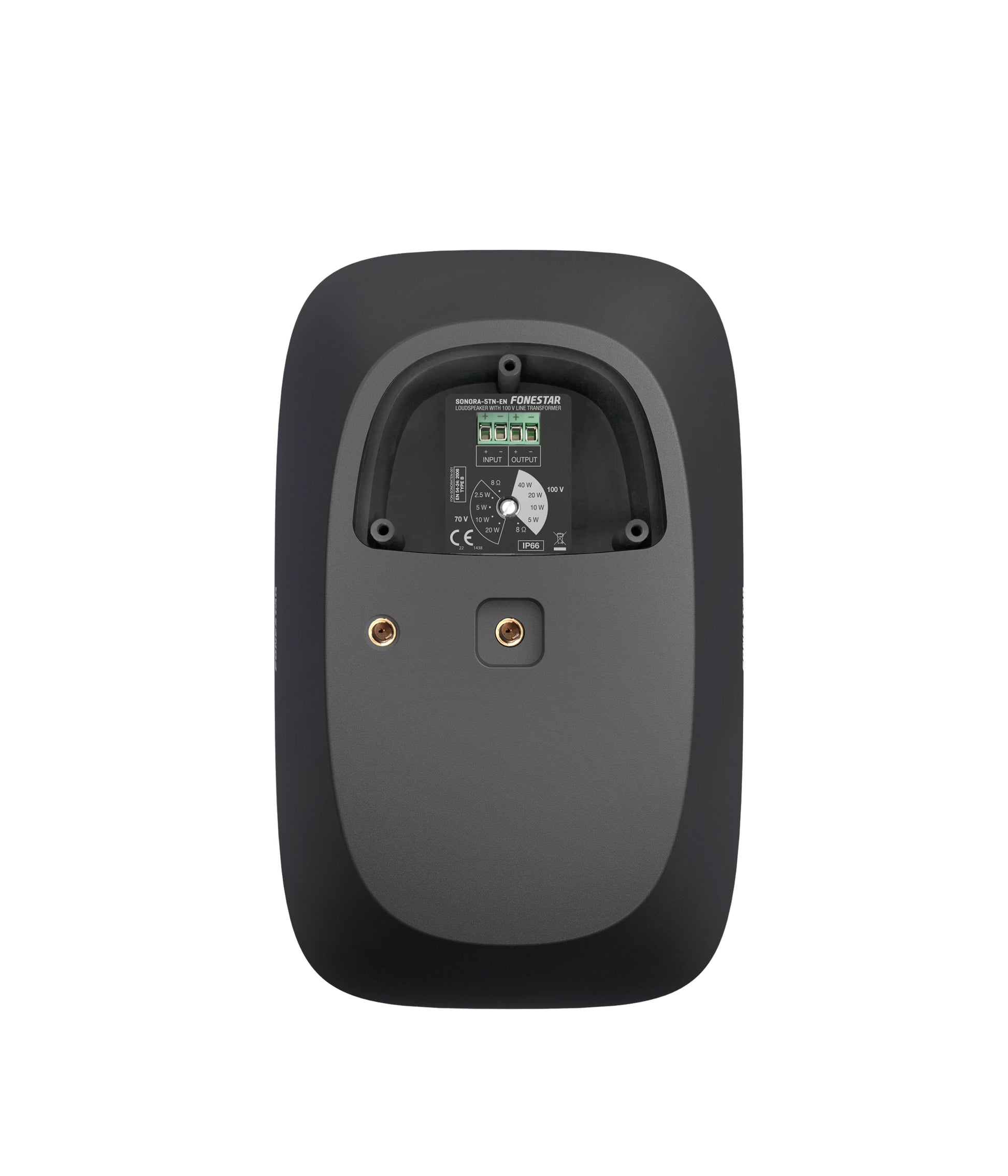

SWITCH: W selector in high Z and low Z
CONNECTORS: Euroblock for cable 0.25 - 2.5 mm² cross section
TEMPERATURE RANGE: -10ºC ~ 60ºC
COLOUR: Black (RAL 9004)
DIMENSIONS: 162 x 262 x 147 mm depth
WEIGHT: 2.2 kg
ACCESSORIES: Adjustable fixing mountt ± 60º in all directions.
Steel safety cable
