FONESTAR TAB-10-16 10" Android Touch Screen for NMX Matrix System

FONESTAR TAB-10-16 10" Android Touch Screen for NMX Matrix System

RRP

£489.95

inc VAT

£489.95
Sold out
Tax included. Shipping calculated at checkout.
Fonestar TAB-10-16 10'' Android Touch Screen   The Fonestar TAB-10-16 is a 10-inch Android-based touch screen designed to run the customizable user interface App for the NMX series digital audio...
Vendor: FONESTAR
SKU: TAB-10-16

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

Fonestar TAB-10-16 10'' Android Touch Screen

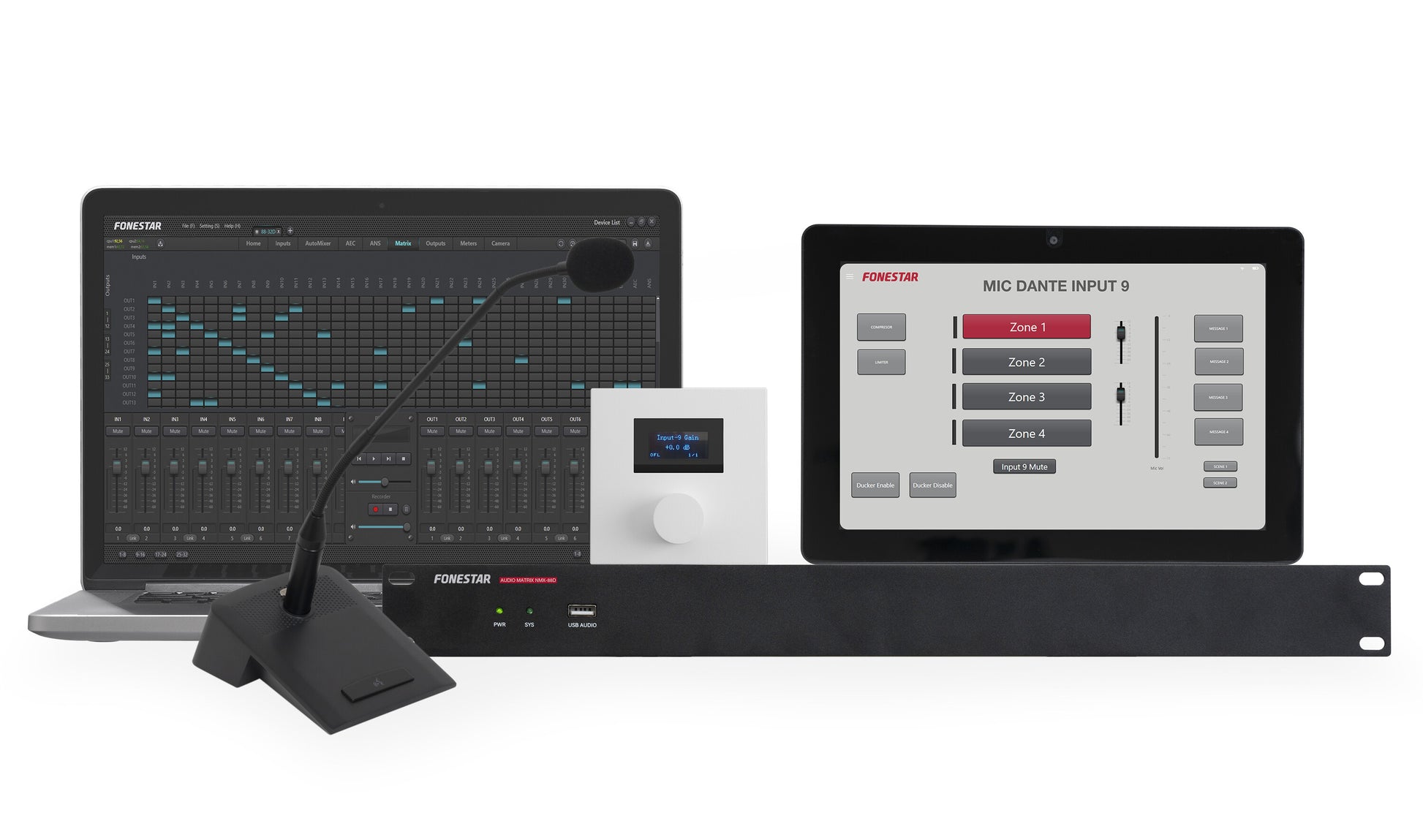

The Fonestar TAB-10-16 is a 10-inch Android-based touch screen designed to run the customizable user interface App for the NMX series digital audio matrices (NMX-88, NMX-88D, NMX-1616, NMX-1616D). It serves as a simplified, local control panel for end-users within a specific zone.



Key Features:

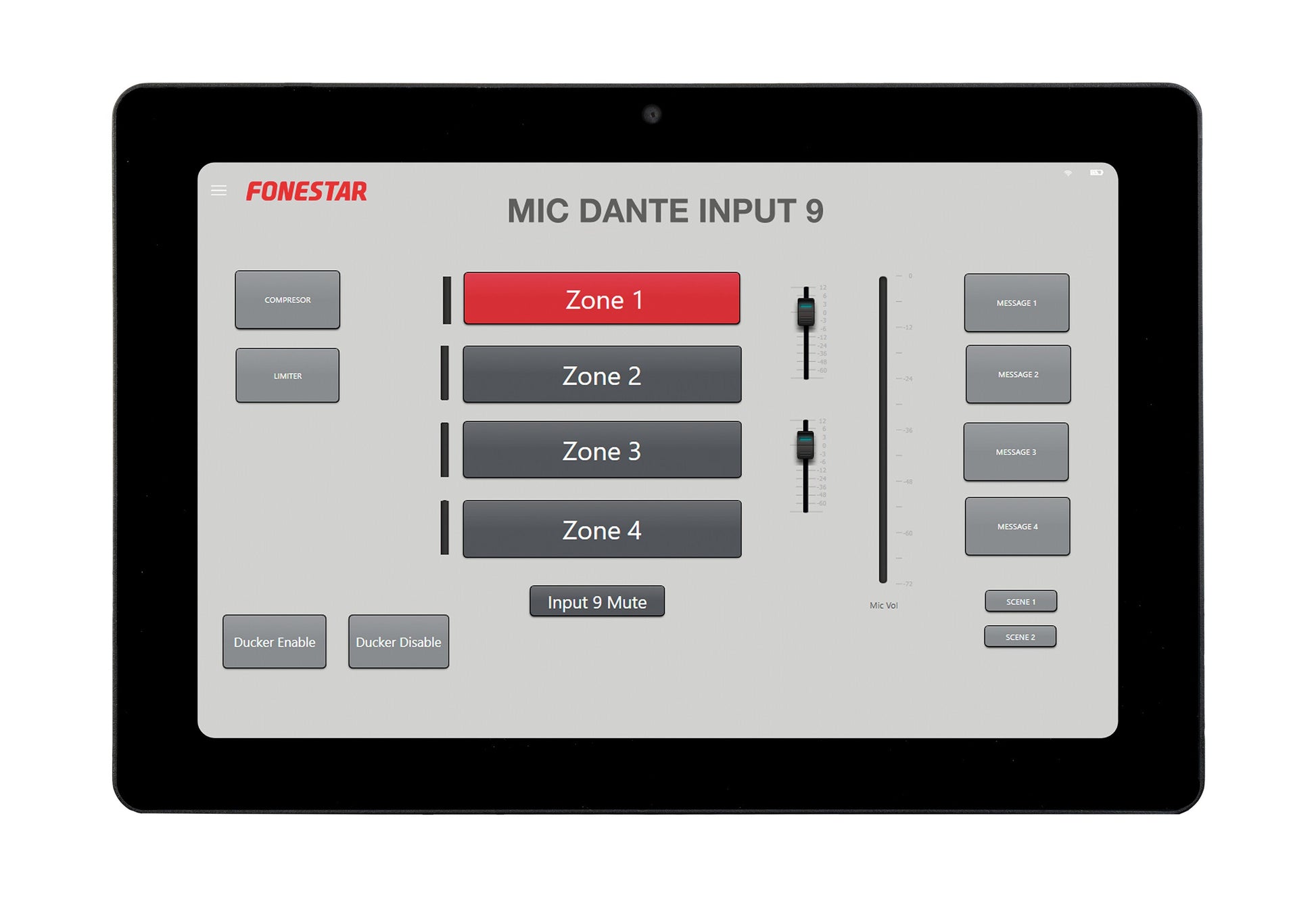

  • Primary Function: To run the NMX Series Matrix User Interface App, providing a customized, local control panel.

  • Programmability: The user interface is fully programmable and customizable using the NMX PC control software.

  • Controllable Functions: Main functions that can be assigned include:

    • Volume control (gain control).

    • Mute.

    • Scene recall.

    • Special actions via UDP, RS-232, or RS-485 commands.

  • Power & Connectivity: Features stable connection via RJ45 Ethernet and supports PoE (Power over Ethernet), simplifying installation and wiring. It also includes an alternative 12 V DC power option.

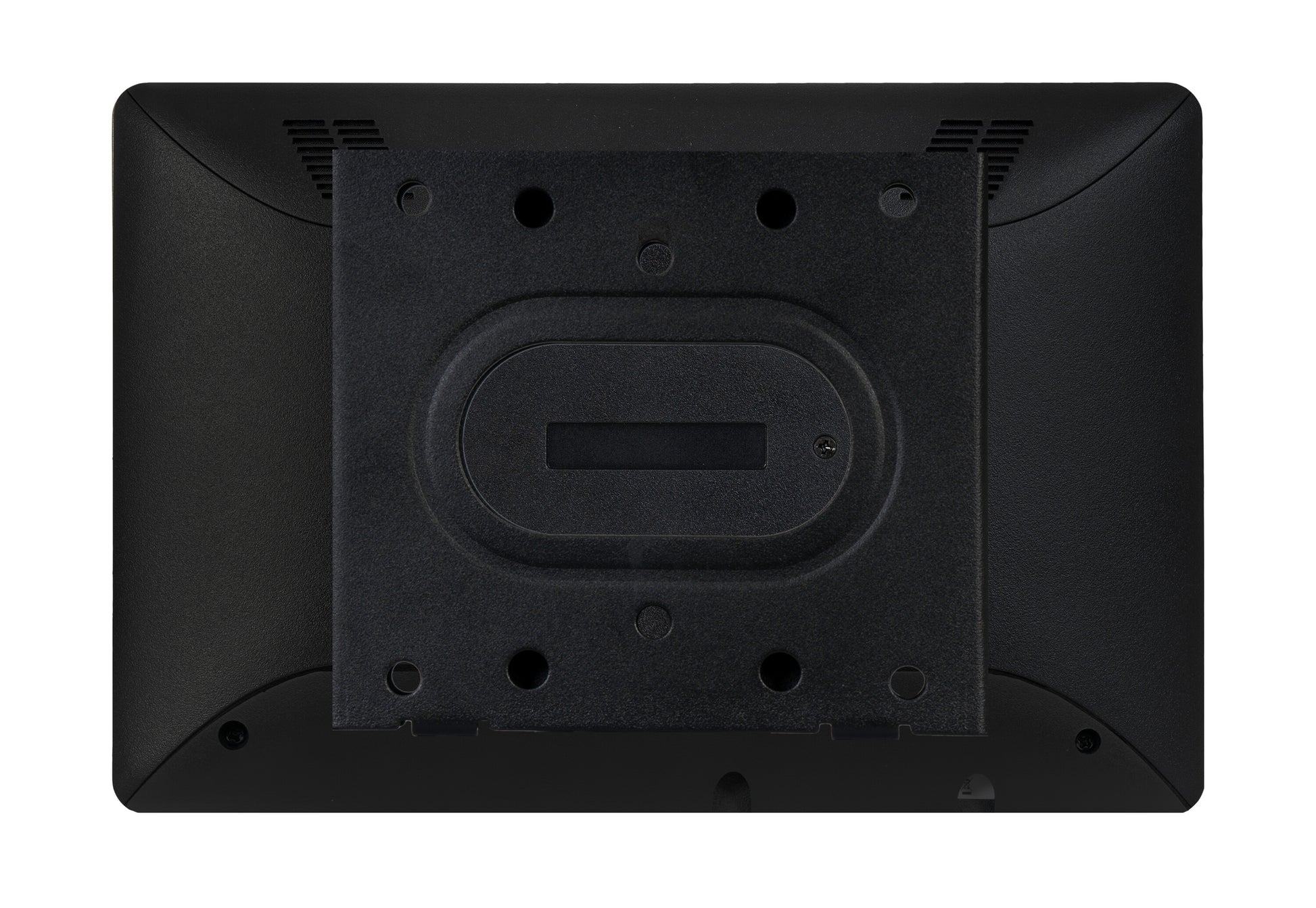

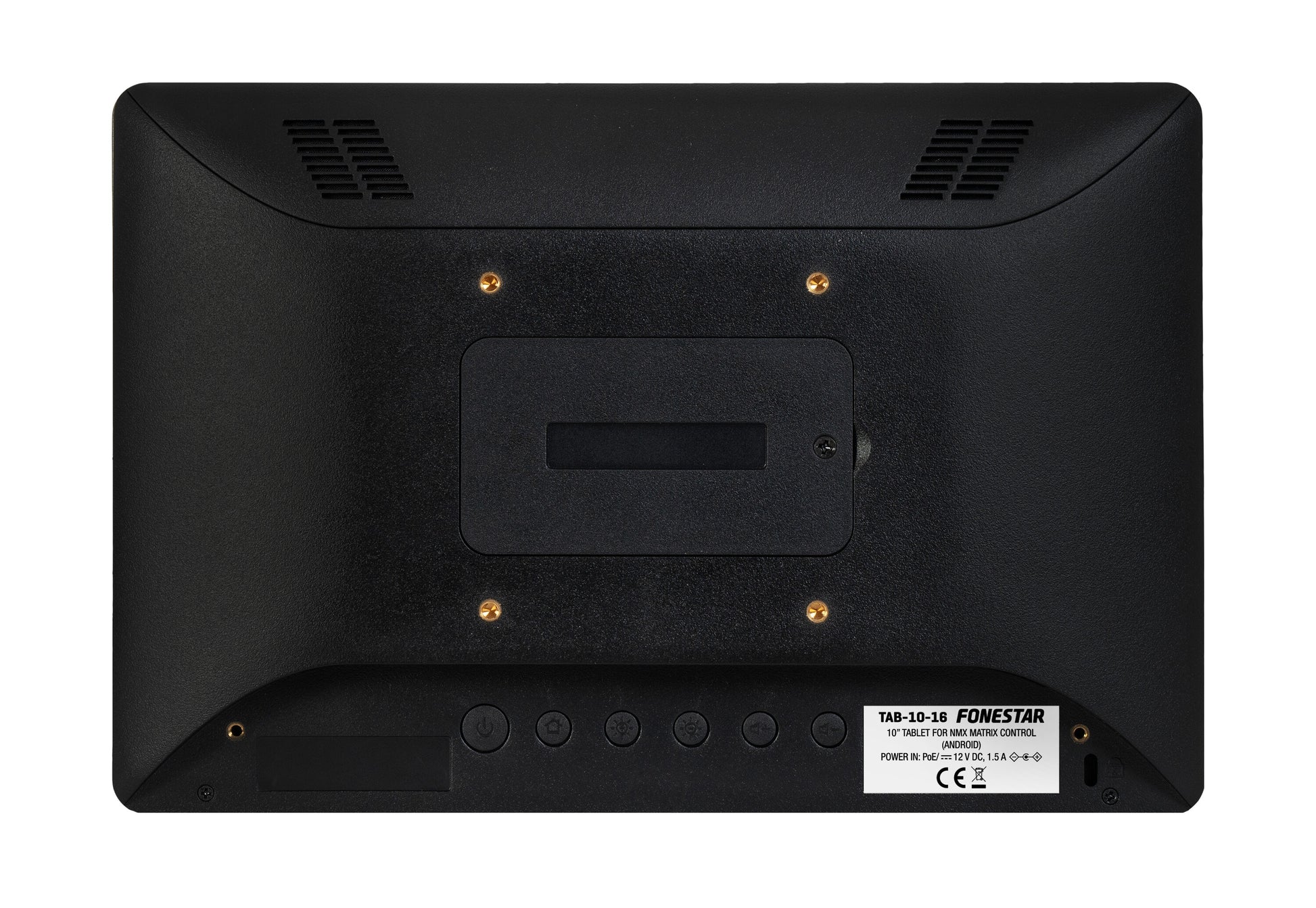

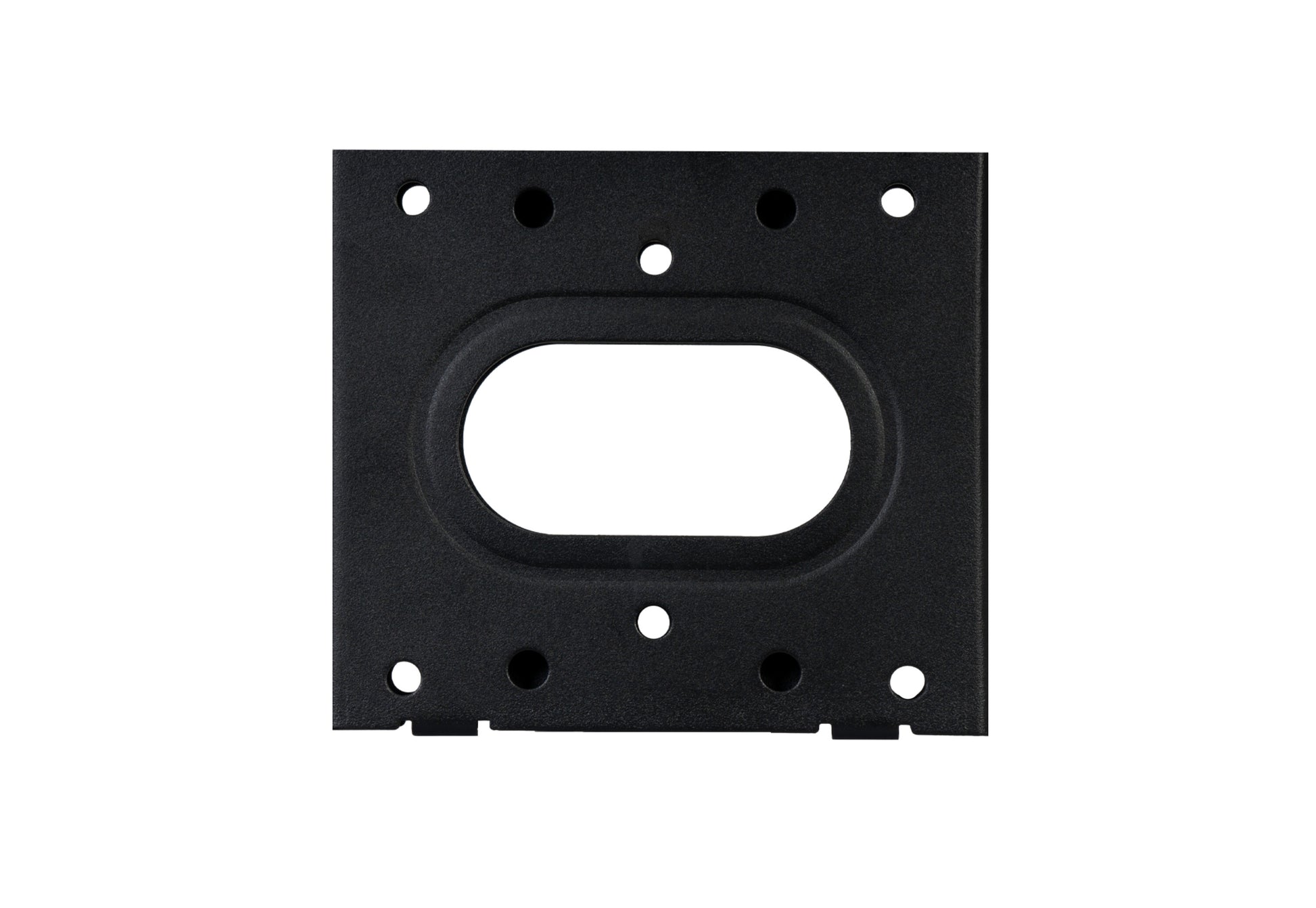

  • Mounting: Compatible with VESA 75 x 75 mounts and includes a wall installation mount accessory.

  • Multi-Zone Support: Supports the use of multiple touch screens within a single installation.



Technical Specifications Summary:



Specification Detail
Product Type 10'' Touch Screen (Android 2G + 16G tablet)
Compatibility NMX Series Matrix User Interface App (Android/iOS)
Power Supply PoE (Power over Ethernet) and 12 V DC, 1.5 A

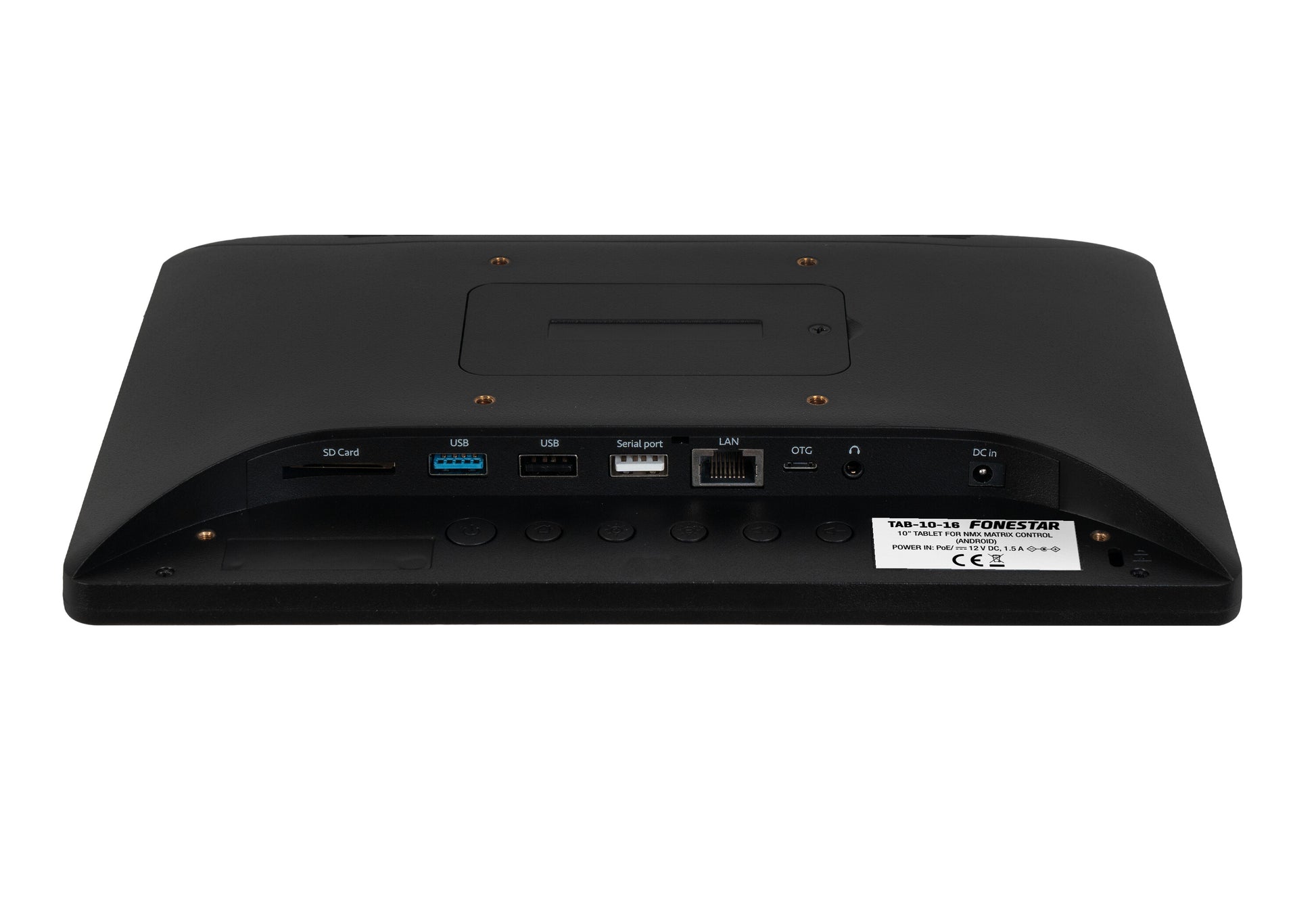

Connectivity (Input) 1 x LAN port (RJ-45), 2 x USB ports, 1 x SD port, 1 x USB serial port, 1 x Micro USB OTG
Connectivity (Output) 1 x 3.5 mm Headphones
Mounting VESA 75 x 75 compatible (Wall installation mount included)

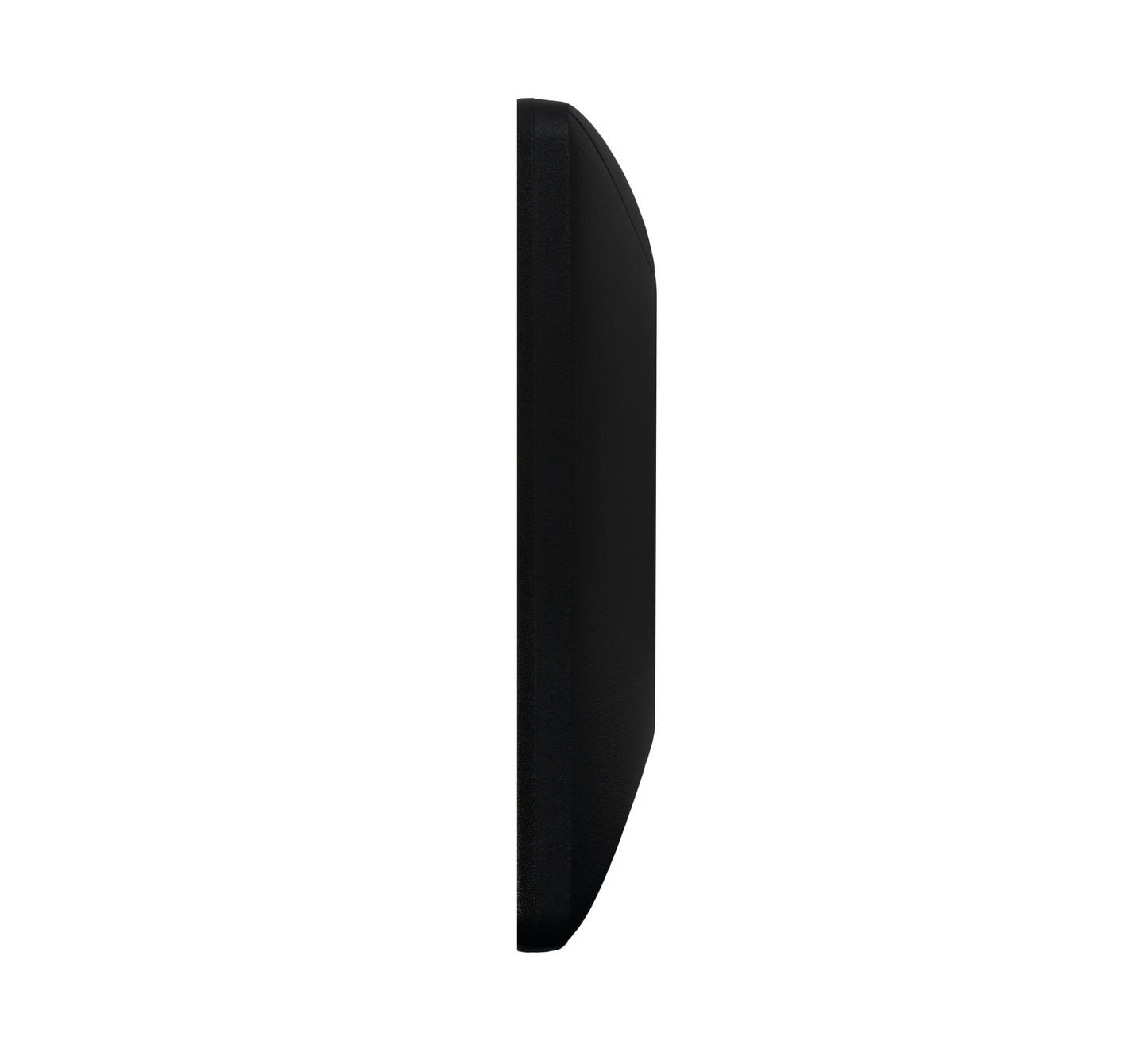

Dimensions 256 x 172 x 30 mm depth
Weight 0.8 kg
Controls Power, Home, Brightness, and Volume buttons
