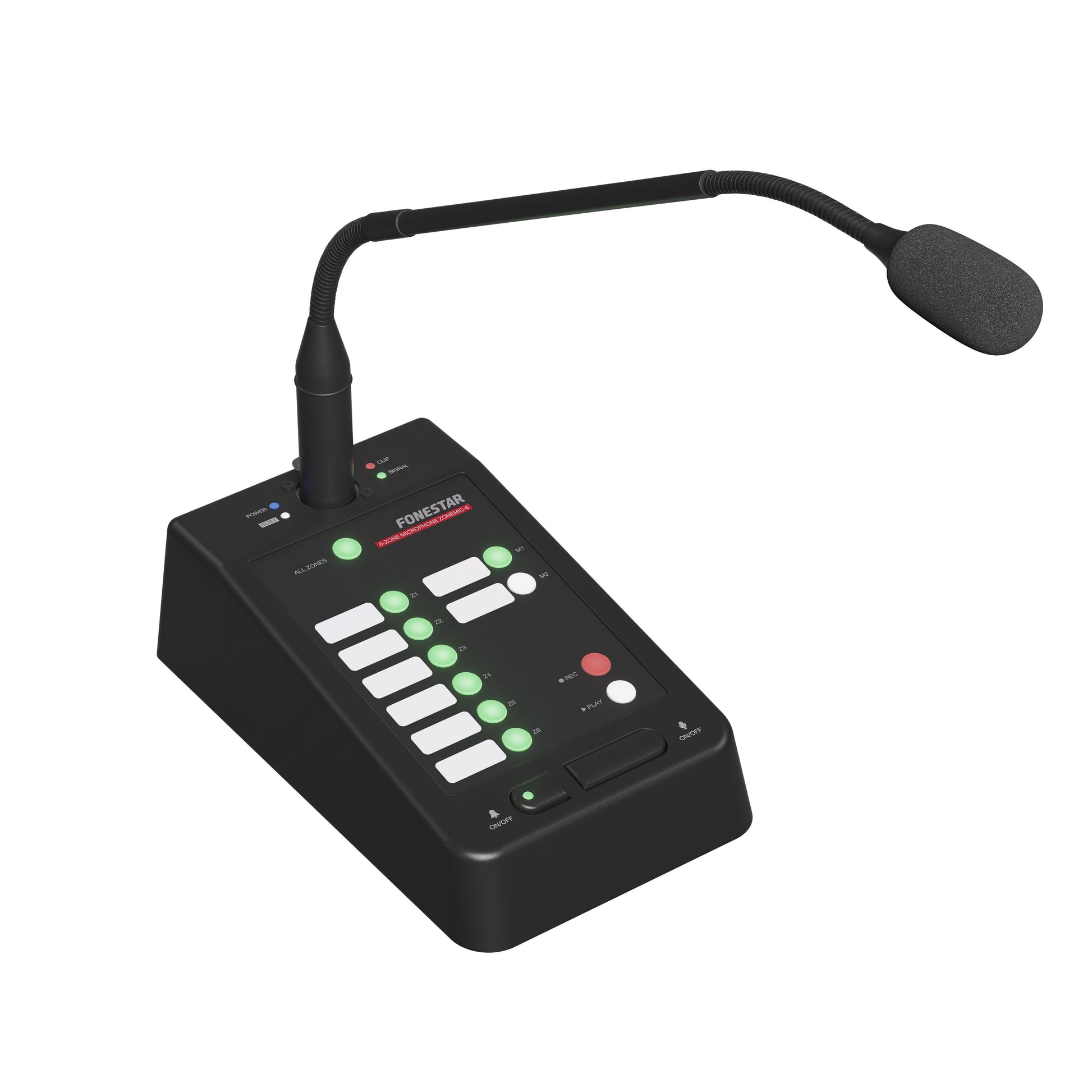

Elevate your professional audio announcements with the Fonestar ZONEMIC-6, a sophisticated zone microphone console designed to integrate seamlessly with the ZONE-6 6-zone output switching system. Perfect for commercial premises, educational centers, healthcare facilities, and any multi-zone public address environment, the ZONEMIC-6 delivers crystal-clear communication with exceptional control.
Â
Â

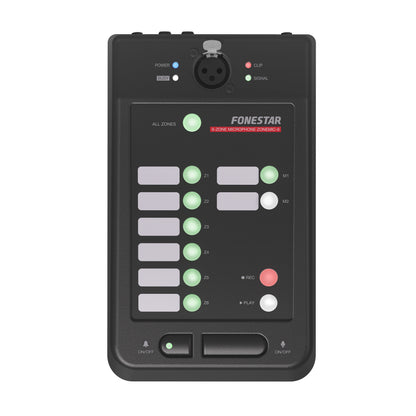

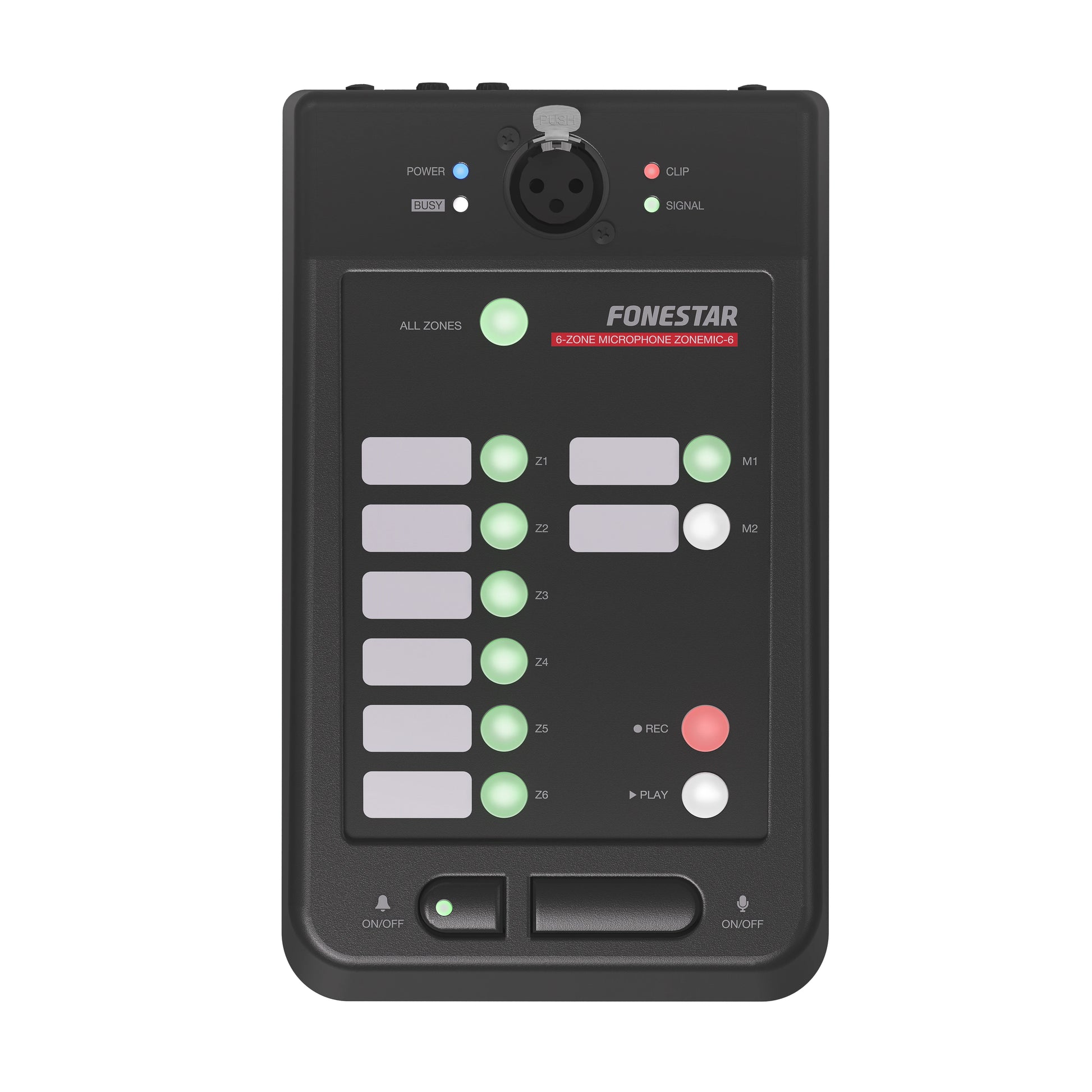

Dedicated 6-Zone Selection: Easily address any combination of the six output zones of the ZONE-6 system with dedicated selection buttons, ensuring your message reaches the intended areas.
Integrated Message Recorder: Store and instantly replay two pre-recorded messages at the push of a button—ideal for recurring announcements or emergency warnings.
Customizable Warning Tones (Chime): Includes musical warning tones that can be customized via the internal microSD card, allowing you to tailor the pre-announcement sound to your environment.

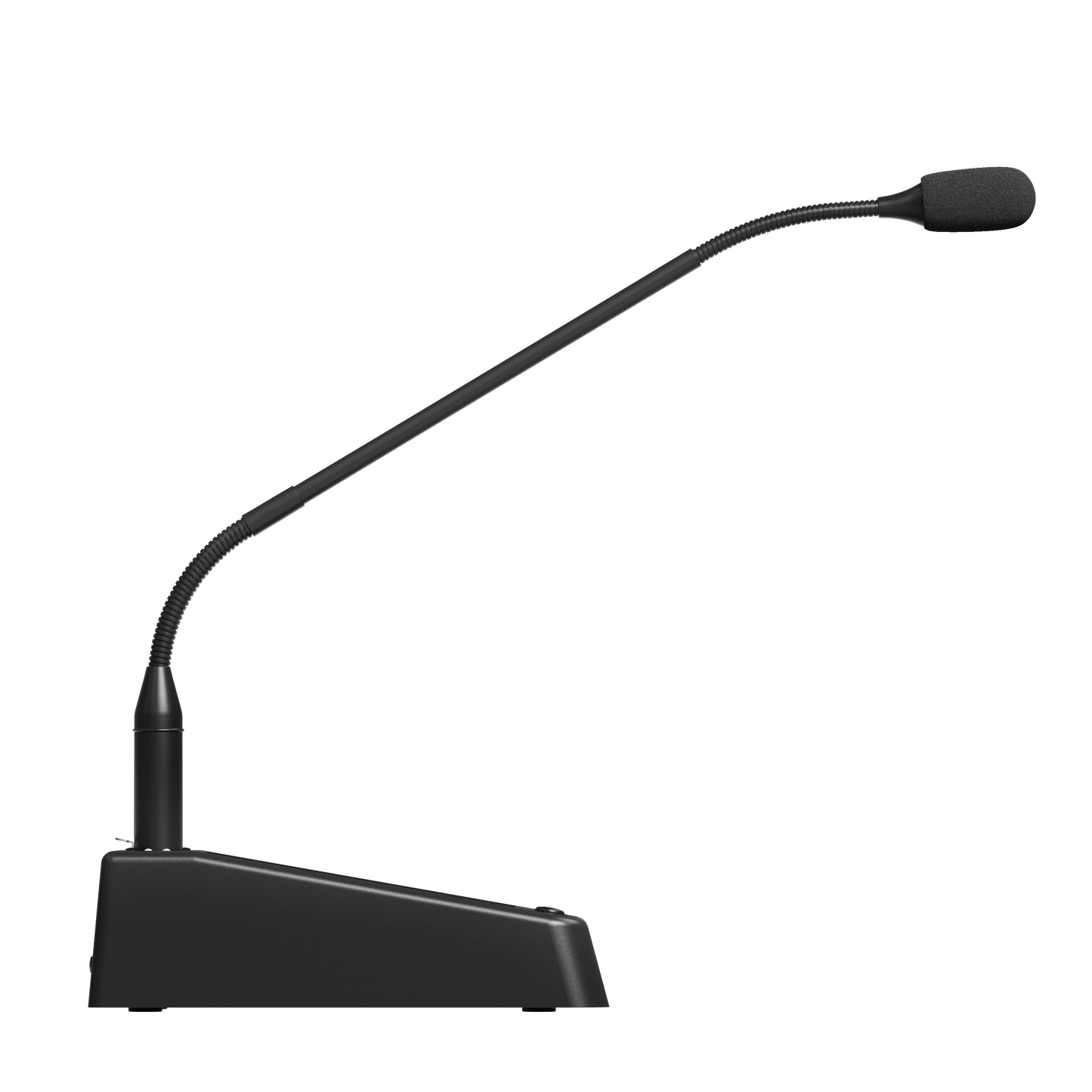

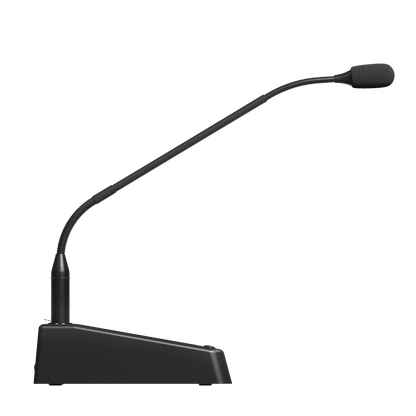

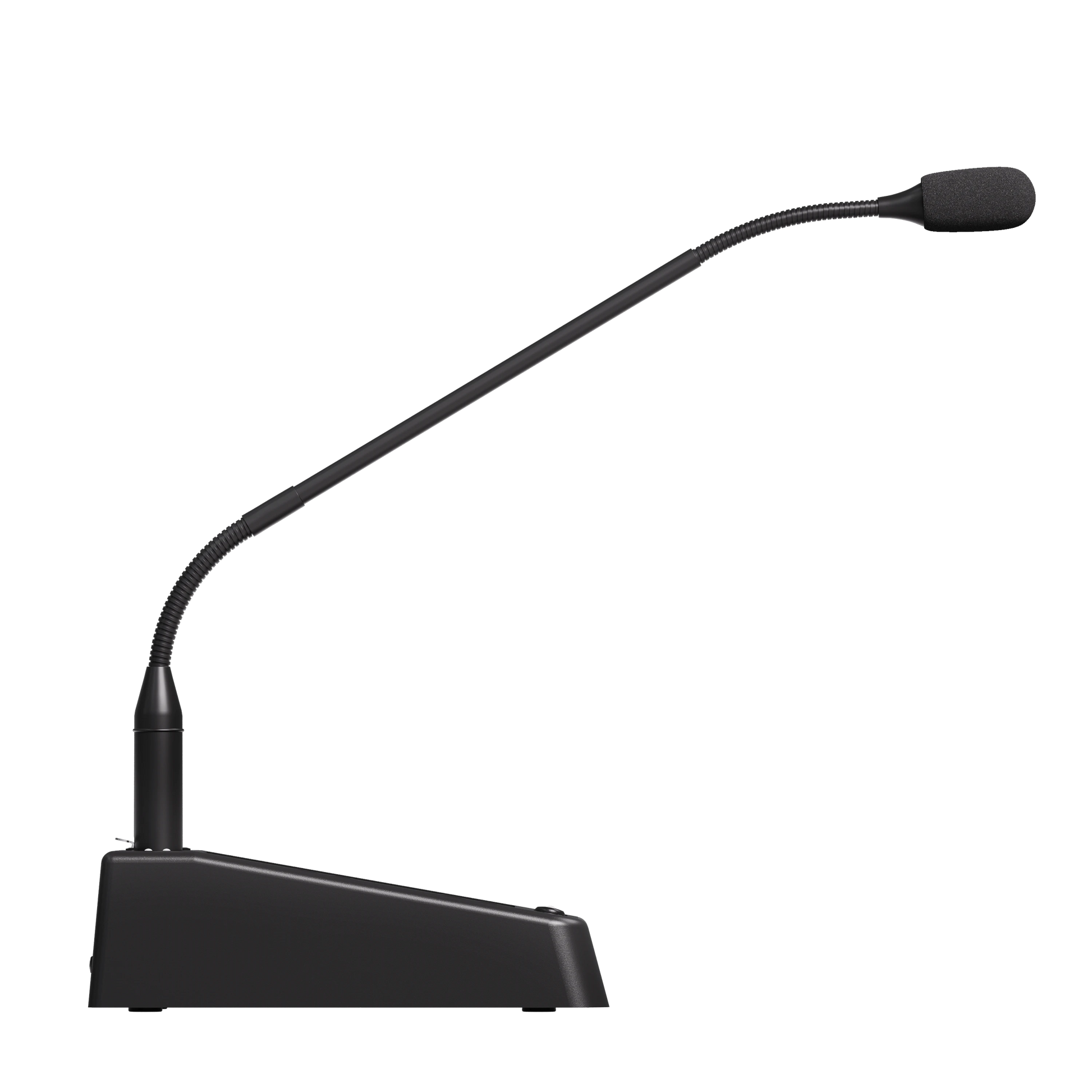

High-Clarity Voice Pick-up: Features a high-quality unidirectional electret condenser capsule and gooseneck design for clear, effective speech transmission.
Output Gain Control: A built-in volume (gain) controller ensures the microphone signal level is perfectly tailored for every announcement.
Flexible Operation Modes: Supports PTT (Push-To-Talk) and PTL (Push-To-Lock) modes for user-friendly operation.
System Status Indicators: LED indicators clearly display the status of the signal, power, clip limiter, and busy status for reliable use.

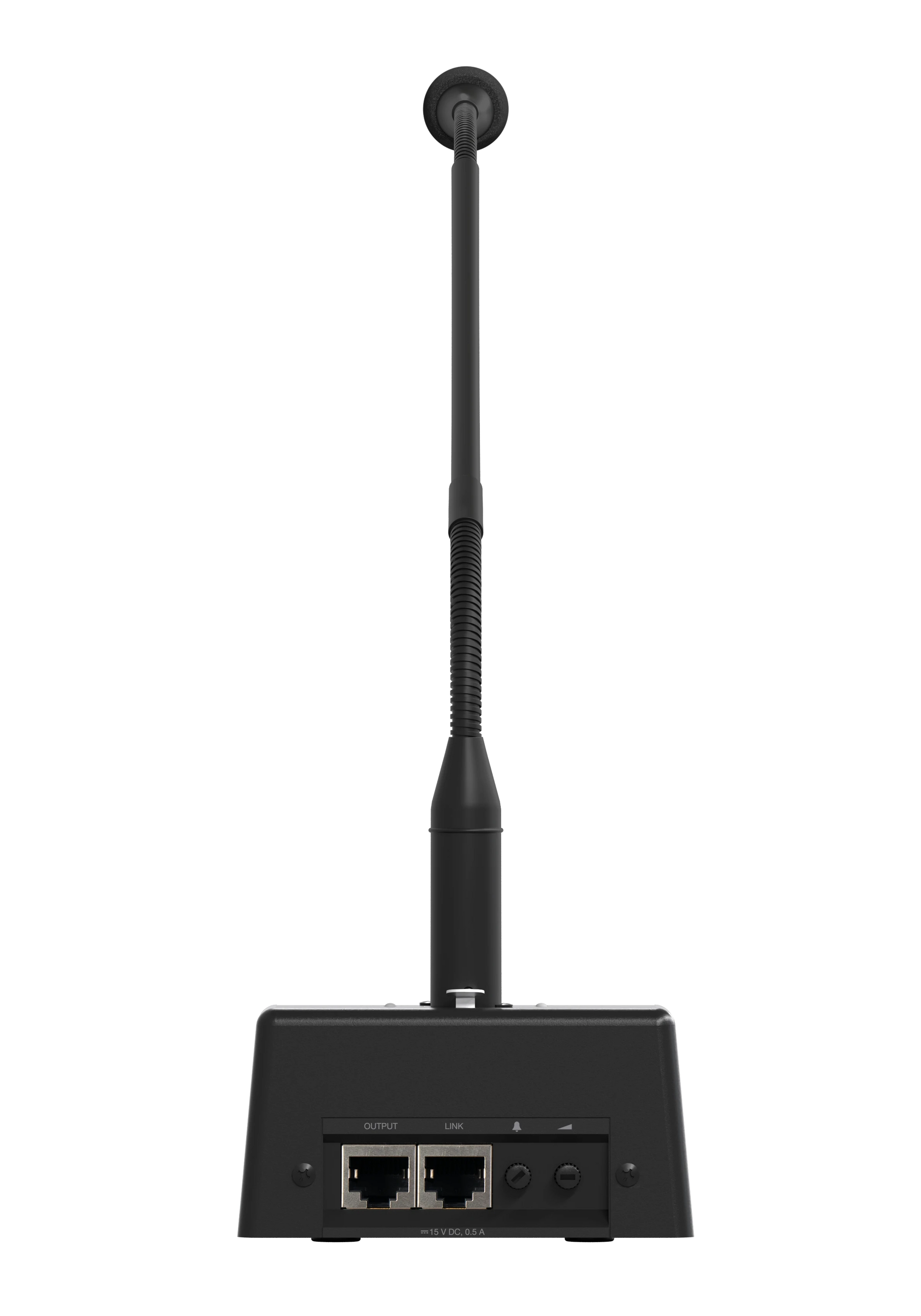

Simple, Single-Cable Connection: Connects directly to the ZONE-6 unit via a standard RJ45 cable, carrying both power and signal for quick and efficient setup (up to 200m distance).
Transform your multi-zone audio system into a powerful, controlled communication hub. The ZONEMIC-6 offers the precision and versatility required for targeted, effective public address.
| CHARACTERISTICS: | 6-zone microphone for ZONE-6 system Remote playback of instant messages to 6 output zones Recorder of 2 pre-recorded messages Musical tones of warning (chime) Control of output gain Indicator lights for signal, power, clip limiter and busy status. |
| CAPSULE: | Unidirectional electret condenser |
| RESPONSE: | 80-15,000 Hz |
| SENSITIVITY: | -46 dB (V/Pa) at 1 KHz |
| IMPEDANCE: | 680 Ω |
| SPL MAX: | > 110 dB |
| THD: | < 0.05 % |
| SWITCH: | PTT/PTL (configurable) |
| INPUTS: | 1 micro balanced 1 micro zone selector, RJ45 |
| OUTPUTS: | 1 micro zone selector, RJ45 |
| CONNECTION: | Cable RJ45, maximum distance 200 m |
| POWER SUPPLY: | 15 V CC, 500 mA, via RJ45 port |
| DIMENSIONS: | Microphone with flexo: 430 mm high Base: 200 x 60 x 120 mm depth |
| WEIGHT: | 0'65 kg |
| ACCESSORIES: | Wind-shield foam MicroSD card 16 GB internal |
