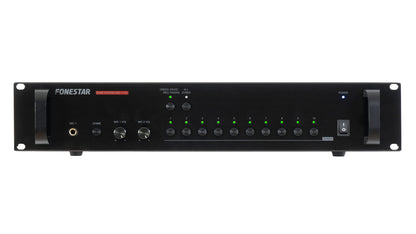

The Fonestar ZSC-1110 is a professional-grade 10-zone switching and control unit specifically designed for 100 V line Public Address (PA) systems. Offering robust features and scalability, it is suitable for commercial installations of any size that require separate audio control for background music and paging.
The ZSC-1110 excels at complex audio management, allowing you to route two separate 100 V lines—one for ambient music and one for paging announcements—to 10 distinct loudspeaker zones.
High Scalability: Manages 10 loudspeaker zones and is easily expandable up to 300 zones by connecting additional ZSC-1110 units, making it perfect for growth.
Dual 100 V Inputs: Each zone features two 100 V line inputs (one for background music, one for the paging amplifier), ensuring seamless switching between the two sources.
Paging and Microphone Support: Allows for announcements via the optional ZS-11 zone selector microphone, with support for connecting up to 16 ZS-11 microphones.
Alarm Integration: Includes general purpose inputs and outputs (contact closure) for connection to external systems, such as an alarm centre.
Priority Activation: Provides the capability to activate 24 V priority relays on attenuators when paging, using the optional ZS-1112R control unit.

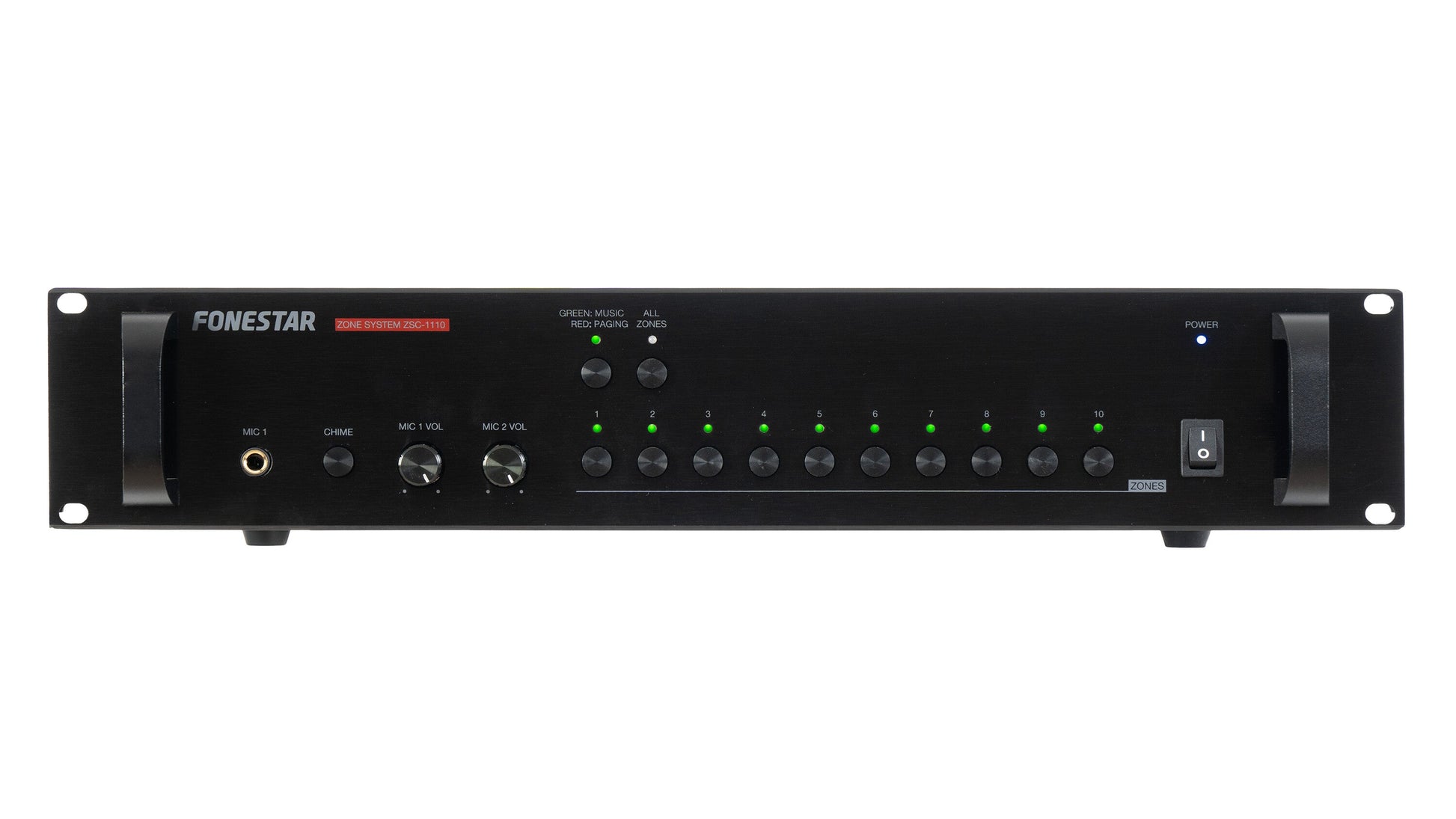

User Controls: Features controls for microphone and chime volume, bass and treble tone control (±10 dB), chime activation, and selection for music/paging source.
The ZSC-1110's scalability and robust features make it highly recommended for large-scale PA installations in:
Hotels
Education facilities
All sectors requiring complex zoned audio and paging.
| Feature | Specification |
| Type | 10-zone switching unit for 100 V line |
| Expansion | Expandable up to 300 loudspeaker zones |
| Paging Input | 1 paging mic. (RJ-45) |
| 100 V Line Inputs | 10 x 100 V line for paging amp (Max 500 W/zone); 10 x 100 V line for background music amp (Max 500 W/zone) |

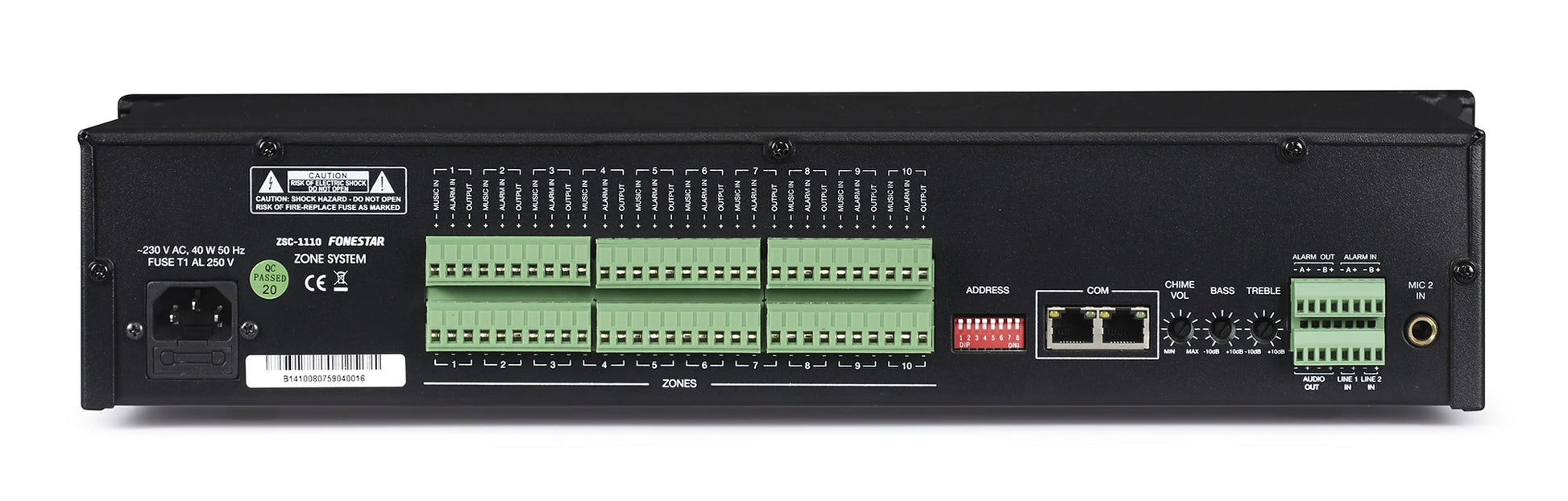

| Loudspeaker Outputs | 10 loudspeaker zones (Max 500 W/zone, Euroblock) |
| Audio Response | Microphones: 100 - 15,000 Hz; Lines: 30 - 18,000 Hz |
| Communication | RS-485 via Cat 5e cable (up to 1000 metres) |
| Dimensions | 484 x 88 x 340 mm depth (2 U 19" rack) |
| Weight | 5 kg |
