RRP
Regular price £288.95inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

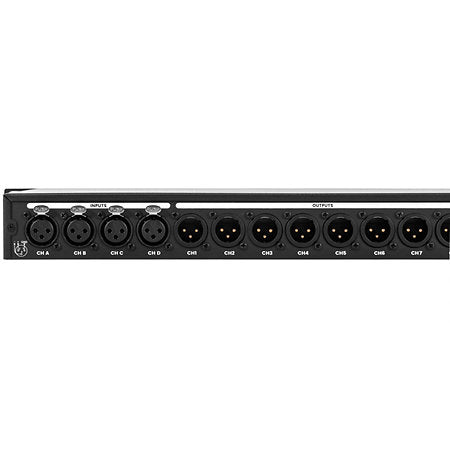

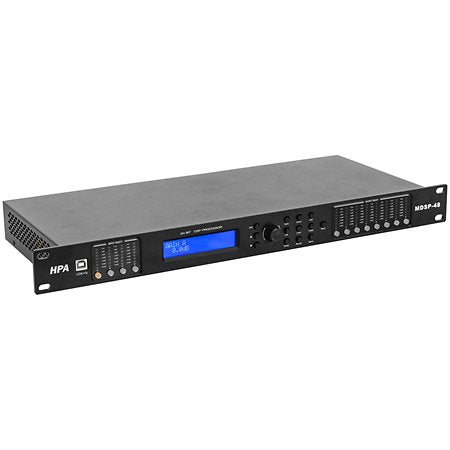

Sound Processing System HPA MDSP-48 - 4-in/8-out balanced XLR loudspeaker management processor with full matrix routing, input and output EQ, crossover, delay and integrated compressor/limiter for precise control. PC (Windows) software included for simple, efficient configuration (USB cable supplied)
Presentation The HPA MDSP-48 is a broadcast processor designed to optimise your sound systems, whether in concert, at events or in a fixed installation. Designed as a true loudspeaker controller, it offers routing of the 4 inputs to any of the 8 balanced XLR outputs, enabling you to manage several speaker and subwoofer configurations with precision. Thanks to the included PC control software, you have access to a clear interface for setting up your PA system. Equalisation, high-pass and low-pass filters, delays and other essential tools are available to adapt the sound to each venue. Built-in limiters protect your loudspeakers from accidental overload or saturation. Audio quality is top-notch, with a sampling frequency of 48 kHz and a frequency response of 20 Hz to 20 kHz. The sound reproduction remains faithful, from deep bass to detailed treble, with precision guaranteed by an extremely low distortion rate (0.002% @ +4dB, 1 kHz). Compact and rack-mountable, the MDSP-48 is equally at home in a mobile control room or a fixed installation in an auditorium, club or place of worship. Its universal 100-240V power supply means it can be used anywhere in the world. With the HPA MDSP-48, you take total control of your sound system: flexibility, security and quality in a single device.
Features Analog / digital Digital Number of ways 8 Weight 3,2 kg Power supply 220 V 19" rack 1U Input channels 4
Other features HPA MDSP-48 Complete loudspeaker management system 4 inputs / 8 outputs on balanced XLR PC (Windows) compatible control software included Various on-board EQs, delays and crossovers Mute and phase reverse on inputs and outputs 10-band equalizer on inputs and outputs Delay on inputs and outputs (up to 682 ms) Crossover with high-pass and low-pass filters (Butterworth, Bessel or Linkwitz-Riley) Integrated compressor/limiter 30 user settings can be stored and exported Can be locked by password Sampling frequency: 48 kHz Frequency response: 20 hz to 20 kKz, +/- 0.25 dB Distortion + Noise: 0.002% @ +4dB, 1 kHz Power supply : AC100 - 240V 50/60 Hz Net weight: 3.18 kg
