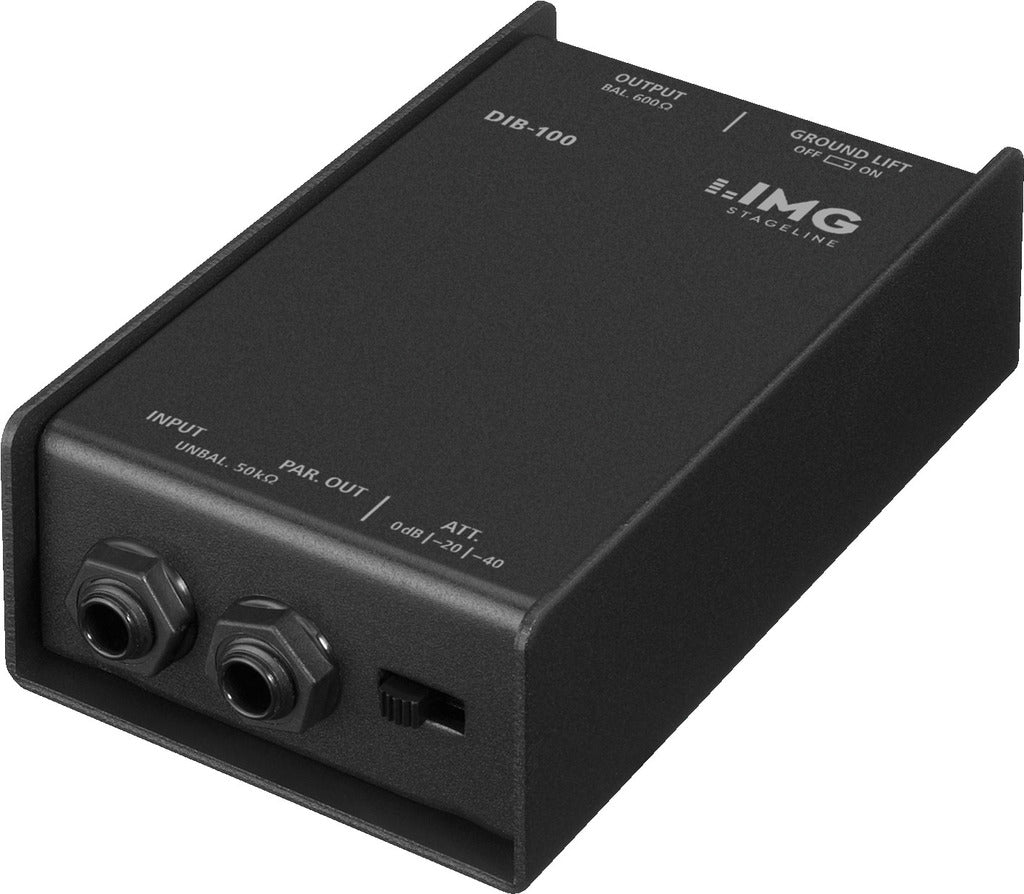

Ensure an optimum signal transmission from your musical instruments to a mixer or amplifier with the IMG STAGELINE DIB-100 Passive DI Box. Built for the demands of the stage and studio, this robust direct injection box is your go-to tool for achieving a clean, balanced signal without unwanted noise.
The DIB-100 solves common signal-matching and interference problems, making it an indispensable part of any audio setup.
Transformer-Coupled Isolation: Using a wideband balancing transformer, the DIB-100 largely prevents interferences like hum loops caused by ground-related matching problems. The input and output are galvanically isolated for ultimate signal purity.
3-Fold Attenuation Switch: Easily handle a wide range of input signals, including high-level sources like instrument amplifier speaker outputs, with a selectable 0 dB, -20 dB, or -40 dB attenuation switch.
Ground Lift Switch: Eliminate annoying ground loop hum by completely interrupting the ground connection between the input and output.
Instrument Feed-Through Output (Par. Out): Connect your instrument to the DI box and simultaneously send the original, unbalanced signal directly to an instrument amplifier (e.g., a guitar amp) while the balanced signal goes to the mixer.
| Description | DI box |
| Frequency range | 15-30,000 Hz |
| Input impedance | 50 kΩ |
| Output impedance | 600 Ω (bal.),
50 kΩ (unbal.) |
| Gain | 0/-20/-40 dB |
| Transmission ratio | 10:1 |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 74 x 45 x 130 mm |
| Weight | 560 g |
| Inputs | 1 x 6.3 mm jack, unbal |
| Outputs | 1 x 6.3 mm jack, unbal.,
par. out XLR, bal. |
