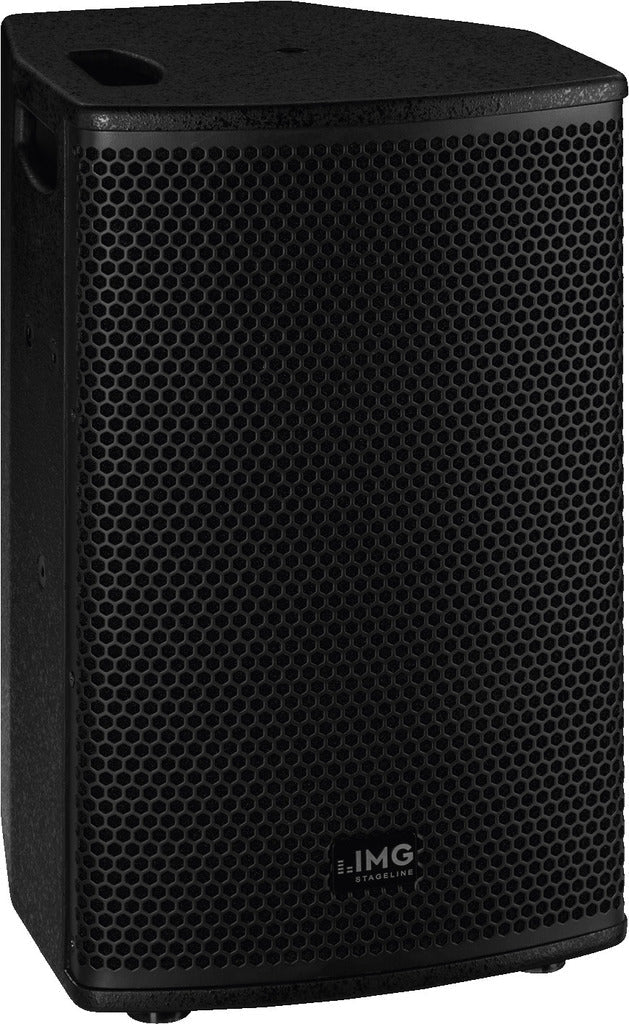

🔊 IMG STAGELINE DRIVE-08A: Professional Active DSP Speaker System
Unleash powerful, pristine sound with the IMG STAGELINE DRIVE-08A—a robust and versatile active PA speaker designed for a wide range of applications. Featuring modern DSP-controlled amplifier technology, this speaker system delivers excellent sound characteristics in a compact, manageable package.
Â
Â
Powerful DSP-Controlled Amplifier: The 2-channel amplifier provides a total of 400 W (Max) output power (200 W RMS: 140 W for bass, 60 W for treble), ensuring dynamic and efficient performance.
Optimal Full-Range System: A compact 8/2 full-range system featuring a 20 cm (8") bass speaker and a 25 mm (1") horn tweeter with a consistent radiation pattern.
Selectable DSP Presets: Tailor the sound to your specific environment with 3 user-selectable presets:
FLAT: Linear, true-to-source adjustment.
MUSIC: Slightly raised bass and treble for enhanced listening.
LOW CUT: With a high-pass filter for seamless integration with an additional subwoofer.
Robust & Quality Construction: Encased in a durable, high-quality cabinet made of birch plywood for the necessary road-worthiness and excellent acoustic properties.
Flexible Setup Options: Multi-purpose positioning is enabled by:
A 35 mm stand sleeve for pole mounting.
M8 threaded inserts for suspended installation (flying).
A horn tweeter that can be turned by 90° to optimize dispersion for either horizontal or vertical orientation (H: 90°/V: 60°).

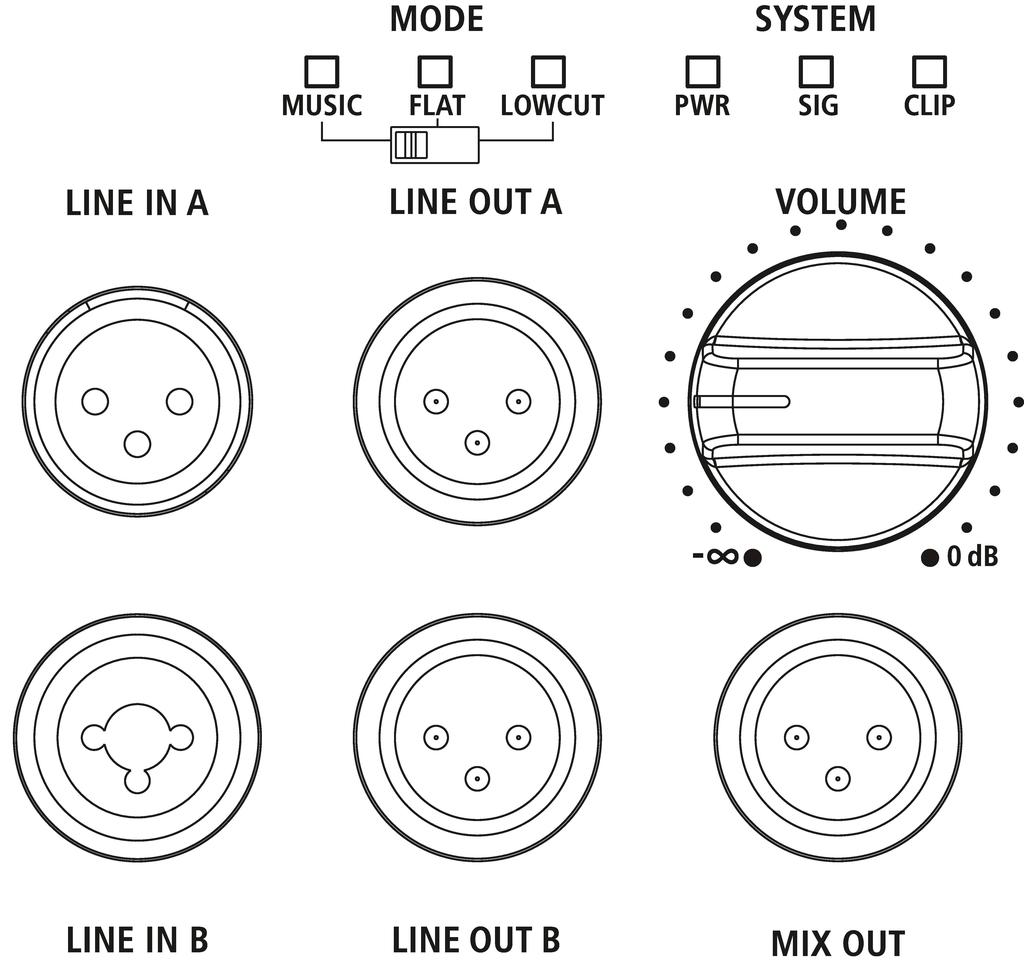

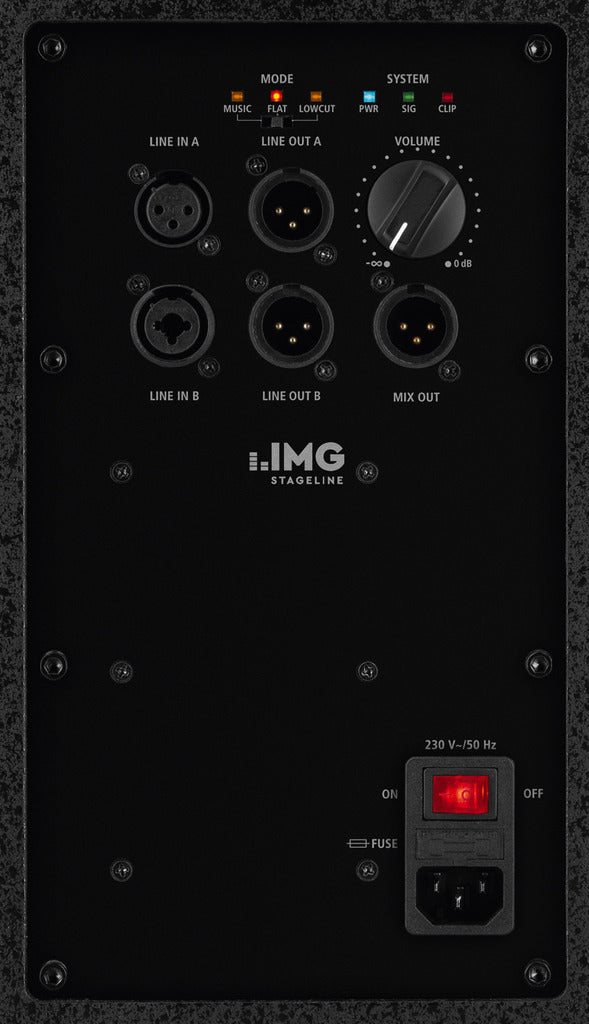

Professional Connectivity: Equipped with essential professional inputs and outputs, including:
Inputs: 1 x combo jack (XLR/6.3 mm) and 1 x XLR (both balanced line in).
Outputs: 2 x XLR parallel out and 1 x balanced XLR mix out.
Perfect for mobile DJs, small live performances, presentations, and fixed installations, the DRIVE-08A combines portability with professional-grade sound quality.
| DRIVE-08A | |
|---|---|
| Active/passive | active |
| Transmission technology | cable |
| Total output power | 400 W |
| Power rating (RMS) | DSP-controlled 200 W (140 + 60)
bass: 140 W treble: 60 W |
| Frequency range | 60-20,000 Hz |
| Input signal | 790 mV/40 kΩ (line, bal.) |
| System | 8/2 full range |
| Bass speaker | 20 cm (8") bass speaker |
| Tweeter | 25 mm (1") horn tweeter |
| Number of speakers | 2 |
| Speaker size | 20 cm (8") |
| SPL | 98 dB/W/m |
| Max. rated SPL | 122 dB |
| Radiation angle/beam angle | H: 90°/V: 60°, horn can be turned |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 60° |
| Housing material | birch plywood |
| Colour | black |
| Mounting device | M8 threaded inserts, stand sleeve |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ˜ 230 V/50 Hz/250 VA |
| Dimensions | 270 x 460 x 290Â mm |
| Width | 270 mm |
| Height | 460 mm |
| Depth | 290 mm |
| Weight | 9.4 kg |
| Inputs | 1 x comb. XLR/6.3 mm: line
1 x XLR: line |
| Outputs | 2 x XLR par. out
1 x XLR mix out |
| Other features | DSP-controlled limiter
3 selectable presets |
| Packaging dimensions (W x H x L) | 0.38 x 0.54 x 0.36 m |
| Gross weight | 12.24 kg |
| Net weight | 9.4 kg |
