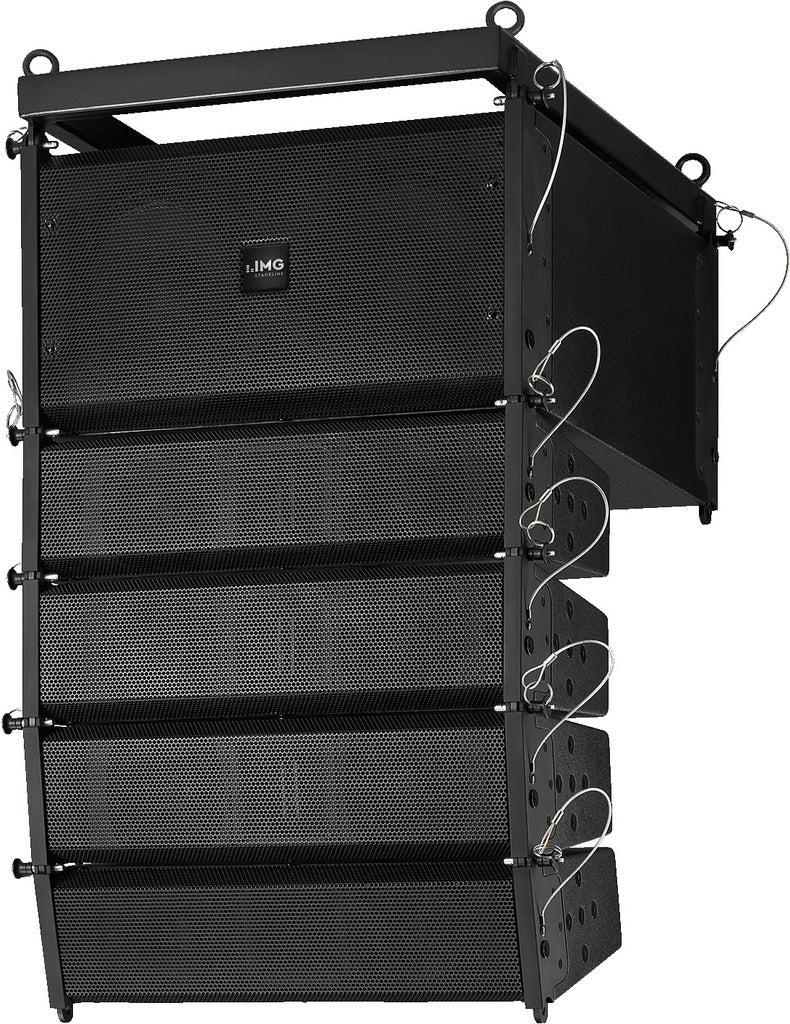

The IMG STAGELINE L-RAY/1000 is a professional, state-of-the-art active compact line array PA system. It is controlled by DSP software, delivering excellent sound, professional adjustment capabilities, and high level stability in a small footprint.
The system consists of:
Dual Bass Module (Subwoofer): Active module with 2 x 20 cm (8") bass speakers and a dedicated 350 W power amplifier.

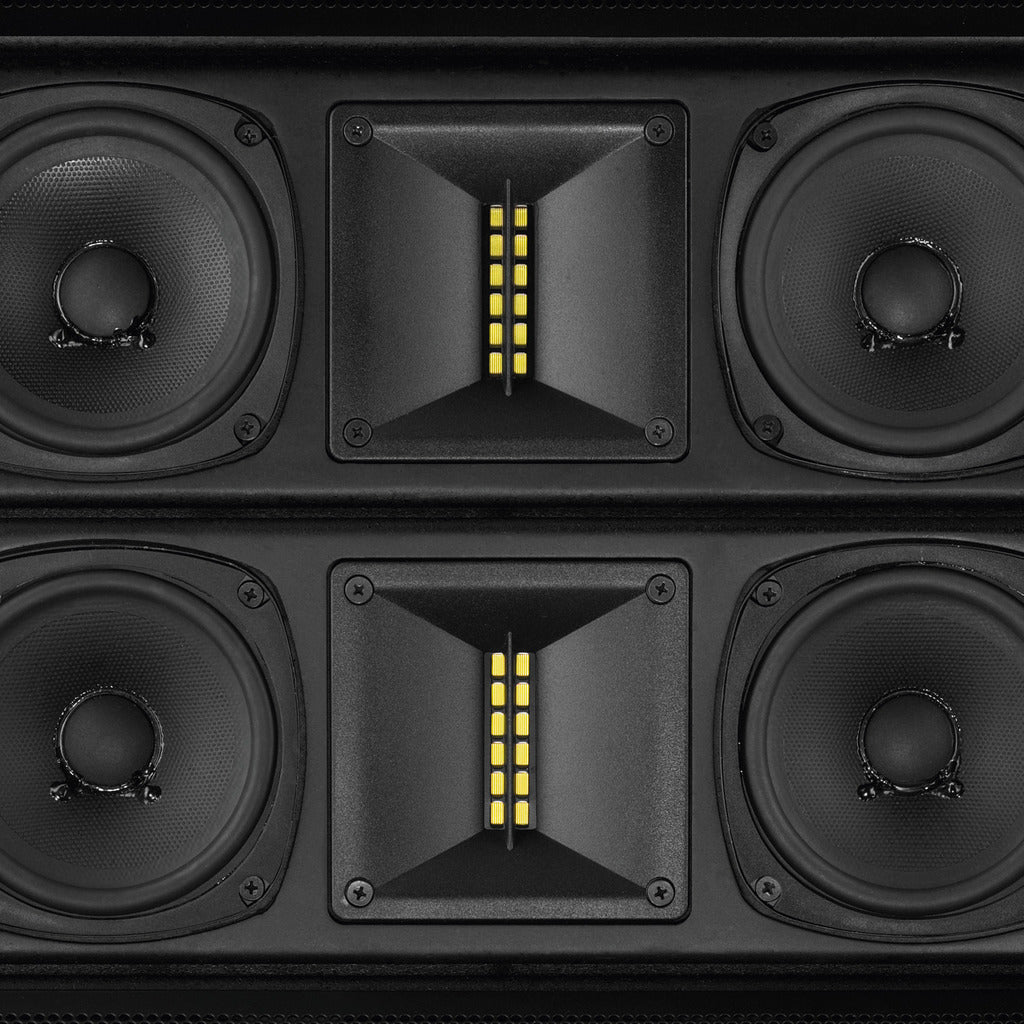

Mid-High Range Speaker Units (Array Elements): Four units, each with 2 x 10 cm (4") high-performance midrange speakers and a magnetostatic tweeter, sharing a dedicated 350 W power amplifier section.
The total system offers 1,000 W of output power.
Active & DSP Controlled: The system is fully active and features integrated DSP software for professional tuning and configuration (operates as a stand-alone unit after programming).

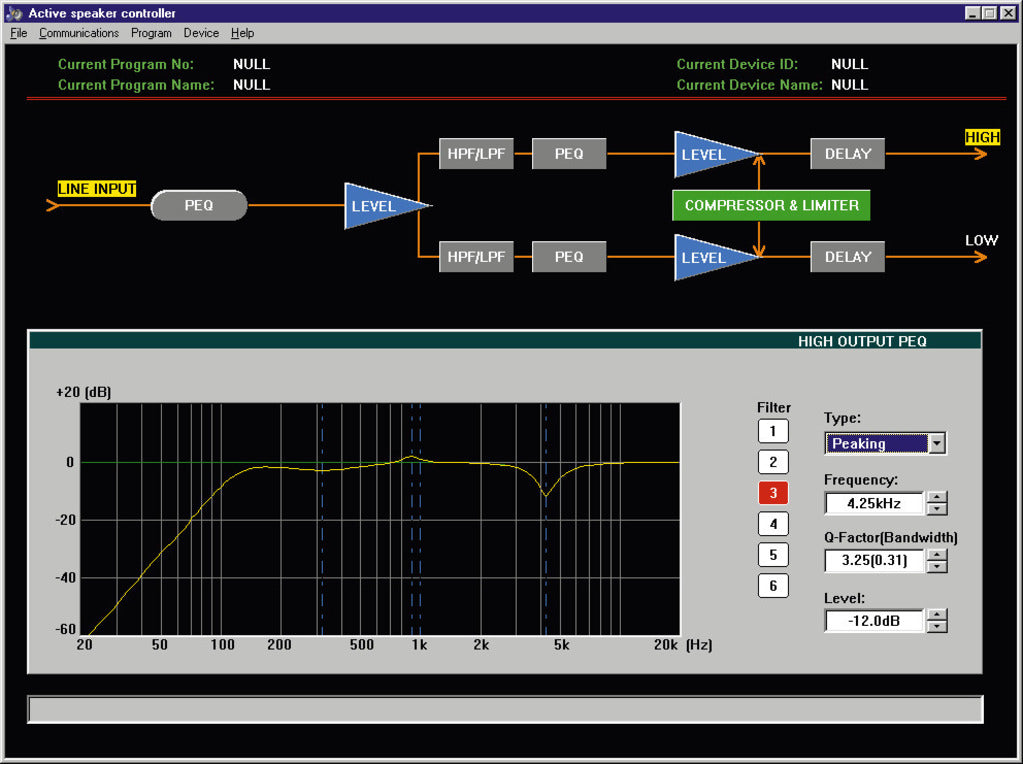

Customizable EQ and Processing: The included PC software allows adjustments for:
Parametric equalizer (6 bands)
Filters (high-pass or low-pass up to 36 dB/oct.)
Level, Compression, and Limiting
Delay

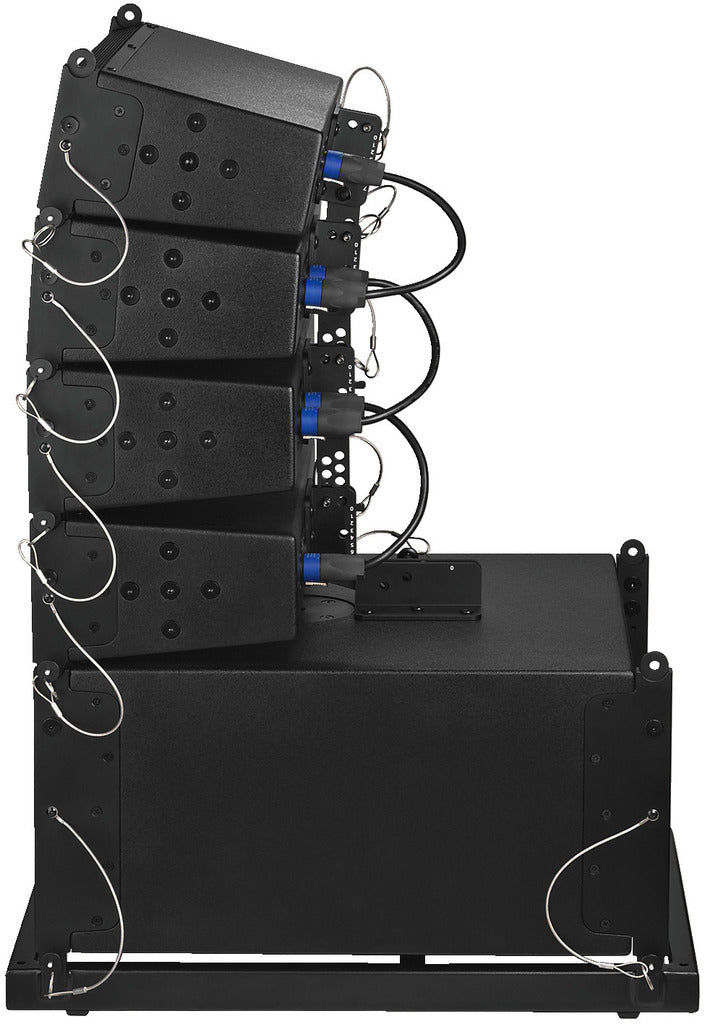

Controllable Radiation: Array elements can be mechanically curved in 1° steps. The resulting vertical radiation angle is variable from 30° to 90°, while the horizontal angle remains wide at 120°.

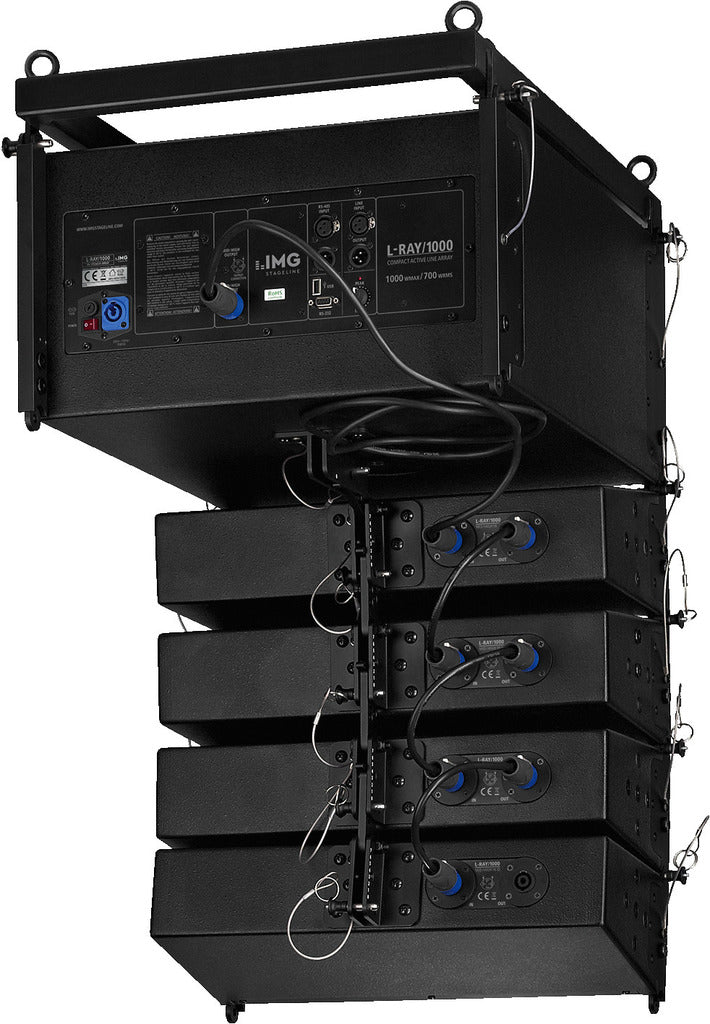

Flexible Mounting: Supplied with a robust mounting frame (Flyware) suitable for both suspended installation and floor/stage stacking. The subwoofer cabinet includes an M20 mounting plate for ground-stacked pole configurations (optional accessories required).
High Performance: Provides detailed, low-distortion reproduction up to 25,000 Hz and an impressive maximum rated SPL of 121 dB.
Connectivity: Features professional connections including XLR for line input/output, NEUTRIK SPEAKON for speaker links, and POWERCON for mains power.
| Feature | Detail |
| System Type | Active Compact Line Array (DSP-controlled) |
| Total Output Power | 1,000 W |
| Power Rating (RMS) | 700 W (350 W Sub + 350 W Mid/High) |
| Frequency Range | 50 – 25,000 Hz |
| Max. Rated SPL | 121 dB |
| Horizontal Radiation | 120° |
| Vertical Radiation | 30°–90° (Variable) |
| Drivers | Bass: 2 x 20 cm (8") Midrange: 8 x 10 cm (4") Tweeter: 4 x Magnetostatic |
| Total Number of Speakers | 14 |
| Inputs | XLR (Line), NEUTRIK SPEAKON (Speaker), POWERCON (Power) |
| DSP Interface | USB, RS-232, RS-485 IN & OUT |
| Housing Material | Wood (durable structured coating) |
| Dimensions (W x H x D) | 495 x 850 x 610 mm |
| Weight | 47.88 kg |
