The IMG STAGELINE LS-280/SW is a versatile 8-way line splitter and signal distributor designed for professional audio environments, allowing you to easily split and distribute your line-level signals without quality degradation. Perfect for feeding multiple slave amplifiers, recording devices, or distributed sound systems from a single or dual source.
Â
Â
8-Way Line Splitter: Distribute your audio signal to up to eight separate outputs.
Dual Input/Split Modes: Offers two selectable operating modes for maximum flexibility:
Stereo Mode (2-in / 4x2-out): Input A feeds 4 outputs, and Input B feeds the other 4 outputs (ideal for stereo splitting).
Mono Mode (1-in / 8-out): Input A feeds all 8 outputs (ideal for distributing a single mono signal).

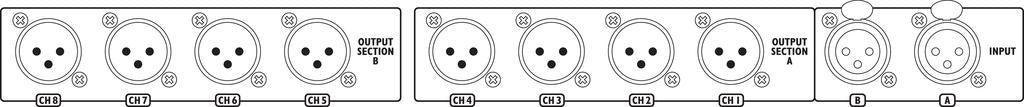

Professional Connections: Equipped with XLR connections for all 2 inputs and 8 outputs.

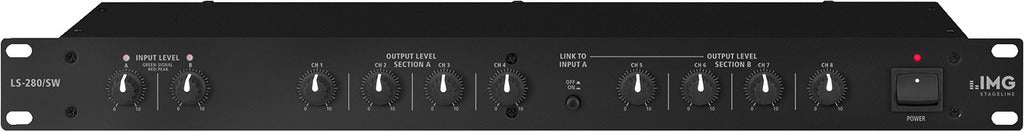

Individual Control: Each input and output features its own gain control for precise level matching across all signal paths.
Signal Monitoring: Dual LED indicators for each input show signal presence and peak level, ensuring you maintain optimal signal integrity.
High-Quality Audio: Features a wide frequency range of 20-20,000 Hz and a very low Total Harmonic Distortion (THD < 0.03%), ensuring transparent audio reproduction.
Durable Design: Housed in a robust metal casing, ready for 19-inch rack mounting (1U) or desktop use.
| LS-280/SW | |
|---|---|
| Description | splitter |
| Frequency range | 20-20,000 Hz |
| Input signal | 100 mV |
| Input impedance | 15 kΩ |
| Output signal | 1 V |
| Output impedance | 100 Ω |
| S/N ratio | 70Â dB, unweighted |
| THD | < 0.03% |
| Admiss. ambient temp. | 0-40 °C |
| Power supply | ˜ 230 V/50 Hz/10 VA |
| Dimensions | 482 x 48 x 205Â mm, 1Â RU |
| Weight | 2.3 kg |
| Inputs | 2 x XLR |
| Outputs | 8 x XLR |
