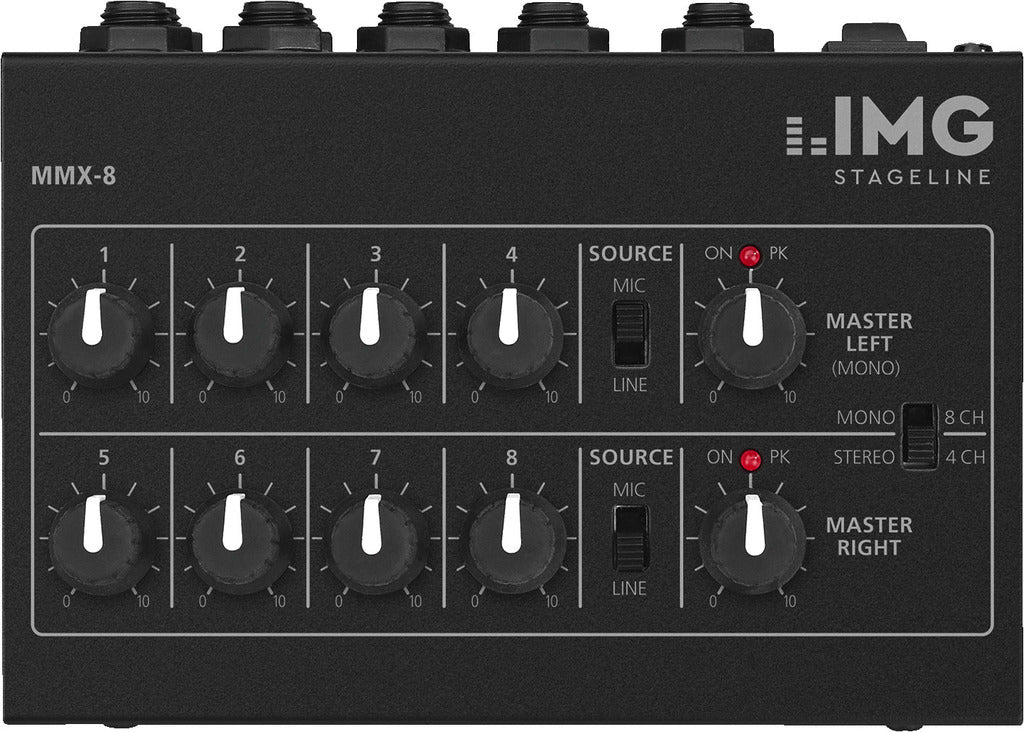

The Monacor MMX-8 is a versatile and compact audio mixer designed for a wide range of applications, from small PA systems to home studios. This miniature universal mixer offers great flexibility in a small footprint, making it the perfect solution when space is at a premium but multiple inputs are required.
8 Mono Channels: Features eight individual mono channels, providing ample connectivity for microphones or line-level sources.
Mic/Line Switchable: Each of the 8 input channels is switchable between microphone (5 mV) and line (50 mV) level, allowing you to connect a variety of equipment.
4 Stereo Channels Selection: The mixer can also be configured to accept 4 stereo input channels for stereo sources.
Dual Output Control: Equipped with two separate output level controls for precise management of your mixed audio.
Peak Indication: Two peak LEDs help you monitor signal levels and prevent clipping.
Input/Output: Features 8 x 6.3 mm jack inputs and 2 x 6.3 mm jack master outputs.
The MMX-8 is designed for both stationary and portable use:
Power Options: Operates via an internal 9 V battery (supplied separately) for on-the-go mixing, or an optional external power supply (e.g., Monacor PSS-600E) for continuous use.
Compact Dimensions: Measuring just 150 x 68 x 115 mm and weighing approximately 550 g, it fits easily into any setup or bag.
| MMX-8 | |
|---|---|
| Input channels | 8 |
| Number of mix/mono | 8 |
| No. of stereo | 4 |
| Mic input | 5 mV, 8 x 6.3 mm jack |
| Line input | 50 mV, 8 x 6.3 mm jack |
| Master output | 100 mV, 2 x 6.3 mm jack |
| Frequency range | 20-20,000 Hz |
| THD | < 0.4% |
| S/N ratio | 55 dB |
| Power supply | 9 V battery or
via optional power supply PSS-600E |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 150 x 68 x 115 mm |
| Width | 150 mm |
| Height | 68 mm |
| Depth | 115 mm |
| Weight | 550 g |
| Packaging dimensions (W x H x L) | 0.12 x 0.085 x 0.16 m |
| Gross weight | 0.643 kg |
| Net weight | 0.551 kg |
