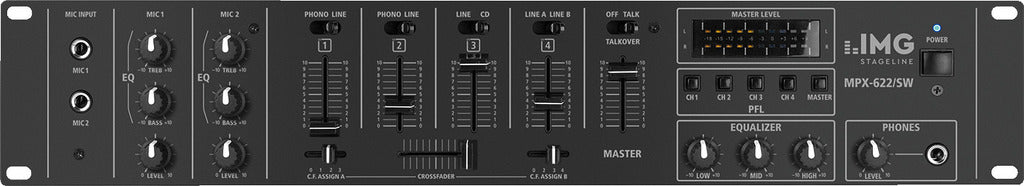

The IMG STAGELINE MPX-622/SW is a professional 6-channel stereo audio mixer, perfectly suited for PA (Public Address) and DJ applications in clubs, discos, and events. Designed for a seamless mixing experience, this 2U 19-inch rack-mountable unit delivers robust features and reliable performance.

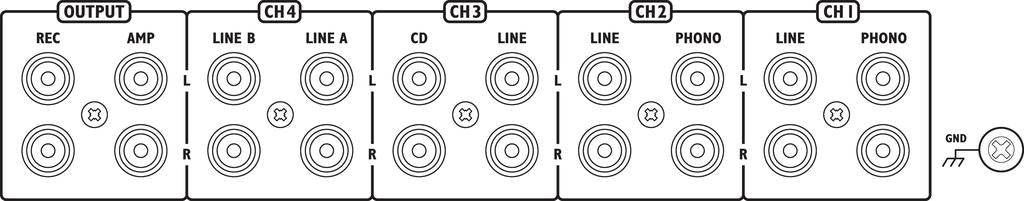

Versatile Inputs: Features 6 channels and 8 inputs in total, including:
2 Mono Microphone Channels (6.3 mm jacks) with a Talkover switch for announcements and a 2-way tone control.
4 Stereo Input Channels, offering flexible switching:
Channels 1 & 2: Switchable between Phono/Line for connecting turntables and other devices.
Channels 3 & 4: Switchable between Line/Line.
Precision Control:
3-Way Equalizer (Bass, Midrange, Treble) with a centre click for the Master and Record outputs, allowing you to fine-tune your overall sound.
Switchable Crossfader for smooth transitions between channels 1-4, with any assignment possible.
Monitoring & Output:
PFL (Pre-Fader Listening): Monitor each stereo input channel and the master output through the adjustable stereo headphone output.
Dedicated Outputs: Includes a stereo Master Output and an independent stereo Record Output for connecting an external recorder without affecting the main mix volume.
Stereo LED Level Display provides clear visual monitoring of your output signal.
Whether you're mixing music at a high-energy event or controlling sound for a public address system, the MPX-622/SW offers the connectivity and controls you need in a compact, reliable package.
| MPX-622/SW | |
|---|---|
| No. of channels | 6 |
| No. of inputs | 8 |
| Mic input | 1 mV, 2 x 6.3 mm jack |
| Line input | 150 mV, 5 x RCA L/R |
| CD input | 150 mV, 1 x RCA L/R |
| Phono input | 3 mV, 2 x RCA L/R |
| Master output | 0.775 V/600 Ω, 1 x RCA L/R |
| Record output | 0.775 V/600 Ω, 1 x RCA L/R |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| Frequency range | 20-20,000 Hz |
| THD | 0.1% |
| S/N ratio | 65 dB |
| Equalizer bass | ±10 dB/100 Hz |
| Equalizer midrange | ±10 dB/1 kHz |
| Equalizer treble | ±10 dB/10 kHz |
| Talkover | -15 dB |
| Crossfader | yes |
| Power supply | ˜ 230 V/50 Hz/10 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 10 VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482 x 89 x 95 mm, 2 RS |
| Width | 482 mm |
| Height | 89 mm |
| Depth | 95 mm |
| Rack units, RU | 2 |
| Weight | 2.4 kg |
| Packaging dimensions (W x H x L) | 0.12 x 0.155 x 0.56 m |
| Gross weight | 3.18 kg |
| Net weight | 2.47 kg |
