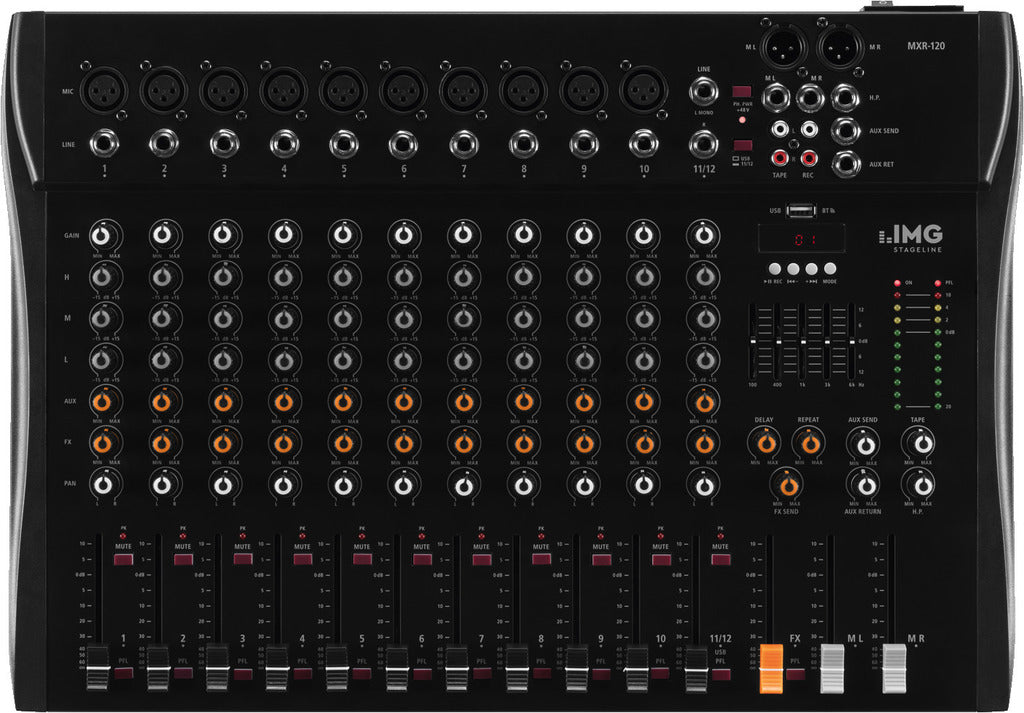

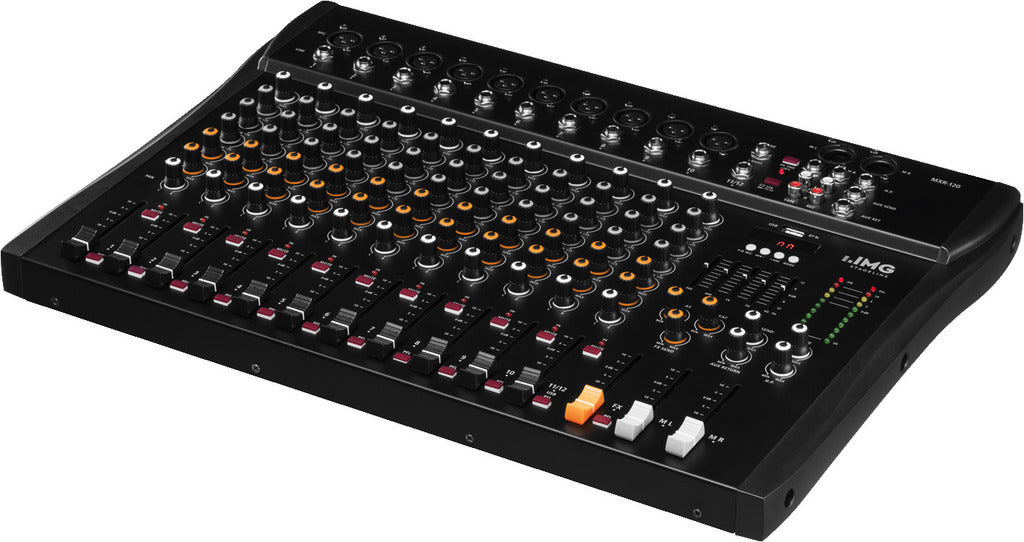

🎶 IMG STAGELINE MXR-120: The Versatile 12-Channel Mixer 🎤
The IMG STAGELINE MXR-120 is a powerful and versatile 12-channel audio mixer that seamlessly bridges the gap between traditional analog mixing and modern digital connectivity. Perfect for small bands, home studios, event PA systems, and club DJs, this mixer offers a comprehensive feature set for mixing, recording, and playback.
Â
Â
Integrated Digital Hub: Features a built-in MP3 player and Bluetooth receiver for hassle-free music playback and background audio streaming.
Full-Duplex USB Audio Interface: Connect directly to your PC via the integrated USB port, which acts as an external sound card, allowing for simultaneous recording of your mix and reproduction of digital audio from your computer.
Ample Inputs: Take control with 12 input channels including:
10 Mono Input Channels (XLR for mics, $6.3 \text{ mm}$ jack for line) with gain control, 3-way equalizer, and pan pot.
1 Stereo Input Channel ($6.3 \text{ mm}$ jack L/R) with 3-way equalizer and balance control.
Professional Tone Shaping: Fine-tune your overall sound with the 5-band stereo graphic equalizer on the master output.
Enhanced Effects: Add depth and dimension with the adjustable DSP delay effect.
Pro-Grade Functionality:
+48 V Phantom Power (can be activated) for professional condenser microphones.
Pre-fader listening (PFL) to stereo channels via the adjustable headphone output for precise cueing.
Adjustable Aux Return input and FX Send output.
Dedicated Tape record/play connections (RCA L/R).
Whether you're mixing a live performance, laying down tracks in a home studio, or providing event audio, the MXR-120 gives you the flexibility and control you need in one compact, reliable unit.
| MXR-120 | |
|---|---|
| Input channels | 12 |
| Number of mix/mono | 10 |
| No. of stereo | 1 |
| Mic input | 2.2 mV, bal. 10 x XLR |
| Line input | 50 mV (stereo), 1 x 6.3Â mm jack L/R
30 mV (mono), 10 x 6.3Â mm jack |
| Tape (play) | 290Â mV, 1 x RCA L/R |
| Aux input | 420 mV, 1 x 6.3Â mm jack L/R |
| Master output | 880 mV, bal. 1 x XLR L/R
880 mV, 1 x 6.3Â mm jack L/R |
| Effect send | 9Â V, 1 x 6.3Â mm jack |
| Tape (rec) | 400 mV, 1 x RCA L/R |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| USB | yes |
| Bluetooth | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.03% |
| S/N ratio | > 82 dB(A) |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer midrange | ±15 dB/2.5 kHz |
| Equalizer treble | ±15 dB/12 kHz |
| equalizer | 5-band equalizer |
| Phantom power | +48 V |
| Power supply | ˜ 230 V/50 Hz/30 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 30 VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 498 x 53 x 340 mm |
| Width | 498 mm |
| Height | 53 mm |
| Depth | 340 mm |
| Weight | 4.4 kg |
| Packaging dimensions (W x H x L) | 0.55 x 0.41 x 0.095 m |
| Gross weight | 4.94 kg |
| Net weight | 4.41 kg |
