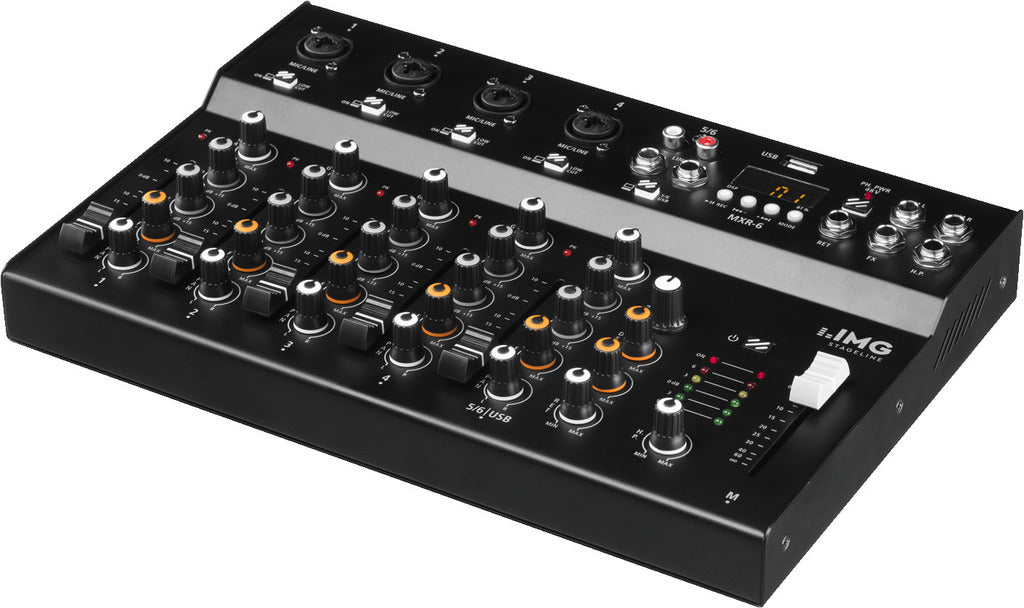

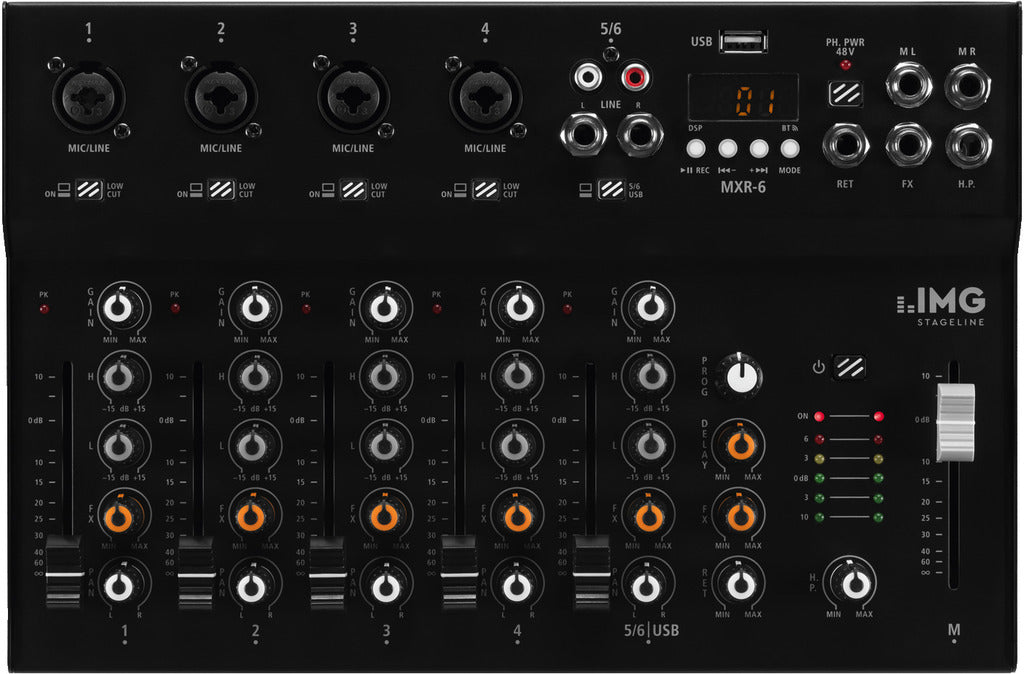

IMG STAGELINE MXR-6: 6-Channel Analogue Mixer with USB Audio Interface and Bluetooth
The IMG STAGELINE MXR-6 is a compact, versatile 6-channel audio mixer that combines traditional analogue control with modern digital connectivity. Featuring an integrated DSP effect unit, MP3 player, and Bluetooth receiver, the MXR-6 is an ideal solution for home studios, small live acts, streaming, and content creation.
Key Features:
Integrated USB Audio Interface: Features a full-duplex USB port that allows the mixer to be identified as an external sound card. This enables simultaneous recording of the mix onto a PC and reproduction of digital audio data from the PC.
6-Channel Configuration: Provides flexible input options with 4 mono channels and 2 stereo input channels.
Built-in Media Player: Easily stream audio wirelessly via the integrated Bluetooth receiver or playback files directly using the integrated MP3 player via the USB port.
Digital Signal Processing (DSP): Includes a DSP effect unit with 16 adjustable delay effects to enhance vocals and instruments.
Comprehensive Channel Control:
Mono channels include gain control, a 2-way equalizer, and pan pot.
Stereo channels include a 2-way equalizer and balance control.
Professional Connectivity: Features switchable +48 V phantom power for condenser microphones.
Flexible Routing: Includes an adjustable aux return input and an FX send output for connecting external gear.
Monitoring & Metering: Features an adjustable headphone output and a stereo LED level display for precise monitoring.
Power Options: Power is supplied via USB or the enclosed power supply.
Technical Specifications:
| Feature | Specification |
| Input Channels | 6 (4 mono, 2 stereo) |
| Mic Input | 4 x XLR (balanced, 2 mV) |
| Line Input | 2 x 6.3 mm jack L/R (stereo, 100 mV); 2 x 6.3 mm jack (mono, 60 mV) |
| Aux Input | 1 x 6.3 mm jack L/R (400 mV) |
| Master Output | 1 x 6.3 mm jack L/R (500 mV) |
| Effect Send | 1 x 6.3 mm jack (4.4 V) |
| Headphones | 1 x 6.3 mm jack (≥ 8 Ω) |
| USB/Bluetooth | Yes (Integrated MP3 player and audio interface) |
| Frequency Range | 20–20,000 Hz |
| THD | < 0.03% |
| S/N Ratio | > 83 dB(A) |
| Equalizer | Bass: ±15 dB/80 Hz; Treble: ±15 dB/12 kHz |
| Phantom Power | +48 V |
| Dimensions (W x H x D) | 308 x 53 x 205 mm |
| Weight | 1.9 kg |
