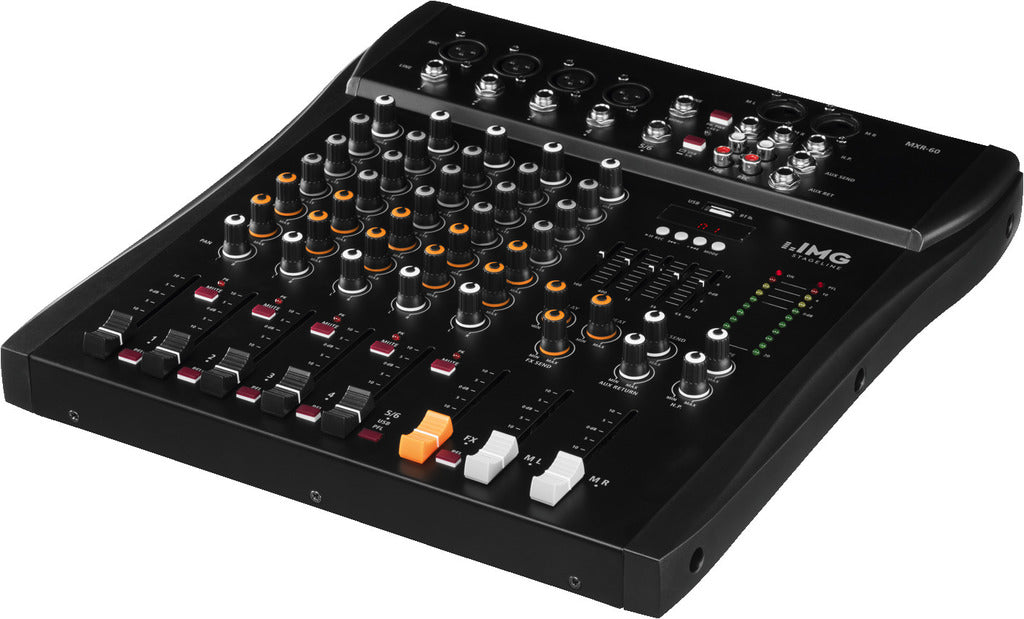

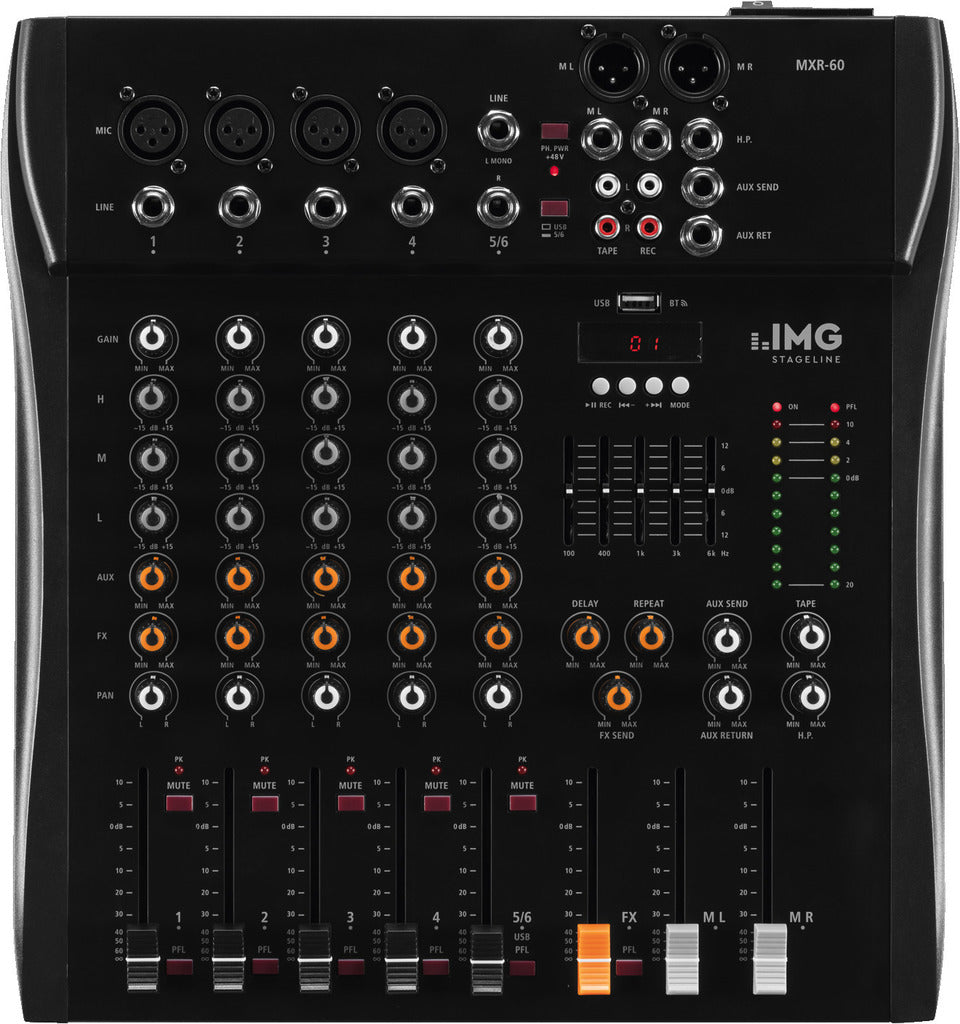

The IMG STAGELINE MXR-60 is a compact yet feature-packed 6-channel audio mixer designed for live sound, studio recording, and multi-media applications. Combining professional mixing capabilities with modern digital connectivity, the MXR-60 is your all-in-one solution for pristine audio control.
Integrated Digital Media Player: Play back audio directly from a USB stick using the built-in MP3 player.
Wireless Streaming: Connect your smartphone or tablet effortlessly with the integrated Bluetooth receiver for wireless music playback.
Full-Duplex USB Audio Interface: Easily connect the mixer to your PC. The full-duplex USB port functions as an external sound card, allowing for simultaneous recording of the mix onto your computer and playback of digital audio from the PC.
Flexible Channel Control:
4 Mono Input Channels (XLR/6.3 mm jack) with gain control, 3-way equalizer, and pan pot.
1 Stereo Input Channel (6.3 mm jack L/R) with 3-way equalizer and balance control.
Professional Power: Selectable +48 V phantom power for connecting condenser microphones.
Precision Sound Shaping: Fine-tune your overall mix with the 5-band stereo graphic equalizer.
Adjustable Effects: Utilize the built-in DSP delay effect with adjustable parameters for adding depth and polish to your sound.
Monitoring & Connectivity:
Pre-fader listening (PFL) function via an adjustable headphone output.
Adjustable Aux return input and FX send output.
Tape record/play connections (RCA) for connecting external recorders.
Stereo LED level display for visual monitoring.
The MXR-60 provides exceptional performance and a highly versatile feature set in a lightweight (2.9 kg) and road-ready design. Whether you're a performing musician, a podcaster, or a sound engineer, this mixer gives you ultimate control right at your fingertips.
| MXR-60 | |
|---|---|
| Input channels | 6 |
| Number of mix/mono | 4 |
| No. of stereo | 1 |
| Mic input | 2.2 mV, bal. 4 x XLR |
| Line input | 50 mV (stereo), 1 x 6.3 mm jack L/R
30 mV (mono), 4 x 6.3 mm jack |
| Tape (play) | 290 mV, 1 x RCA L/R |
| Aux input | 420 mV, 1 x 6.3 mm jack L/R |
| Master output | 880 mV, bal. 1 x XLR L/R
880 mV, 1 x 6.3 mm jack L/R |
| Effect send | 9 V, 1 x 6.3 mm jack |
| Tape (rec) | 400 mV, 1 x RCA L/R |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| USB | yes |
| Bluetooth | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.03% |
| S/N ratio | > 82 dB(A) |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer midrange | ±15 dB/2.5 kHz |
| Equalizer treble | ±15 dB/12 kHz |
| equalizer | 5-band equalizer |
| Phantom power | +48 V |
| Power supply | ˜ 230 V/50 Hz/20 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 20 VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 324 x 53 x 340 mm |
| Width | 324 mm |
| Height | 53 mm |
| Depth | 340 mm |
| Weight | 2.9 kg |
| Packaging dimensions (W x H x L) | 0.37 x 0.405 x 0.09 m |
| Gross weight | 3.51 kg |
| Net weight | 2.9 kg |
