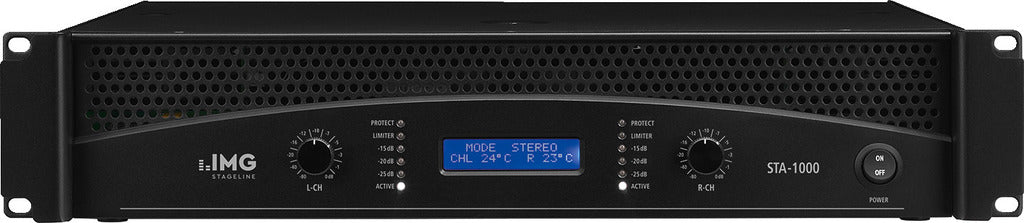

Professional stereo PA amplifier, with integrated crossover network and limiter.
* LCD for indicating temperature, operating mode, protective function
* Integrated crossover network: 120 Hz, 24 dB/oct., selectable: subwoofer, full range or satellite operation
* 3 operating modes can be selected (stereo, parallel or bridged)
* Temperature-controlled fans
* 2 level controls
* Ground lift function
* Speaker switch-on delay
* Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
* Each channel with LEDs for indicating operating voltage, level and limiter
* NEUTRIK SPEAKON connections
Peak output power: 1,600 W
Power rating: 1,000 W
Power rating at 4 Ω: 2 x 500 W
Power rating at 8 Ω: 2 x 350 W
Power rating with 8 Ω bridged operation: 1 x 1,000 W
Channels: 2
Inputs: 1 V/20 kΩ
Frequency range: 20-20,000 Hz
Crossover network: 24 dB/oct.
Crossover frequency: 120 Hz
Integrated limiter: yes
S/N ratio: > 95 dB
Crosstalk attenuation: > 60 dB
THD: < 0.1%
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 1,600 VA
Admiss. ambient temp.: 0-40 °C
Width: 482 mm
Height: 88 mm
Depth: 481 mm
Rack units, RU: 2
Weight: 15 kg
Connections: 1 x 3-pole XLR L/R, bal. , 1 x 6.3 mm jack L/R, bal., 1 x NEUTRIK SPEAKON L/R, 2 x pair of screw terminals
Packing dimensions (W x H x L): 0.57 x 0.16 x 0.58 m
Gross weight: 17.5 kg
Net weight: 15.04 kg
