IMG STAGELINE ULM-164/SW Universal 6 Channel Line Mixer

IMG STAGELINE ULM-164/SW Universal 6 Channel Line Mixer

RRP

ÂŁ236.68

inc VAT

ÂŁ236.68
Sold out
Tax included. Shipping calculated at checkout.
🎛️ IMG STAGELINE ULM-164/SW Universal Line Mixer   The IMG STAGELINE ULM-164/SW is a versatile and compact universal line mixer, perfectly suited for permanent installations, PA applications, and fixed setups...
Vendor: IMG STAGELINE
SKU: ULM-164/SW

Product Specification

Access Manufacturer's website for detailed product specifications and documents.

Want to see trade pricing? Register for a trade account!

You can apply for a trade account with us by either;

1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.

2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.

Project Enquiry

We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.

Get in touch today to discuss your requirements!

View full product details

🎛️ IMG STAGELINE ULM-164/SW Universal Line Mixer

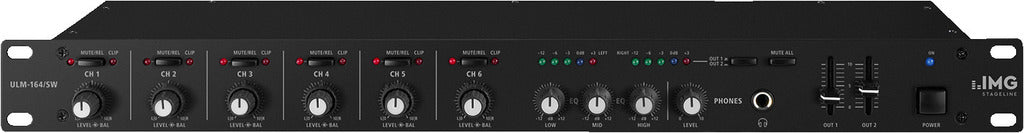

The IMG STAGELINE ULM-164/SW is a versatile and compact universal line mixer, perfectly suited for permanent installations, PA applications, and fixed setups where space is at a premium. Occupying just 1 Rack Unit (1 RU), this mixer packs a powerful array of features into its 19" rack-mountable chassis.



✨ Key Features

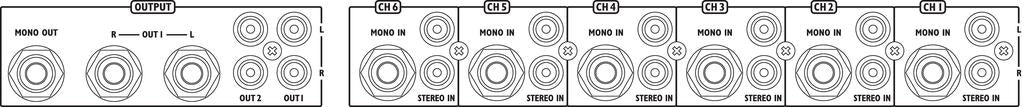

  • High Input Count: Features 6 stereo inputs (via RCA) which can also be used as 6 mono inputs (via unbalanced 6.3 mm jack), giving you a total of 12 line-level inputs for sources like CD players, tuners, effect units, and more.

  • Dual Independent Outputs: Equipped with 2 independent stereo master outputs (Master 1 via RCA and 6.3 mm jack) and 1 mono output (via 6.3 mm jack), providing exceptional routing flexibility for feeding different zones or recorders simultaneously.

  • Comprehensive Tone Control: Shape your sound with the integrated 3-way equalizer (Bass, Midrange, Treble) for the master channels.

  • Visual Feedback: Monitor your signal levels accurately with an LED VU meter, switchable to display the level for either of the two master outputs. A Clip LED is also provided for each channel for quick overload detection.

  • Precision Control: Each stereo input channel includes a Balance control with a center click for precise stereo field positioning.

  • Monitoring and Muting: Features an adjustable headphone output for private monitoring and an extended muting function for quick signal cuts.

Technical specifications ULM-164/SW

ULM-164/SW
No. of channels 6
No. of inputs 12
Line input 150 mV/50 kΩ (stereo), 6 x RCA L/R

150 mV/25 kΩ (mono), 6 x 6.3 mm jack, unbal.
Master output 1 V/600 Ω (stereo), 2 x RCA (1 x 6.3 mm) L/R

2 V/600 Ω (mono), 1 x 6.3 mm jack
Headphones ≥ 8 Ω, 1 x 6.3 mm jack
Frequency range 20-20,000 Hz
THD 0.05%
S/N ratio 69 dB, unweighted
Equalizer bass ±12 dB/80 Hz
Equalizer midrange ±12 dB/1 kHz
Equalizer treble ±12 dB/10 kHz
Power supply ˜ 230 V/50 Hz/10 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 10 VA
Admiss. ambient temp. 0-40 °C
Dimensions 482 x 48 x 175 mm, 1 RS
Width 482 mm
Height 48 mm
Depth 175 mm
Rack units, RU 1
Weight 2.3 kg
Packaging dimensions (W x H x L) 0.18 x 0.047 x 0.482 m
Gross weight 3.035 kg
Net weight 2.32 kg
