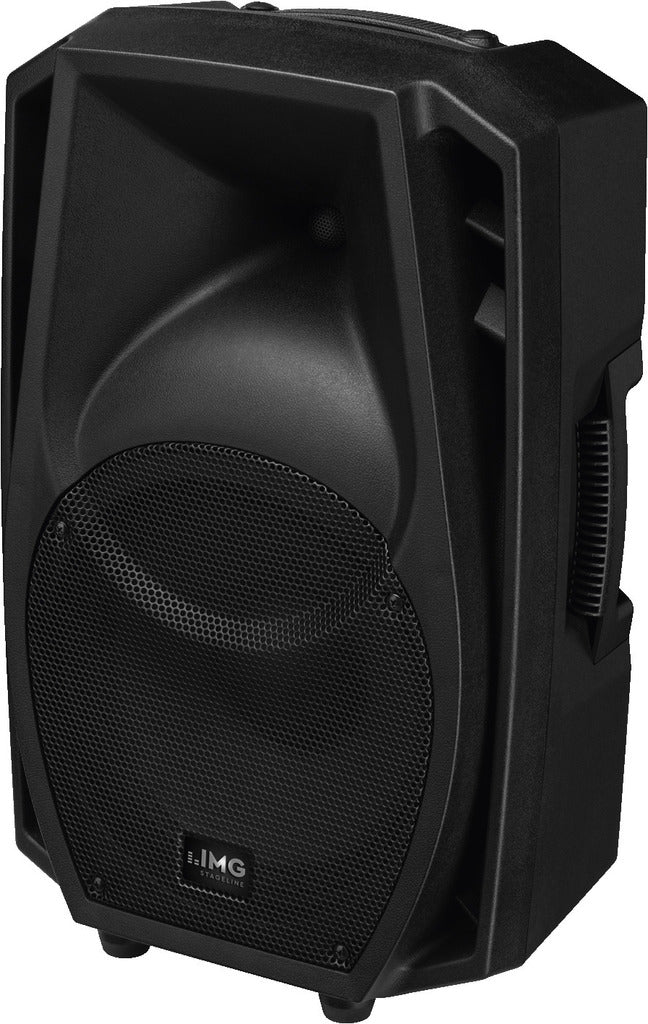

🔊 IMG STAGELINE WAVE-10P Passive PA Speaker System: Pure Entertainment for Mobile Applications
The WAVE-10P is part of the IMG STAGELINE WAVE series, designed to deliver great sound at an attractive price. It is the ideal starting equipment for entry-level DJs and is perfectly suited for sound reinforcement in smaller to medium-sized function rooms.
Â
Â
Powerful Passive System: 300 W total power rating 150 W RMS at 8 ohms impedance.
Full Range Bass-Reflex Design: Features a full-range bass-reflex system for clear, balanced sound across a 60 - 20,000 Hz frequency range.
Quality Components: Equipped with a 25 cm (10") bass speaker featuring a robust steel basket and a 25 mm (1") horn tweeter with PTC tweeter protection.
High Portability: The robust plastic cabinet boasts a contemporary design and is lightweight 7.5kg and easy to handle, making it ideally suited for mobile applications.
Easy Setup & Mounting:
Stand Sleeve for easy tripod mounting.
M8 threaded inserts (top and bottom) for fixed installation or mounting support.
2 x SPEAKER jack (in/out) for connection and parallel output.
High Performance: Capable of delivering a Max. rated SPL of 117dB.
Whether you're setting up for a gig, a small party, or need an affordable, reliable PA speaker, the WAVE-10P offers excellent value and performance in a compact, durable package.
| WAVE-10P | |
|---|---|
| Active/passive | passive |
| Transmission technology | cable |
| Total power rating | 300 W |
| Power rating (RMS) | 150 W |
| Impedance | 8 Ω |
| Frequency range | 60-20,000 Hz |
| System | 10/2 full range bass-reflex |
| Bass speaker | 25 cm (10") bass speaker |
| Tweeter | 25 mm (1") horn tweeter |
| Number of speakers | 2 |
| Speaker size | 25 cm (10") |
| SPL | 95 dB/W/m |
| Max. rated SPL | 117 dB |
| Radiation angle/beam angle | H: 90°/V: 60° |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 60° |
| Housing material | plastic |
| Colour | black |
| Mounting device | M8 threaded inserts, stand sleeve |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 300 x 510 x 210Â mm |
| Width | 300 mm |
| Height | 510 mm |
| Depth | 250 mm |
| Weight | 7.5 kg |
| Inputs | 1 x SPEAKER |
| Outputs | 1 x SPEAKER, par. out |
| Packaging dimensions (W x H x L) | 0.31 x 0.35 x 0.565 m |
| Gross weight | 8.43 kg |
| Net weight | 7.54 kg |
