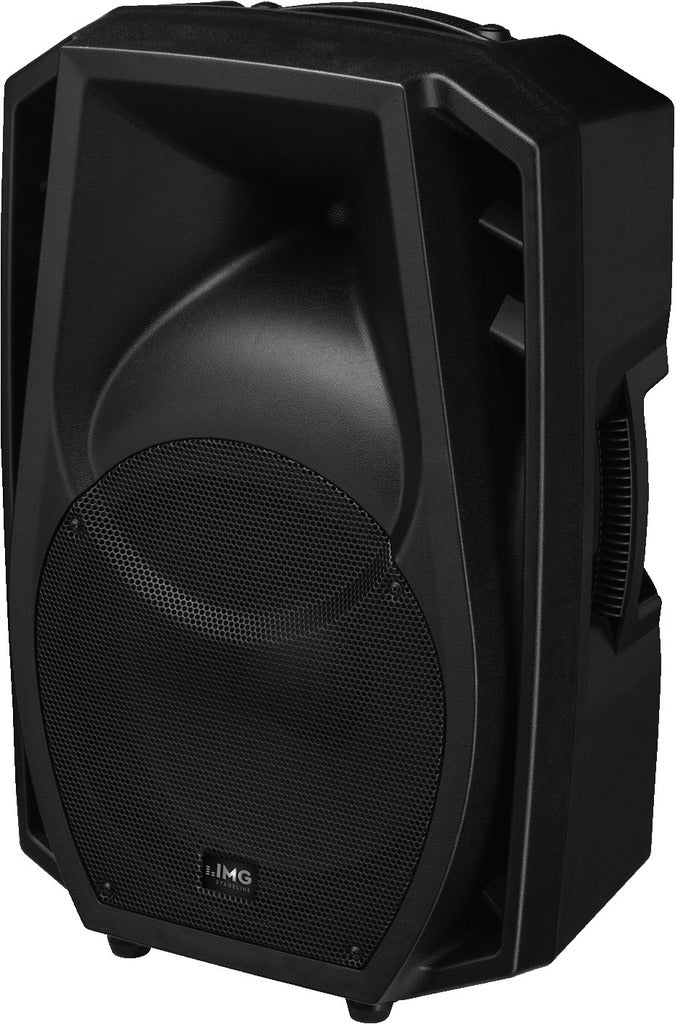

🎶 IMG STAGELINE WAVE-12P Passive Full-Range Speaker System: Pure Entertainment for Mobile PA
The IMG STAGELINE WAVE-12P delivers great sound at an attractive price, making it the ideal starting point for entry-level DJs and perfect for sound reinforcement in smaller to medium-sized function rooms.
Part of the popular WAVE series, this passive full-range speaker system combines powerful performance with exceptional portability. The modern, robust plastic cabinet is lightweight and easy to handle, making it perfectly suited for frequent mobile use.
Â
Â
Powerful Sound: Experience the full audio spectrum with a 400 W maximum power rating (200 W RMS) and a frequency range of 55-20,000 Hz.
12/2 Full-Range Bass-Reflex System: Features a 30 cm (12") bass speaker with a durable steel basket and a 25 mm (1") horn tweeter.
High Max. SPL: Delivers a maximum rated sound pressure level of 118 dB, ensuring your music or message cuts through the noise.
Reliable Protection: Includes a PTC tweeter protection element for safeguarding the high-frequency driver against overload.
Optimized Dispersion: A precise radiation angle of $\text{H: 90}^\circ / \text{V: 60}^\circ$ ensures wide and even coverage across the venue.
Â
Â
The WAVE-12P is built for quick setup and flexible installation, whether you're performing a mobile gig or installing the system permanently.

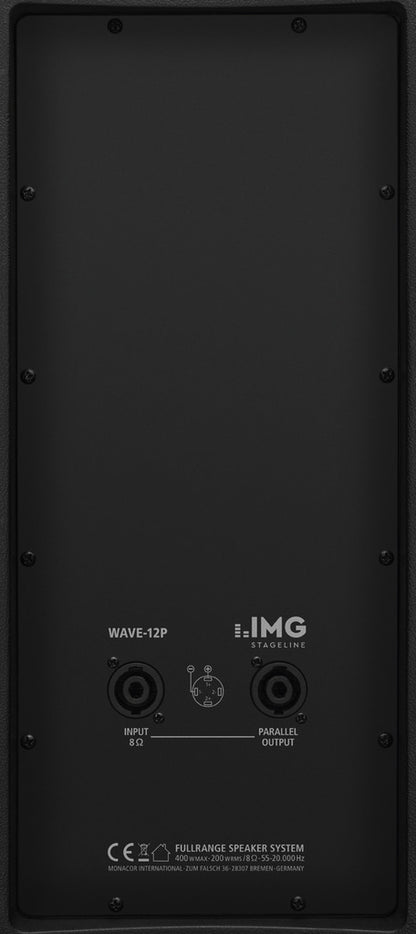

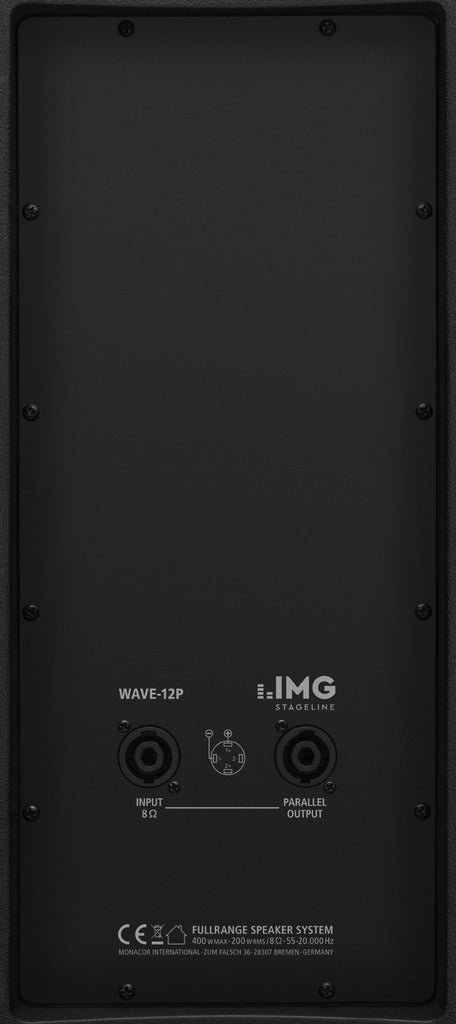

Connectivity: Equipped with 2 x SPEAKER jacks (In/Out) for easy connection and parallel output to additional speakers.
Mounting Options: Features a stand sleeve for pole mounting and M8 threaded inserts at the top and bottom for suspended installation.
Durable Build: Housed in a sturdy, black plastic cabinet designed to withstand the rigors of transport and live events.
Lightweight: Weighing just 13.6 kg, it's one of the easiest speakers in its class to transport.
The IMG STAGELINE WAVE-12P is your reliable, high-value solution for mobile PA and fixed installations where budget, quality, and portability are essential.
| WAVE-12P | |
|---|---|
| Active/passive | passive |
| Transmission technology | cable |
| Total power rating | 400 W |
| Power rating (RMS) | 200 W |
| Impedance | 8 Ω |
| Frequency range | 55-20,000 Hz |
| System | 12/2 full range bass-reflex |
| Bass speaker | 30 cm (12") bass speaker |
| Tweeter | 25 mm (1") horn tweeter |
| Number of speakers | 2 |
| Speaker size | 30 cm (12") |
| SPL | 95 dB/W/m |
| Max. rated SPL | 118 dB |
| Radiation angle/beam angle | H: 90°/V: 60° |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 60° |
| Housing material | plastic |
| Colour | black |
| Mounting device | M8 threaded inserts, stand sleeve |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 390 x 610 x 340Â mm |
| Width | 390 mm |
| Height | 610 mm |
| Depth | 340 mm |
| Weight | 13.6 kg |
| Inputs | 1 x SPEAKER |
| Outputs | 1 x SPEAKER, par. out |
| Packaging dimensions (W x H x L) | 0.405 x 0.43 x 0.66 m |
| Gross weight | 15.03 kg |
| Net weight | 13.63 kg |
