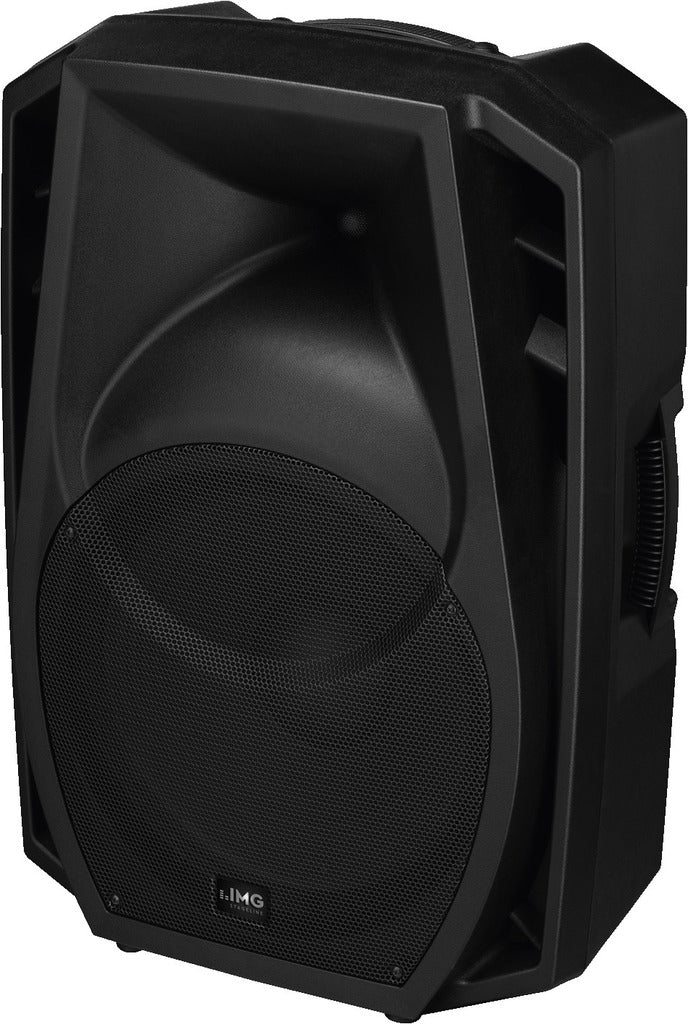

Pure Entertainment, Unbeatable Value. The IMG STAGELINE WAVE-15P delivers a great sound at an attractive price, making it the ideal starting point for entry-level DJs and perfect for sound reinforcement in smaller to medium-sized function rooms.
This passive full-range bass-reflex speaker combines performance with portability, ensuring reliable audio wherever your event takes you.
Â
Â
Powerful Performance: A passive full-range system with a 500 W total power rating (250 W RMS) at 8 ohms impedance.
Quality Components: Equipped with a 38 cm (15") bass speaker featuring a robust steel basket, paired with a 25 mm (1") horn tweeter (34 mm voice coil diameter).
Mobile and Durable: The contemporary, robust plastic cabinet is lightweight (only 15.8 kg) and easy to handle, making it ideally suited for frequent mobile applications.
High Sound Pressure: Achieve a maximum rated SPL of 120 dB to cut through the noise.
Protection Built-in: Features a PTC tweeter protection element for component safety.
Flexible Setup: Includes a stand sleeve for pole mounting and M8 threaded inserts (top and bottom) for fixed installation.
Connection: Equipped with 2 x SPEAKER jacks (input/parallel out).
| WAVE-15P | |
|---|---|
| Active/passive | passive |
| Transmission technology | cable |
| Total power rating | 500 W |
| Power rating (RMS) | 250 W |
| Impedance | 8 Ω |
| Frequency range | 55-20,000 Hz |
| System | 15/2 full range bass-reflex |
| Bass speaker | 38 cm (15") bass speaker |
| Tweeter | 25 mm (1") horn tweeter |
| Number of speakers | 2 |
| Speaker size | 38 cm (15") |
| SPL | 96 dB/W/m |
| Max. rated SPL | 120 dB |
| Radiation angle/beam angle | H: 90°/V: 60° |
| Radiation angle, horizontal | 90° |
| Radiation angle, vertical | 60° |
| Housing material | plastic |
| Colour | black |
| Mounting device | M8 threaded inserts, stand sleeve |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 460 x 710 x 370Â mm |
| Width | 460 mm |
| Height | 710 mm |
| Depth | 370 mm |
| Weight | 15.8 kg |
| Inputs | 1 x SPEAKER |
| Outputs | 1 x SPEAKER, par. out |
| Packaging dimensions (W x H x L) | 0.43 x 0.51 x 0.755 m |
| Gross weight | 17.65 kg |
| Net weight | 1,538 kg |
