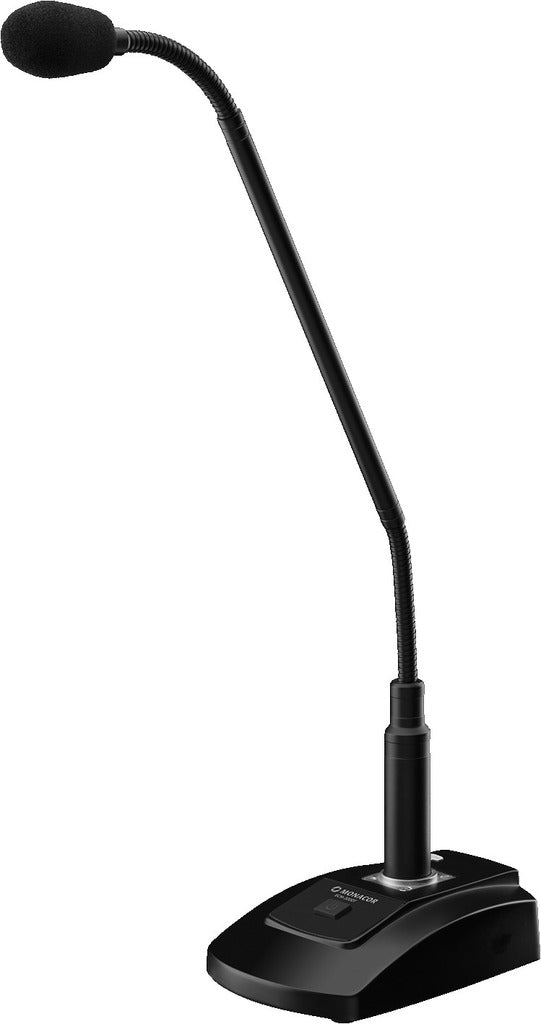

The MONACOR ECM-300DT is a high-performance, DanteĀ®-enabled desktop gooseneck microphone designed for seamless integration into modern Audio over IP (AoIP) networks. Perfect for fixed public address and announcement installations, this microphone delivers excellent, uncompressed digital voice transmission with virtually zero latency.
Ideal for shops, hotels, pubs, restaurants, schools, and indoor sports facilities, the ECM-300DT ensures clear and reliable communication wherever it is needed.
Ā
Ā
DanteĀ® Network Integration: Features an integrated DanteĀ® module, allowing direct connection to your AoIP network via an RJ45 jack.
Power over Ethernet (PoE): Simplifies installation with power and audio signal transmission over a single Ethernet cable. No need for an external power supply.
High-Quality Voice Pickup: Utilizes an electret system with a hypercardioid polar pattern, ensuring focused voice capture while minimizing ambient noise.
Flexible Operating Modes: The touch-sensitive microphone button offers four selectable modes for diverse applications:
PTM (Push-to-Mute)
PTT (Push-to-Talk)
On/Off
Off/On
Advanced Audio Control:
3-Step Attenuation: Switchable attenuation of -10/-20/-30 dB to handle high-volume signal sources.
Low-Cut Switch: An integrated low-cut filter helps remove unwanted low-frequency rumble for clearer sound.
High-Resolution Digital Audio: Supports encoding up to 32 bits and sampling rates up to 96 kHz for professional-grade audio.
| ECM-300DT | |
|---|---|
| Description | PA desktop microphone (push-to-talk) |
| Transmission method | DanteĀ®Ā network |
| Polar pattern | hypercardiod |
| System | electret |
| Audio frequency range | 50-16,000 Hz |
| Nominal impedance | 250 Ī© |
| Sensitivity | 10 mV/Pa |
| S/N ratio | 139 dB |
| Power supply | PoE |
| Gooseneck length | 310 mm |
| Admiss. ambient temp. | 0-40 Ā°C |
| Dimensions | 90 x 40 x 130 mm (console housing ) |
| Weight | 876 g |
| Connection | RJ45 |
| Packaging dimensions (W x H x L) | 0.21 x 0.065 x 0.485 m |
| Gross weight | 1.178 kg |
| Net weight | 0.876 kg |
