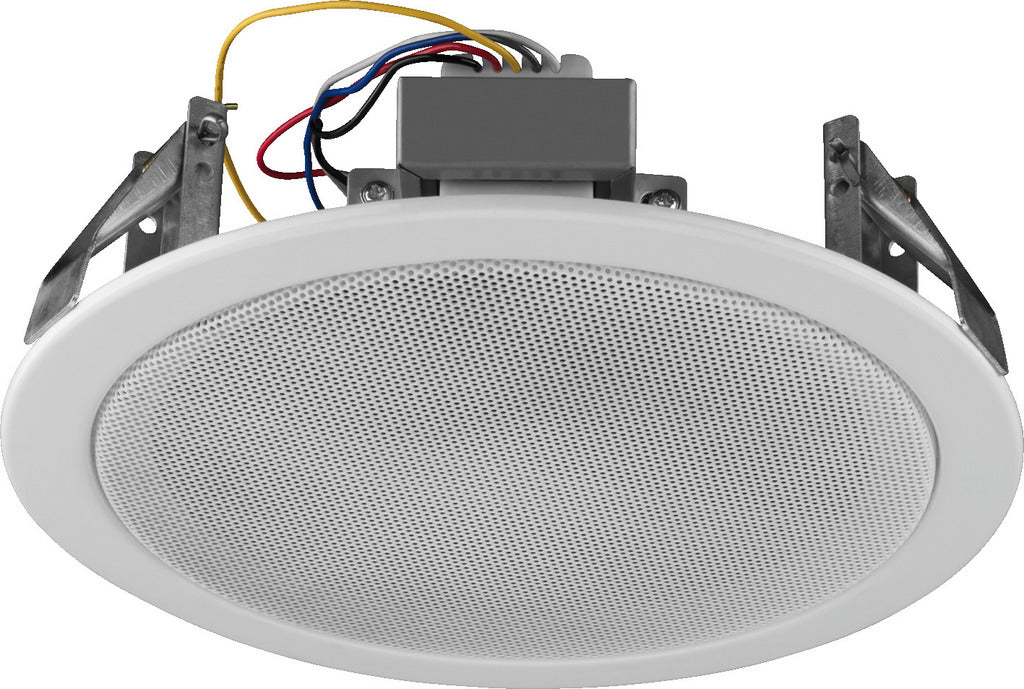

🔊 Monacor EDL-116TW PA Ceiling Speaker - Premium 100 V Audio
Experience excellent audio quality and seamless integration with the Monacor EDL-116TW PA ceiling speaker. Engineered for 100 V public address systems, this 2-way coaxial speaker is the ideal solution for high-quality speech and background music in commercial environments like offices, hotels, schools, and retail spaces.
Â
Â
Superior Sound: Features a 15 cm (6") 2-way coaxial speaker design, delivering a broad frequency range of 90–20,000 Hz for clear highs and robust lows.
100 V Technology: Designed for effortless integration into professional 100 V transmission lines.
Selectable Power Taps: Easily adjust the output power to suit your acoustic requirements with power taps of 10 W, 6 W, 3 W, and 1.5 W.
Durable Construction: Built with a metal housing and protective speaker grille for long-lasting performance and safety.
Fast Installation: The quick-mounting facility with spring clips ensures a simple and secure flush-mount installation in ceilings with a thickness from 10 to 40 mm.
Simple Connection: Features a spring-loaded terminal for reliable wiring.
| EDL-116TW | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 90-20,000 Hz |
| Power rating (RMS) | 10/6/3/1.5 W |
| SPL | 92 dB/W/m |
| Max. rated SPL | 102 dB |

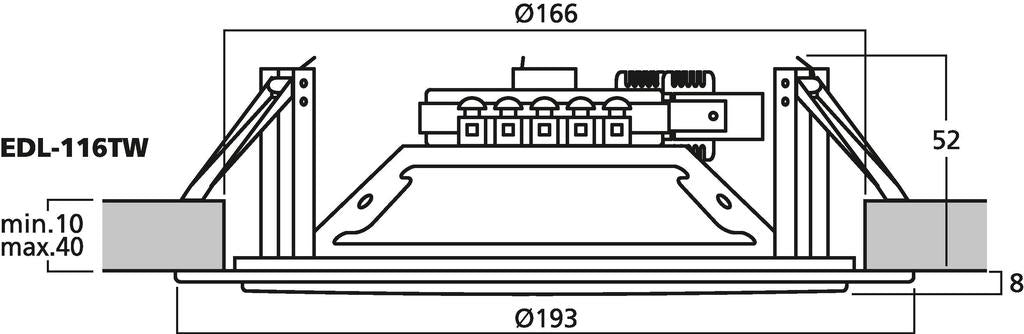

| Mounting cutout | Ø 166 mm |
| Mounting depth | 55 mm |
| Dimensions | Ø 195 mm x 55 mm |
| Outside diameter | Ø 195 mm |
| Width | Ø 195 mm |
| Height | Ø 195 mm |
| Depth | 55 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.82 kg |
| Packing unit | 1 |
| Type of speaker | 150 |
| Packaging dimensions (W x H x L) | 0.215 x 0.07 x 0.215 m |
| Gross weight | 0.918 kg |
| Net weight | 0.821 kg |
