RRP
Regular price £70.80inc VAT
Access Manufacturer's website for detailed product specifications and documents.
You can apply for a trade account with us by either;
1. Registering at our B2B Trade Portal - Our dedicated online trade portal gives you a seamless buying experience. See trade pricing, view stock availability, place orders and check your order status.
2. Completing a trade application form and returning via email to sales@epicaudio.co.uk.
We specialise in commercial projects offering a comprehensive commercial project service, collaborating with you to design, supply, and install solutions that meet your specifications, timeline, and budget.
Â

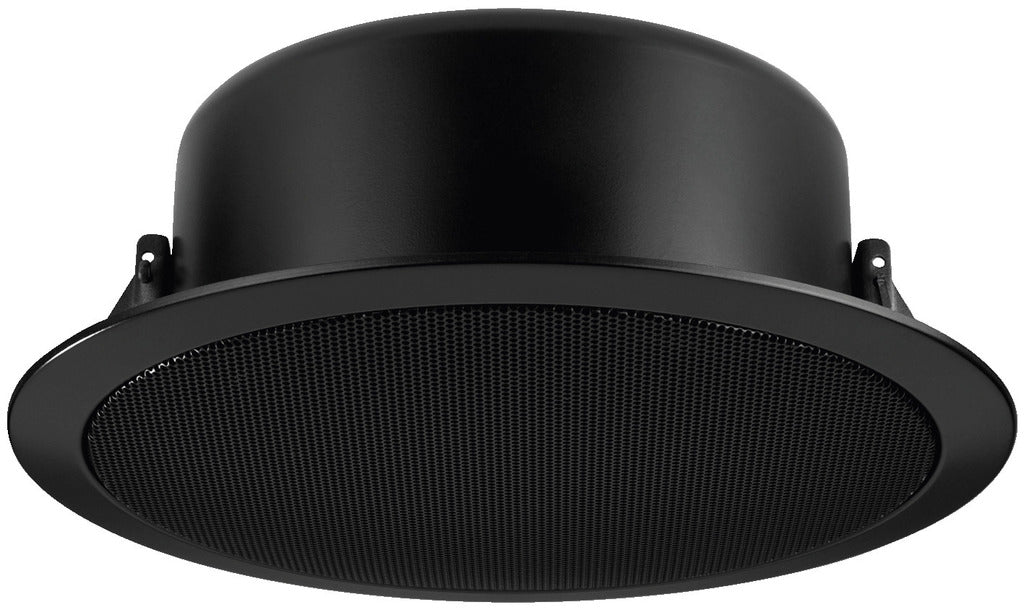

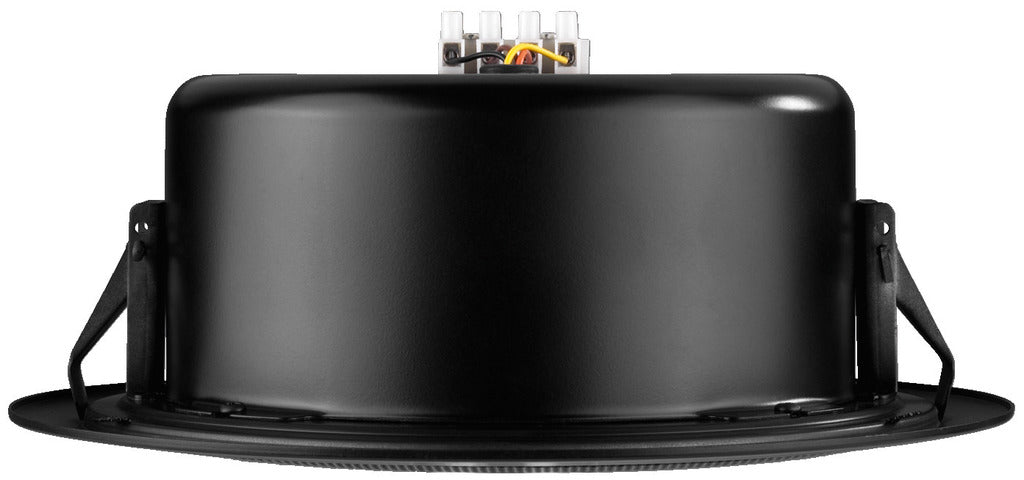

The MONACOR EDL-11TW/SW is a premium PA ceiling speaker designed for public address and background music systems utilizing 100 V line technology. With a sleek black metal housing and an integrated tweeter, it delivers clear, full-range audio performance from 60 to 20,000 Hz, perfect for commercial spaces, offices, or retail environments.
Â
Â
100 V Line Technology: Optimized for use in 100 V public address systems.
Enhanced Audio: Features an additional integrated tweeter for superior high-frequency reproduction, ensuring clear voice announcements and rich music playback.
Adjustable Power Tappings: Offers flexible power settings with RMS options of 10 W, 5 W, or 2.5 W.
High Safety: Includes a robust fire protection cover for an elevated safety level in permanent installations.
Quick & Easy Installation: Designed with a quick-mounting facility for hassle-free installation in ceilings with a thickness ranging from 3 mm to 20 mm.
Durable Design: Housed in a durable black metal enclosure.
| EDL-11TW/SW | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 60-20,000 Hz |
| Power rating (RMS) | 10/5/2.5 W |
| SPL | 97 dB/W/m |

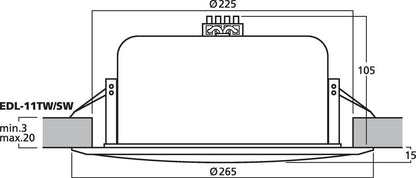

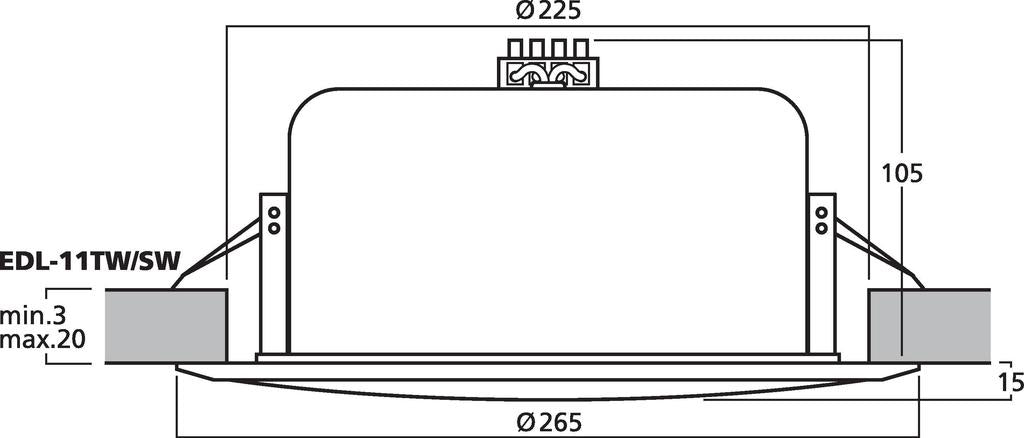

| Mounting cutout | Ø 225 mm |
| Mounting depth | 105 mm |
| Dimensions | Ø 264 mm x 120 mm |
| Outside diameter | Ø 264 mm |
| Width | Ø 264 mm |
| Height | Ø 264 mm |
| Depth | 120 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.6 kg |
| Packing unit | 1 |
| Type of speaker | 200 |
| Packaging dimensions (W x H x L) | 0.305 x 0.14 x 0.305 m |
| Gross weight | 2.148 kg |
| Net weight | 1.669 kg |
