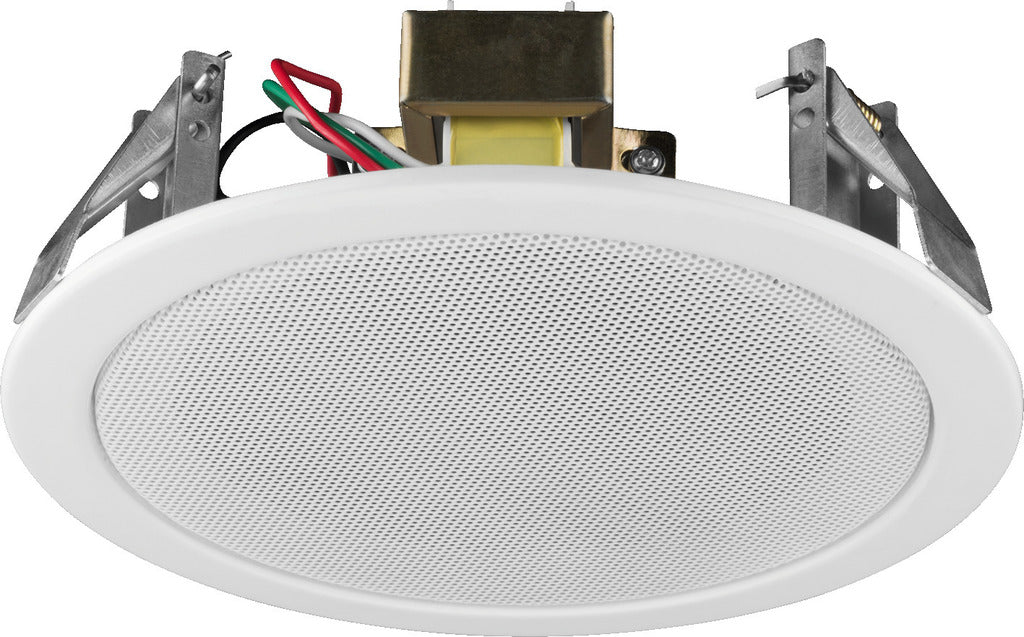

🔊 Monacor EDL-15: Reliable 100V PA Ceiling Speaker
The Monacor EDL-15 is a robust and discreet public address (PA) ceiling speaker, engineered for reliable background music and clear speech in commercial and institutional settings. Perfect for offices, retail stores, waiting rooms, and classrooms, this full-range speaker seamlessly integrates into any suspended or solid ceiling.
Â
Â
100 V Line Technology: Designed for long cable runs and connecting multiple speakers to a single amplifier, making it the standard choice for professional PA systems.
Selectable Power Taps: Easily adjust the volume and coverage for different zones with user-selectable power taps: 6 W, 3 W, or 1.5 W.
Full-Range Audio: Features a 13 cm (5") full-range speaker for intelligible speech and transparent background music, covering a frequency range of 100–16,000 Hz.
Durable Construction: Built with a sturdy metal housing and protective speaker grille for long-term reliability and protection against damage.
Quick & Easy Installation: The quick-mounting facility with spring clips and a spring-loaded terminal connection allows for fast, tool-free installation into ceilings with a thickness of 10 to 40 mm.
| EDL-15 | |
|---|---|
| Transmission technology | 100 V |
| Frequency range | 100-16,000 Hz |
| Power rating (RMS) | 6/3/1.5Â W |
| SPL | 92 dB/W/m |
| Max. rated SPL | 100 dB |

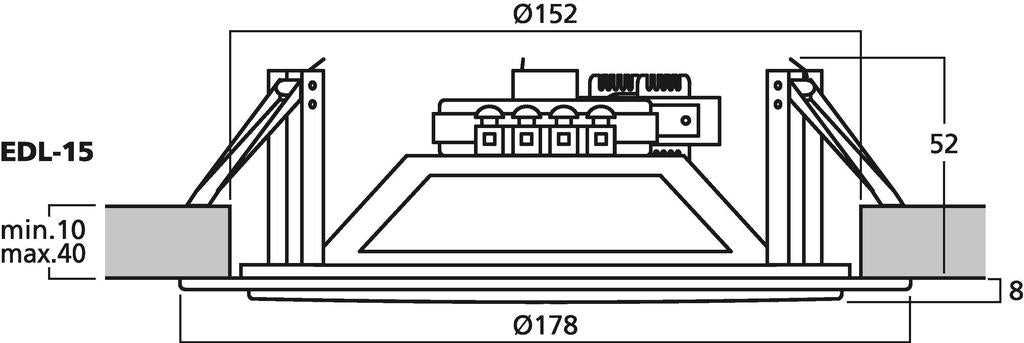

| Mounting cutout | Ø 152 mm |
| Mounting depth | 50 mm |
| Dimensions | Ø 182 mm x 50 mm |
| Outside diameter | Ø 182 mm |
| Width | Ø 182 mm |
| Height | Ø 182 mm |
| Depth | 50 mm |
| Colour | white |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.6 kg |
| Packing unit | 1 |
| Type of speaker | 130er |
| Packaging dimensions (W x H x L) | 0.215 x 0.07 x 0.2 m |
| Gross weight | 0.749 kg |
| Net weight | 0.663 kg |
