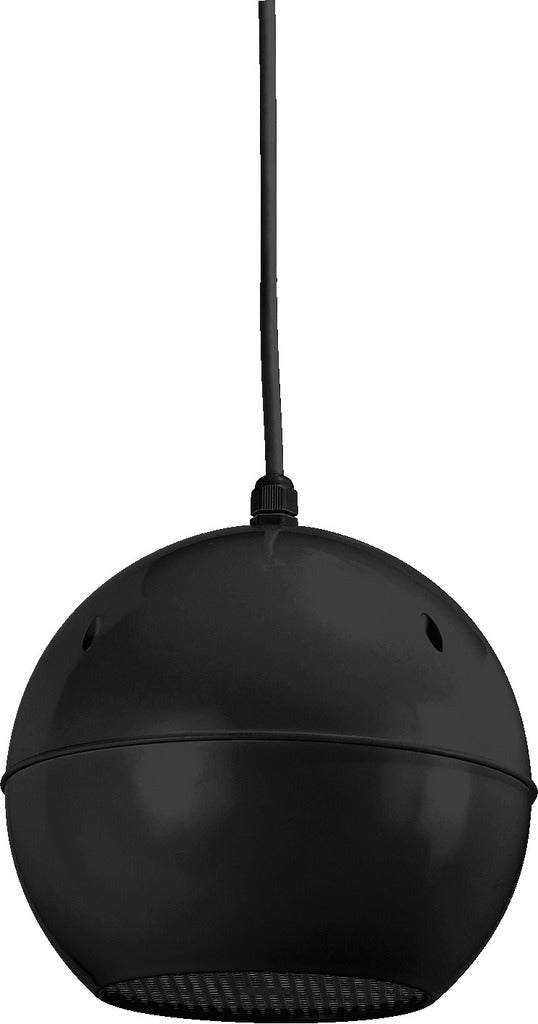

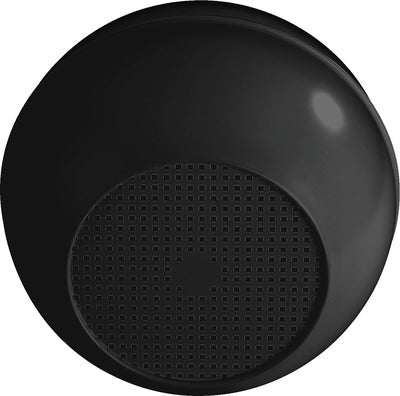

The MONACOR EDL-412/SW is a passive, full-range PA ball speaker designed for versatile indoor and outdoor sound reinforcement where resistance to environmental elements is required.
Weatherproof Design: Features an IP44 protection class and is designed to operate in temperatures ranging from -30 °C to +40 °C, making it suitable for protected outdoor areas.
Versatile Transmission Technology: Can be used with either 100 V transmission technology (with power taps at 10 W, 5 W, and 2.5 W) or in standard 8 Ω low-impedance operation.
Housing Material: Encased in black ABS housing that is self-extinguishing and complies with the UL 94V-0 flammability standard.

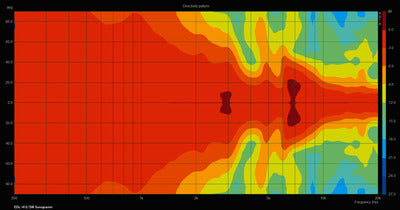

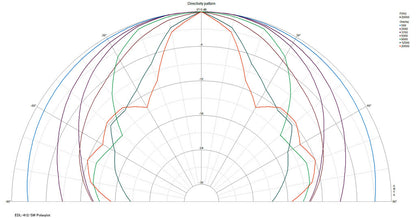

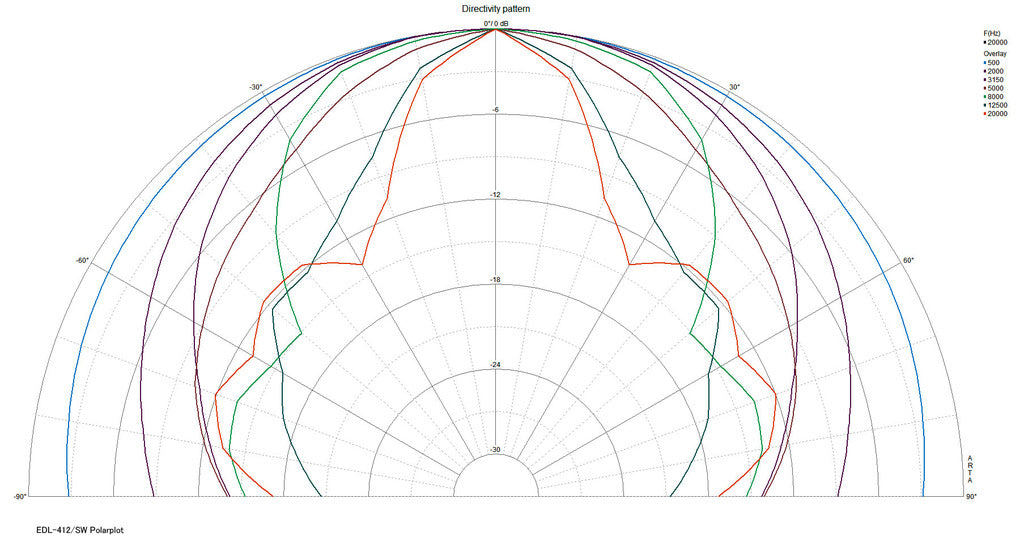

Omnidirectional Coverage: Features a wide, conical sound dispersion with a radiation angle of 100° (horizontal and vertical).
Easy Installation: Supplied with a 480 cm connection cable and a canopy for mounting/suspension.
| Feature | Specification |
| Speaker Type | Weatherproof PA Ball Speaker, Passive |
| Transmission Technology | 100 V or Low-impedance (8 Ω) |
| Full Range Speaker | 130 mm (5") |
| Total Power Rating | 10 W |
| Power Rating (RMS) | 10 W, 5 W, 2.5 W (100 V taps) |
| Nominal Impedance | 8 Ω |

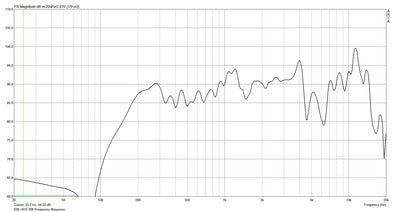

| Frequency Range | 160–20,000 Hz |
| SPL | 92 dB/W/m |
| Radiation Angle | 100° |
| Housing Material | ABS (UL 94V-0) |
| Protection Class | IP44 |
| Dimensions (Diameter) | Ø 184 mm |
| Weight | 1.65 kg |
| Connection | Cable connection with canopy |
